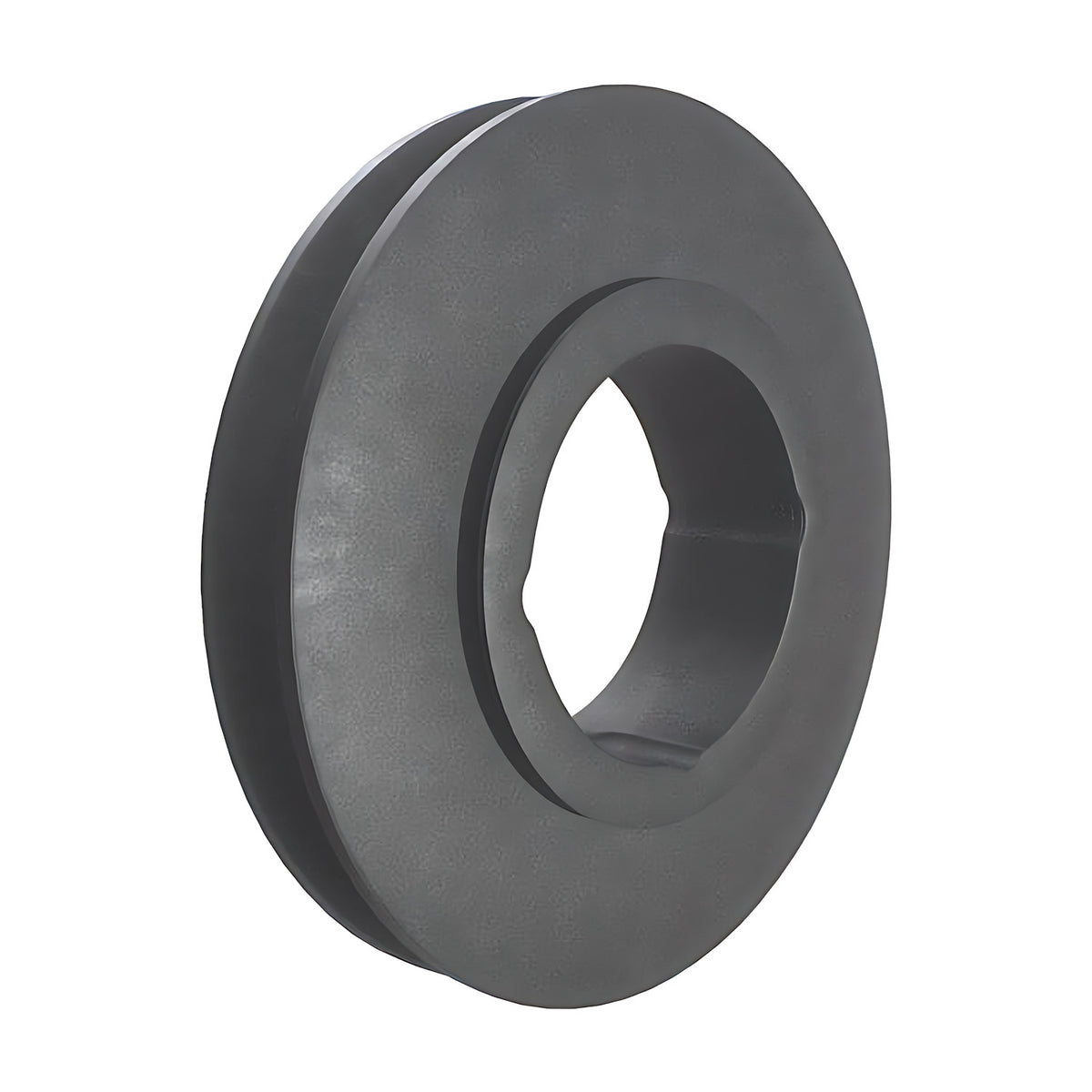

SPC Taper Lock V-Pulley, 150 mm PCD, 1 Groove, 2012/2517 bush

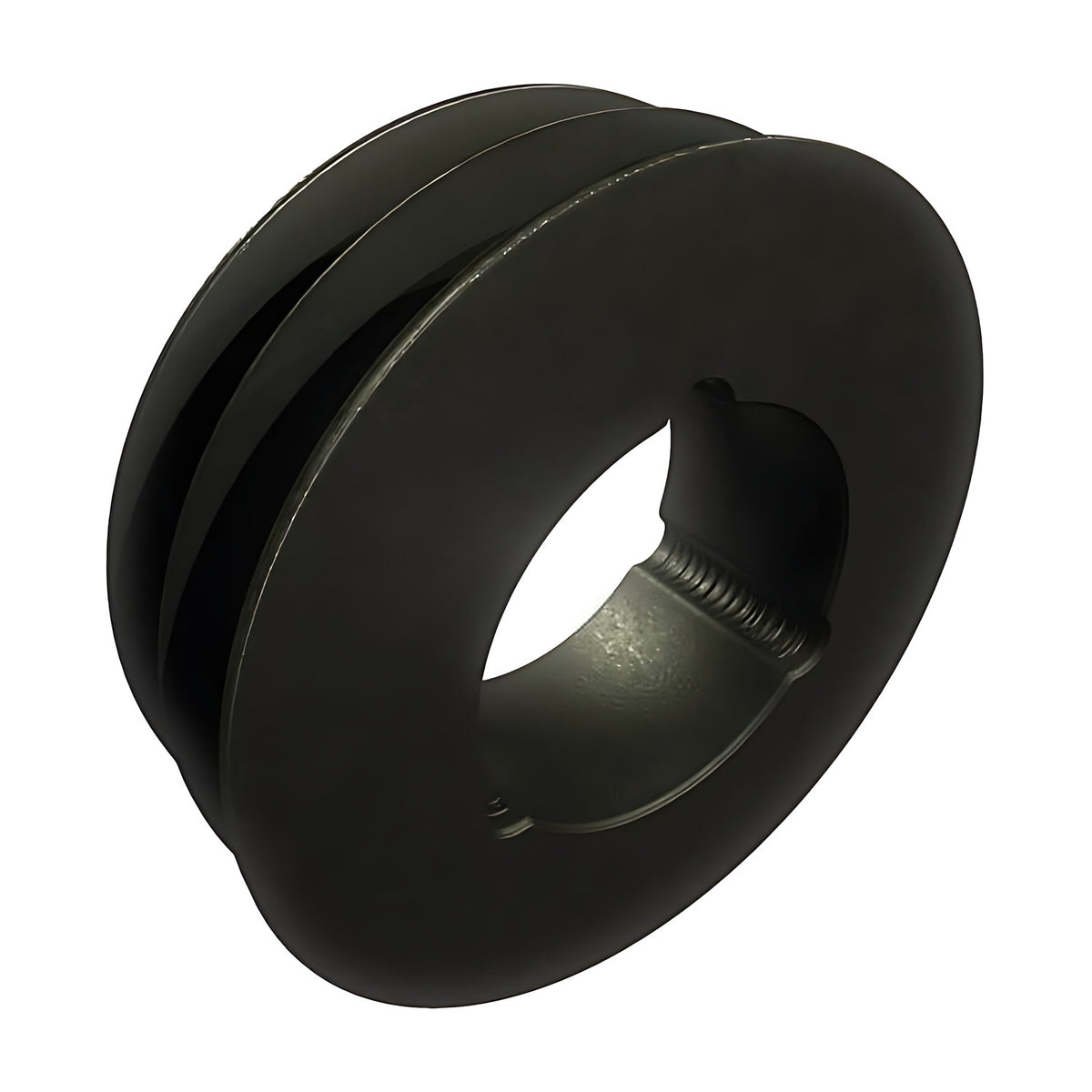

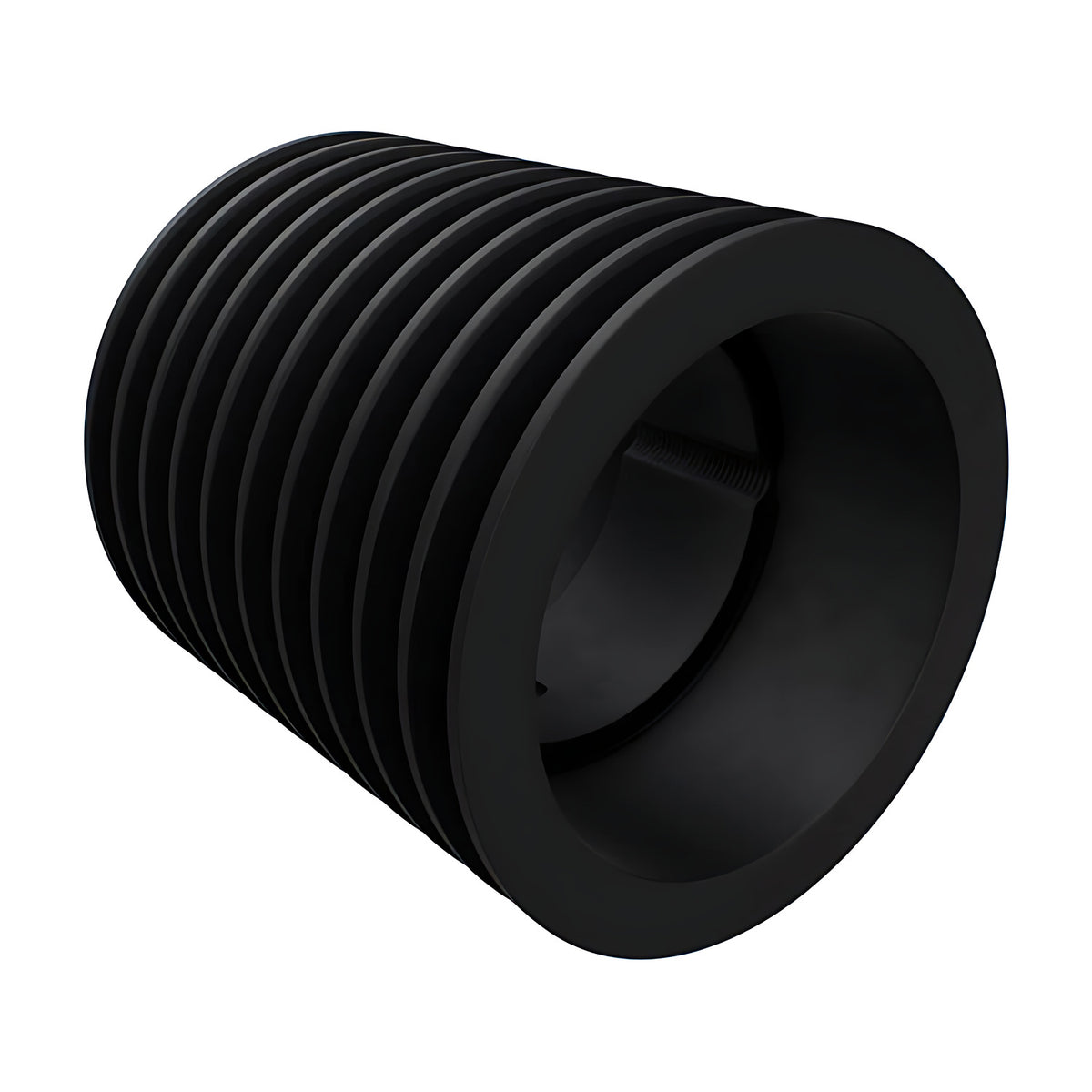

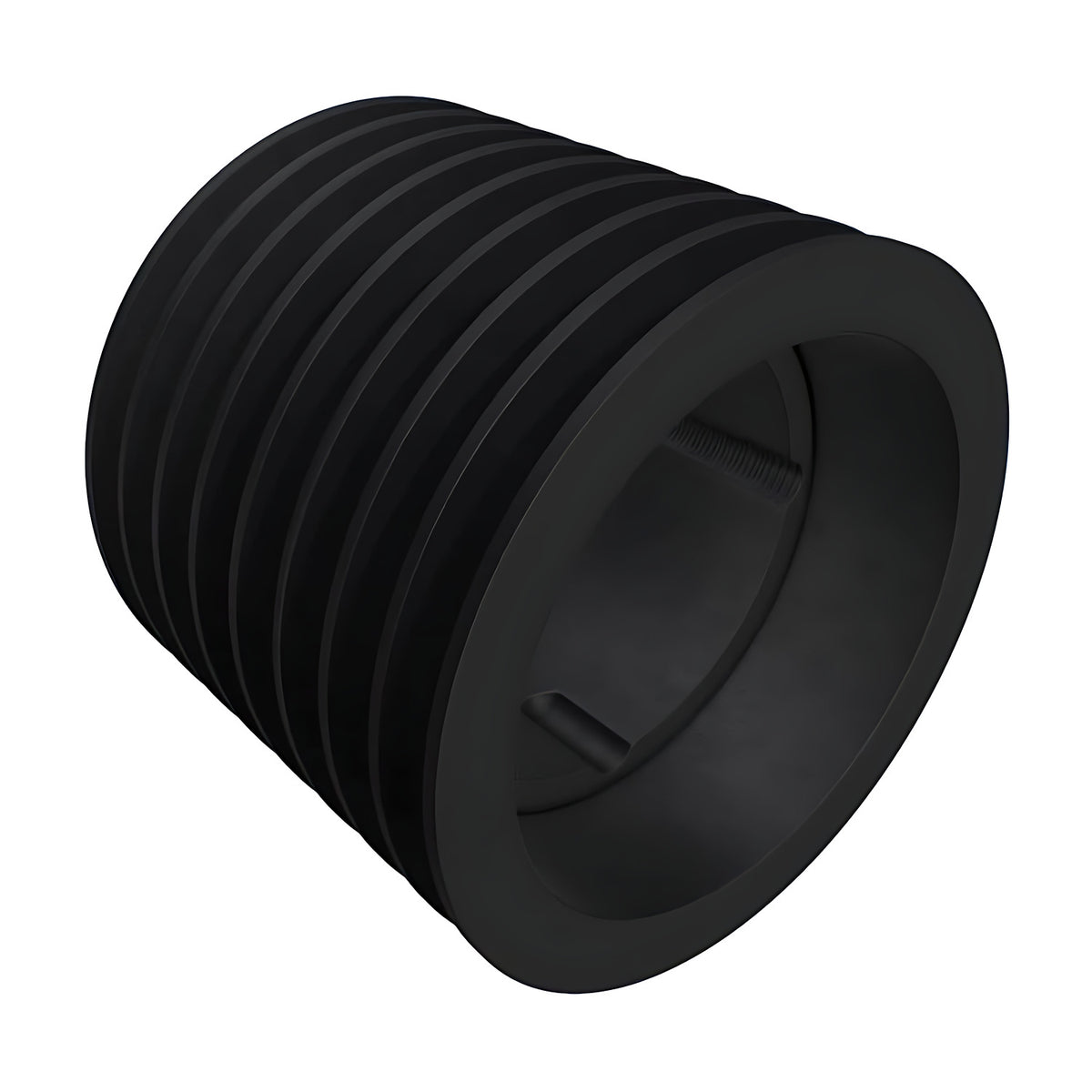

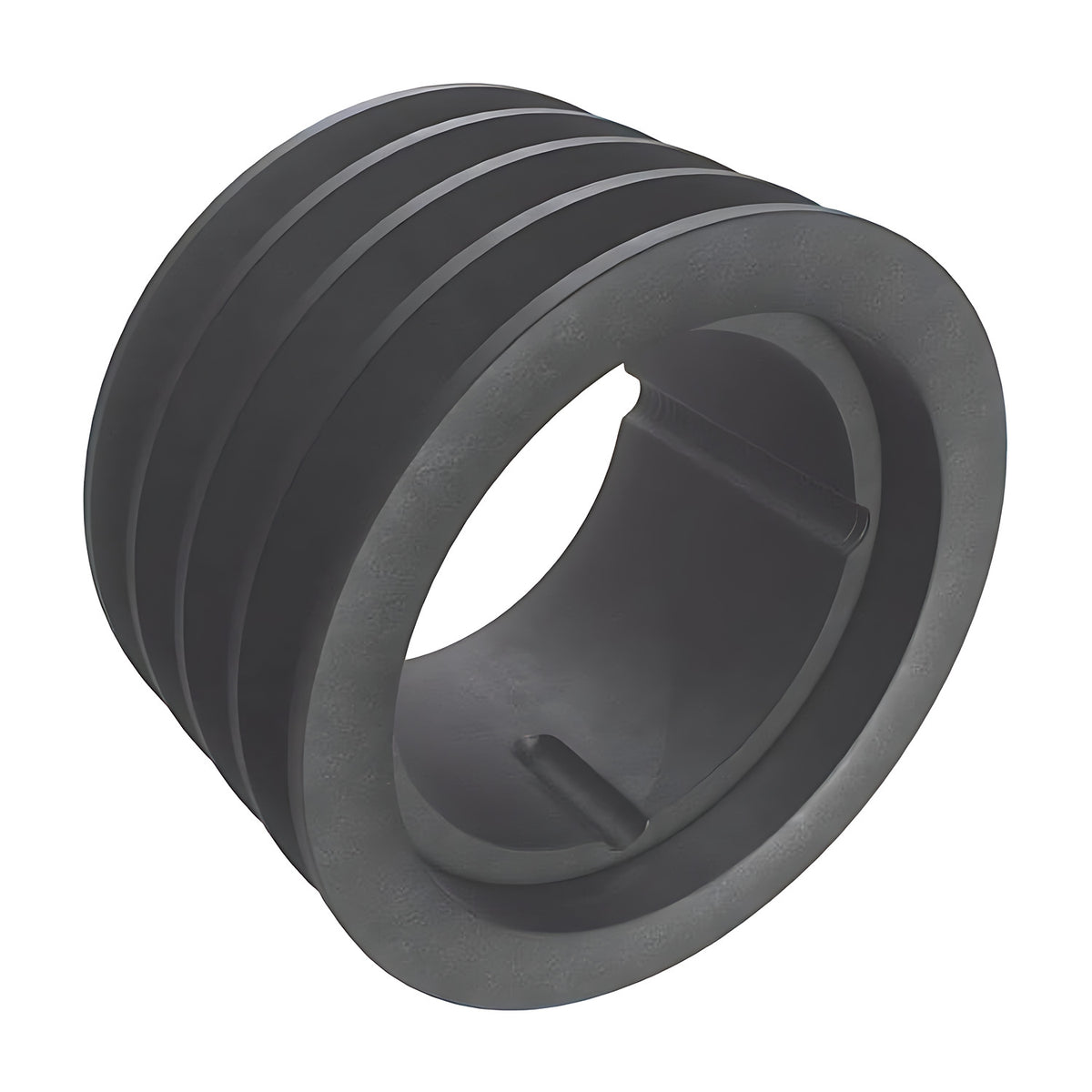

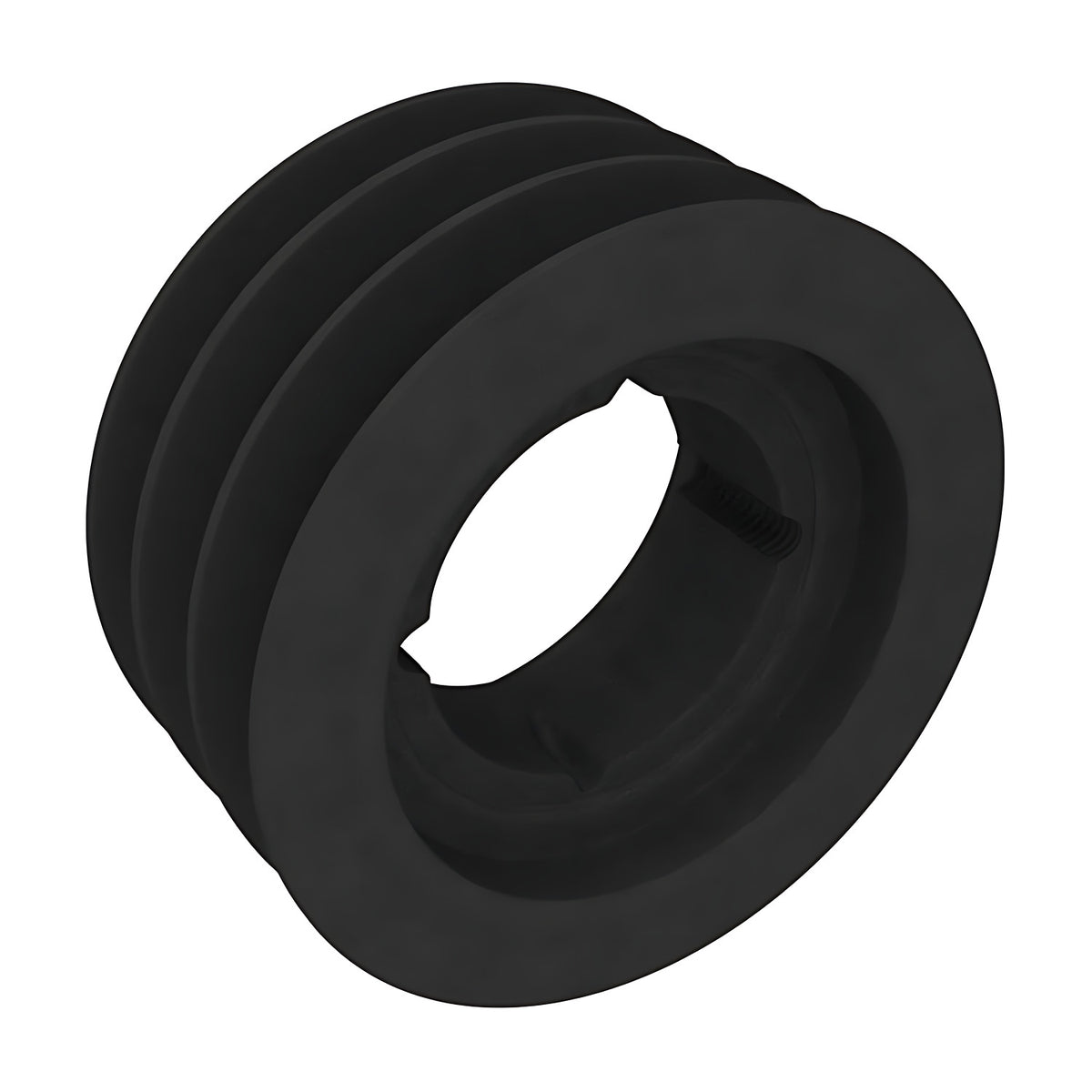

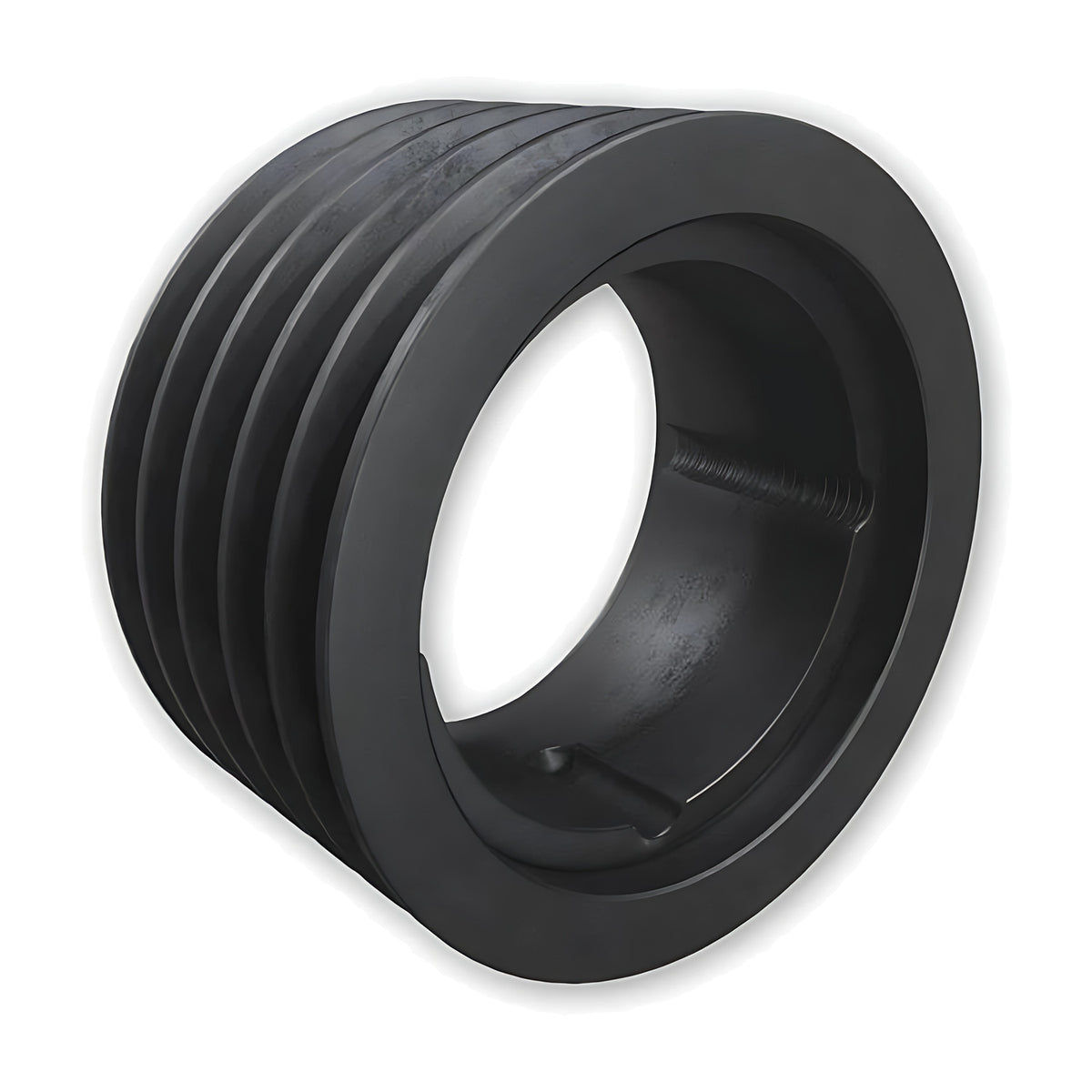

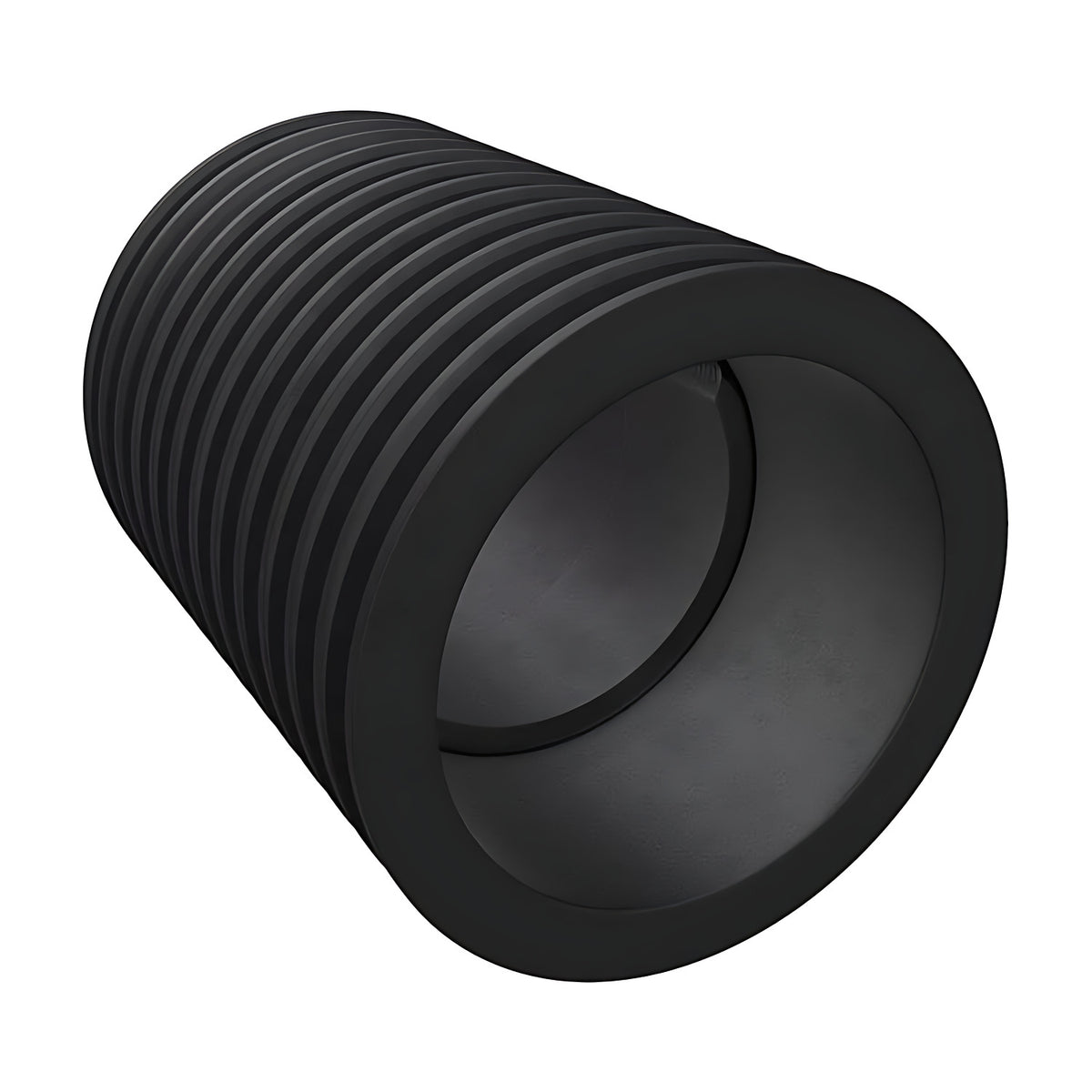

These cast iron SPC taper lock V-pulleys suit C and SPC V-belts. The range covers 166 models from 150 to 1250 mm pitch circle diameter (PCD), with 1 to 12 grooves.

Each pulley has a tapered bore that takes a taper lock bush. The bush is machined to your shaft size and keyway, and locks the pulley on the shaft when its screws are tightened. Bushes are listed separately on AIMS. The bush series for each model is listed below.

The PCD is the diameter the belt runs on and sets the speed ratio of the drive. Use one groove for each belt.

Where this product is used

• Fan, blower and pump drives
• Compressor and general machinery drives
• Conveyor and material handling drives
• Multi-belt drives where one pulley carries several belts
• Replacement pulleys on existing SPC belt drives

Features

• Taper lock hub that takes a separately sold taper lock bush
• SPC V-belt grooves, 1 to 12 grooves per pulley
• 166 models, 150 to 1250 mm PCD
• Cast iron construction with a black primer finish
• Bush series listed for each model: 2012 to 6050
• Outside diameter, face width, maximum bore and approximate mass listed where available
• Balance tested (supplier statement)

Key specifications

Sizes available

Selecting and fitting

Choose the pulley by belt section (SPC), pitch circle diameter and number of grooves. Divide the driven PCD by the driver PCD to find the speed ratio.

Then choose the bush. The bush series in the table is the series that fits that pulley, and the maximum bore is the largest shaft that bush takes. Where two series are listed, either fits. Order a bush of that series with the bore and keyway you need: see the metric cast iron taper lock bushes or imperial cast iron taper lock bushes.

Fit the bush in the pulley hub, slide the assembly onto the shaft and align the pulley with its mating pulley. Tighten the bush screws evenly to the bush manufacturer's torque. Check the two pulleys are in line with a straight edge before fitting the belts.

Set belt tension to the belt maker's recommendation, and check it again after a few hours of running.

Dimensions are as listed for each model and are for reference. Contact AIMS to confirm a measurement if it is critical to your application.
