Sutton D134 Panel Drill Bit - Tupoint - HSS: 1/8

SKU: A0004287 | Model: D1340318

Diameter (inch) 1/8. Descriptions

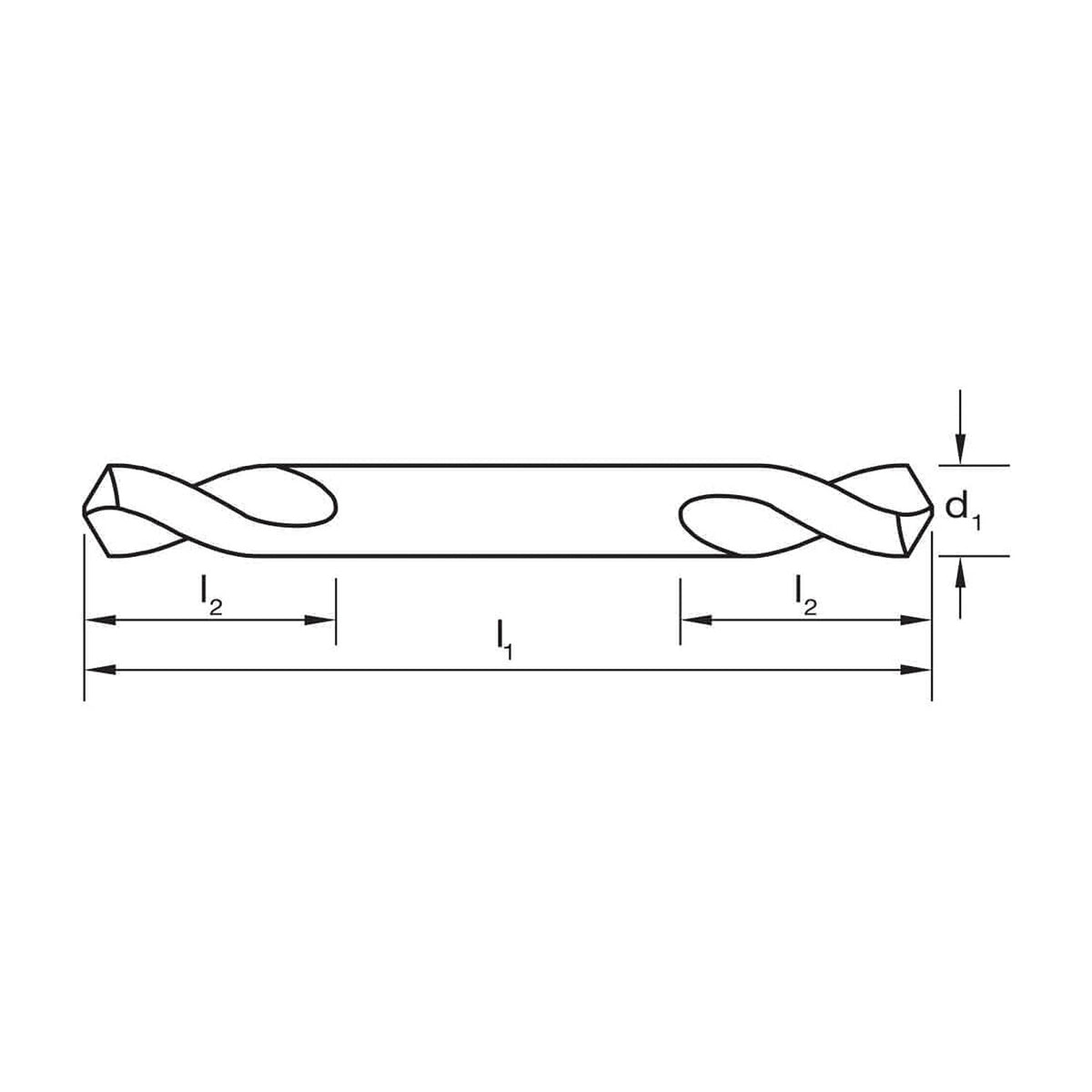

The Sutton D134 Tupoint panel drill is a double-ended high speed steel drill with a bright finish and a 135° self-centring point, developed to drill rivet holes in flat and curved panels in sheet metal fabrication. It comes as a hang pack of 10, in 4 sizes from Ø3.18 mm to Ø4.9 mm.

The self-centring point minimises wandering when starting, and the flute is designed for shallow holes no deeper than 1.25 × the drill diameter. Both ends are cut as drill points: Tupoint increases drill life, and the chuck jaws must be fully tightened.
