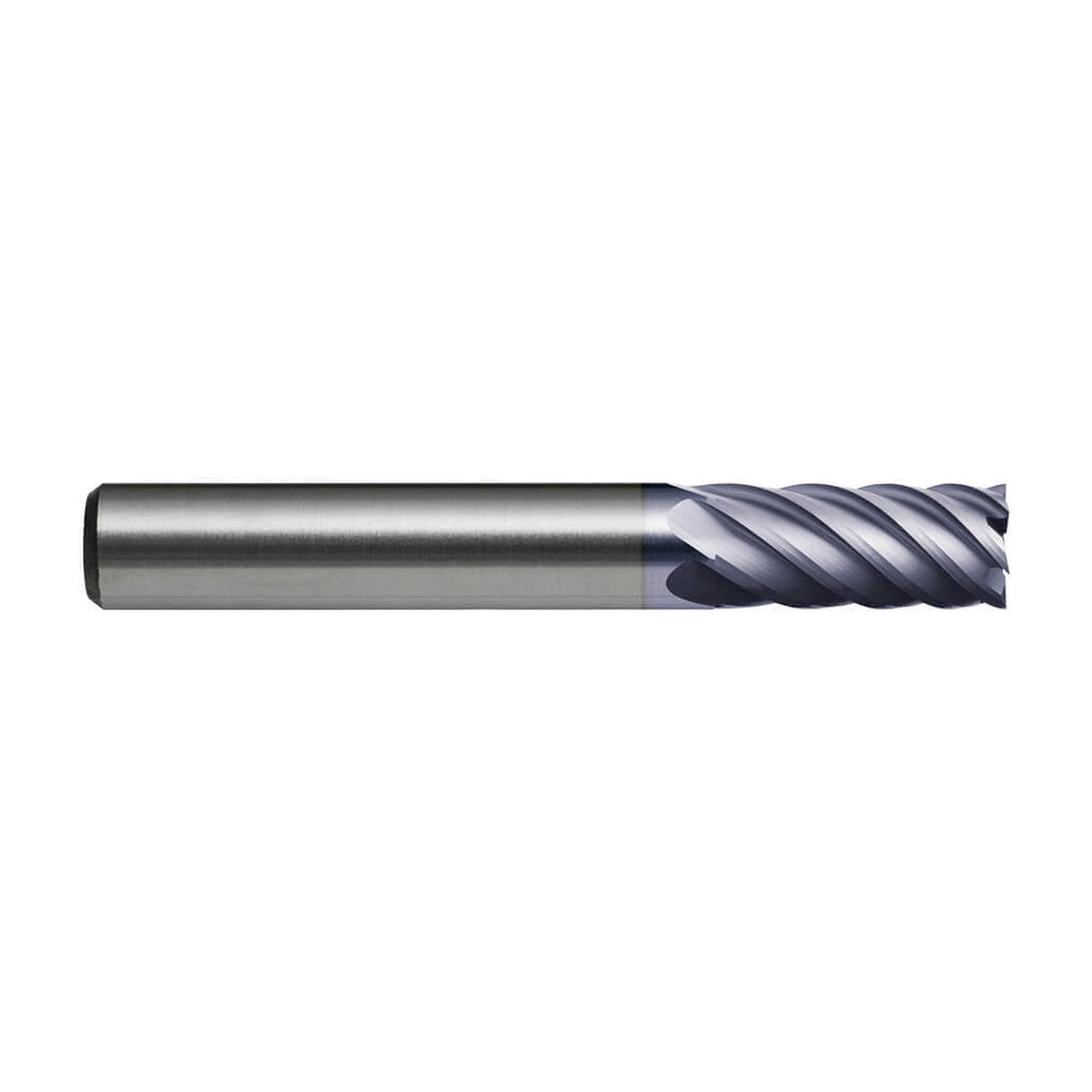

Sutton E432 6mm Endmill 6 Flute - Carbide VHM Ultra - AlCrN - Regular
Available
The Sutton E432 is an endmill with 6 to 8 flutes, depending on size, made from VHM-ULTRA grade solid carbide, with an AlCrN coating. It is in the regular length series. This listing covers 9 metric sizes from 6 mm to 25 mm.

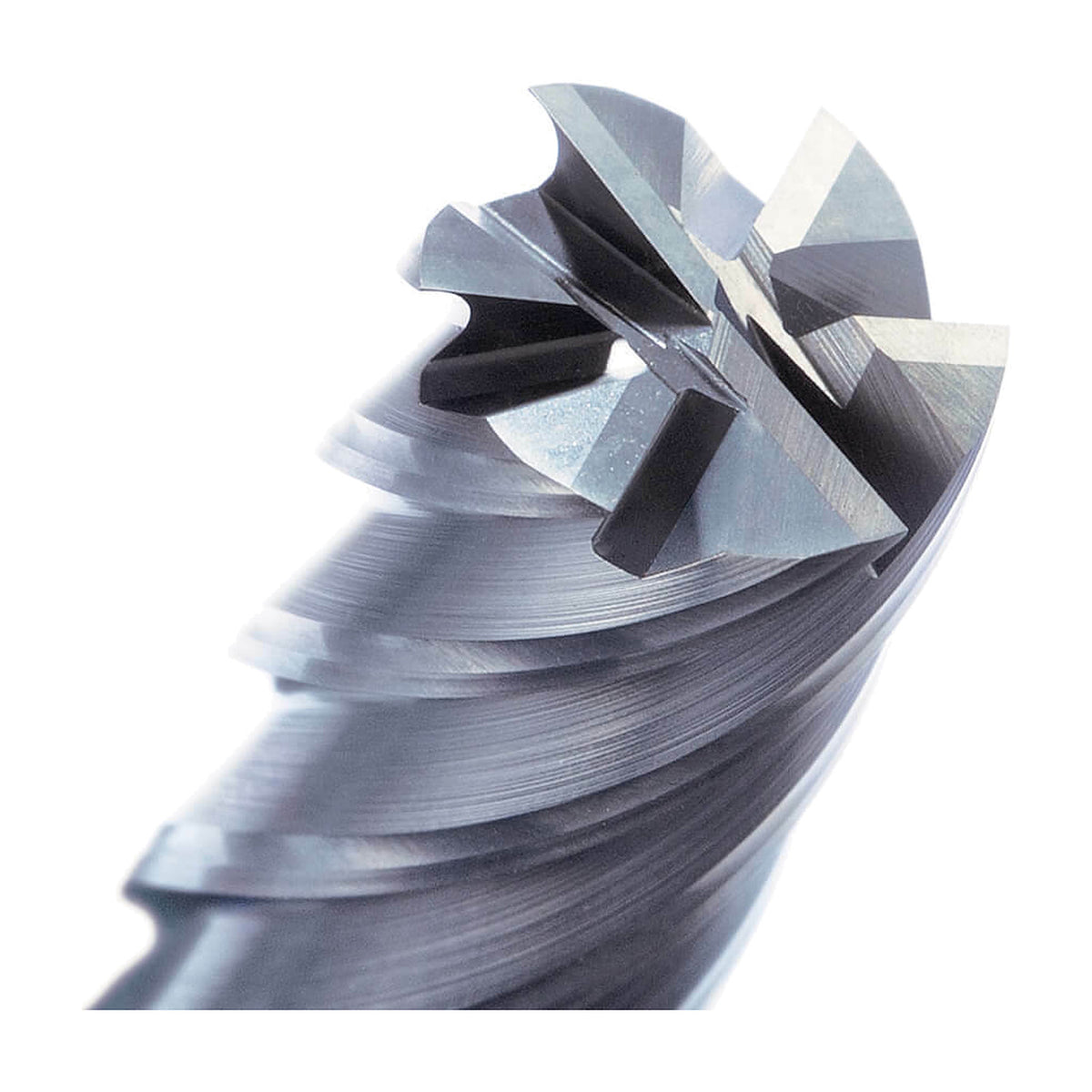

The cutting edge has a 50/35° variable helix and the designation is NH. The shank is a plain cylindrical shank (DIN 6535 form HA), with h5 shank tolerance and e8 cutting diameter tolerance. The cutting length is to DIN 6527 L.
Where this product is used
- Super fine finishing.
- Hard, short chipping materials up to 48 HRC.
Design features
- VHM-ULTRA grade solid carbide construction.
- AlCrN coating for longer tool life.
- 6 to 8 flutes, 50/35° variable helix.
- Plain cylindrical shank (DIN 6535 form HA).
- Tolerances: cutting diameter (d1) e8, shank h5.
Sizes
Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.

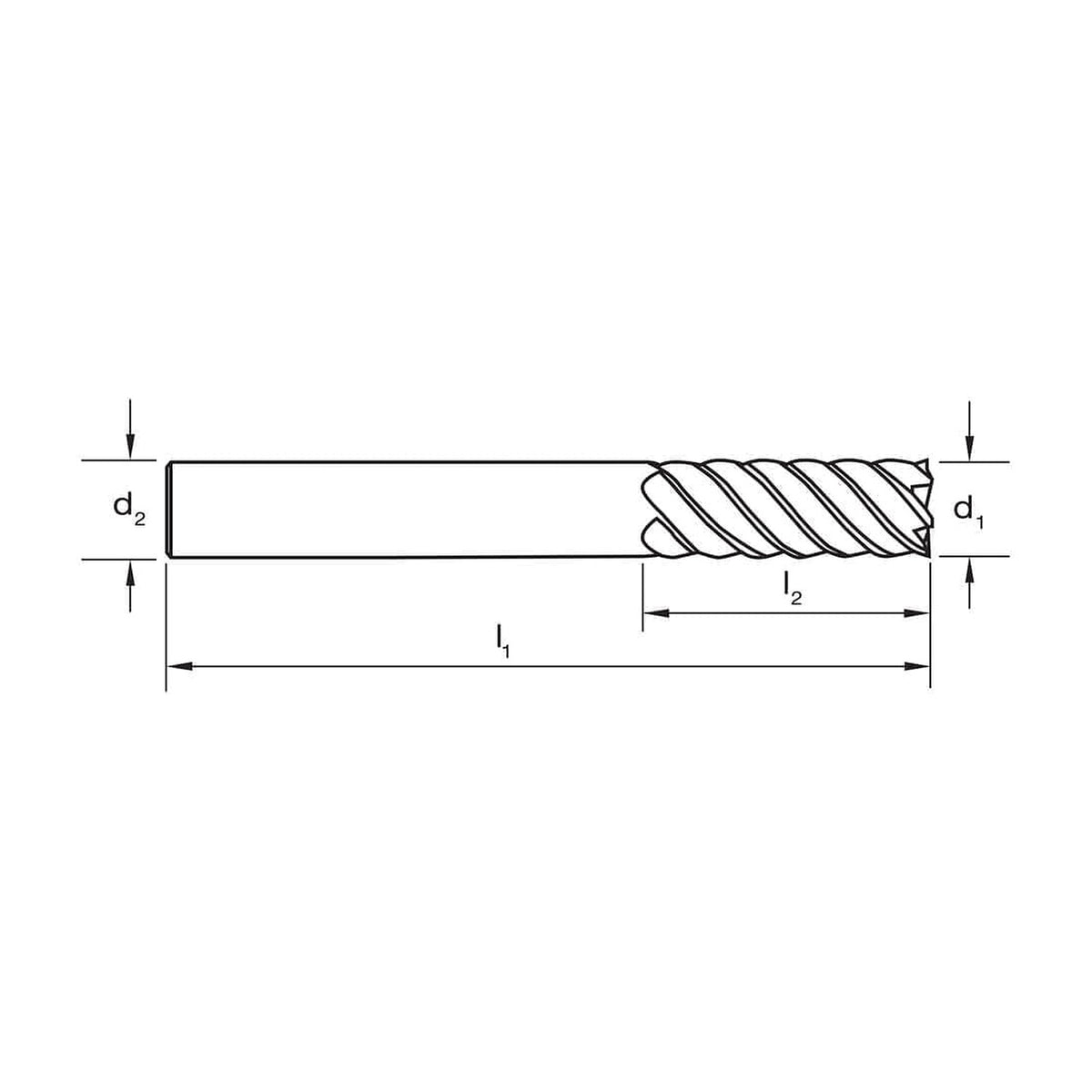

| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | d2 shank (mm) | Flutes |
|---|---|---|---|---|---|
| E432 0600 | 6 | 57 | 13 | 6 | 6 |
| E432 0800 | 8 | 63 | 19 | 8 | 6 |
| E432 1000 | 10 | 72 | 22 | 10 | 6 |
| E432 1200 | 12 | 83 | 26 | 12 | 6 |
| E432 1400 | 14 | 83 | 26 | 14 | 6 |
| E432 1600 | 16 | 92 | 32 | 16 | 6 |
| E432 1800 | 18 | 92 | 32 | 18 | 8 |
| E432 2000 | 20 | 104 | 38 | 20 | 8 |
| E432 2500 | 25 | 120 | 45 | 25 | 8 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E432 |
| Type | Endmill, 6-8 flute, regular length |
| Material | VHM-ULTRA solid carbide |
| Finish | AlCrN |
| Helix / geometry | R50/35 |
| Designation | NH |
| Shank form | plain cylindrical shank (DIN 6535 form HA) |
| Cutting diameter tolerance (d1) | e8 |
| Shank tolerance | h5 |
| Cutting length | DIN 6527 L |
| Sizes in this listing | 9 sizes, 6 to 25 mm |
