Trax ARX-200NK 3/16" Air Hydraulic Riveter Kit
Available

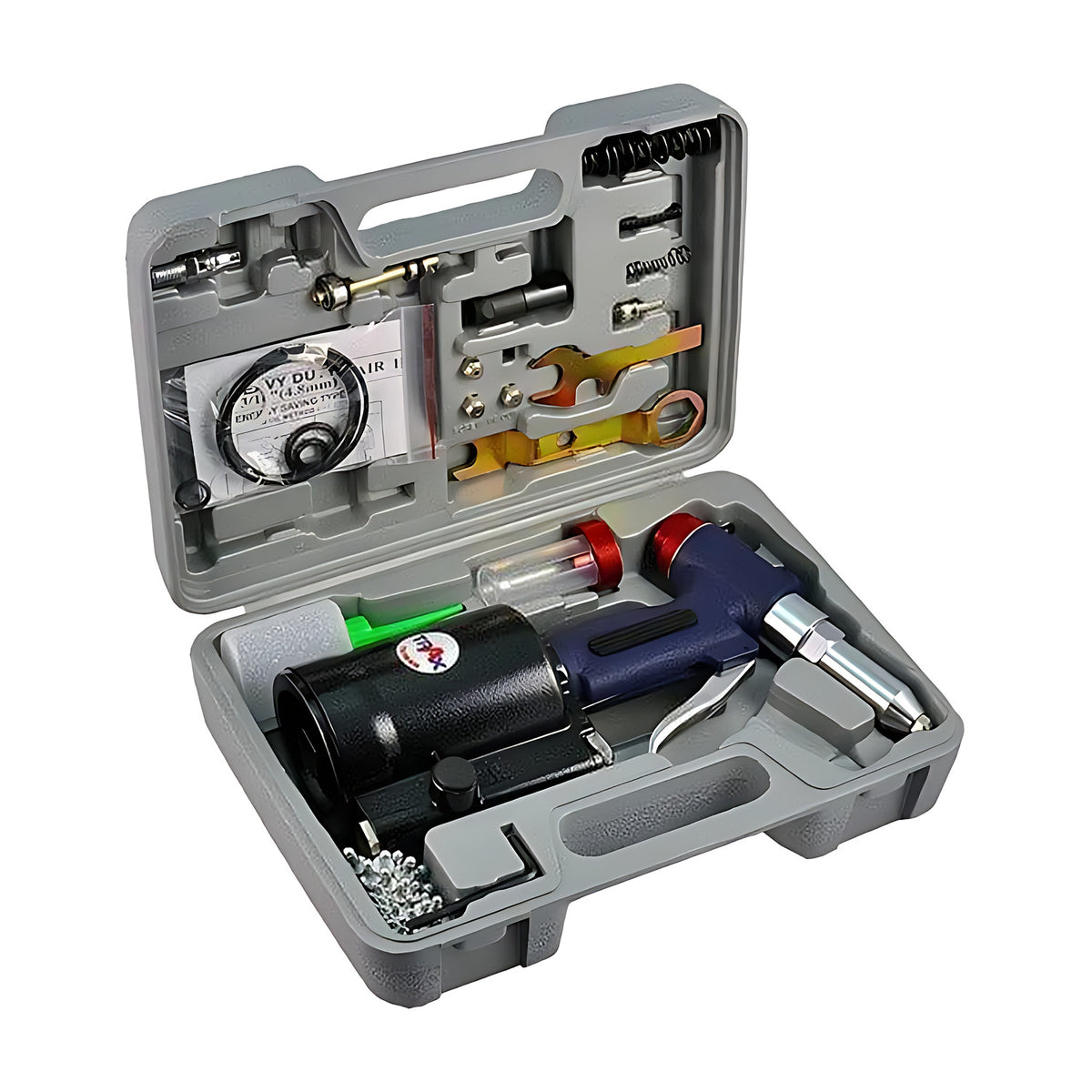

Trax ARX-200NK is a 3/16" air hydraulic riveter supplied as a kit.
The kit is the ARX-200N riveter with four nosepieces, replacement jaw case and valve and trigger assemblies, spanners, a hex wrench, an oiler and 10 rivets in each of the four sizes.
Where this product is used
- Jobs that call for an air riveter
Features
- Kit includes the ARX-200N air hydraulic riveter
- Four nosepieces: 3/32", 1/8", 5/32" and 3/16"
- 10 rivets supplied in each of 3/32", 1/8", 5/32" and 3/16"
- Replacement jaw case, valve and trigger assemblies, return spring, O-rings and valve pusher
Key specifications
| Specification | Detail |
|---|---|
| Brand | Trax |
| Part number | ARX-200NK |
| Type | Air hydraulic riveter kit |
| Size | 3/16" |
| Stroke length | 16mm |
| Working air pressure | 78 - 85 psi |
| Air inlet | 1/4" |
| Traction power | 1,045 kgf / 2,299 lbf at 85psi |
| Nosepieces | 3/32" (2.4mm), 1/8" (3.2mm), 5/32" (4.0mm), 3/16" (4.8mm) |
| Capacity, steel rivets | 3/32" (2.4mm) to 3/16" (4.8mm) |
| Capacity, stainless rivets | Up to 5/32" (4.0mm) |
| Width x height | 165 x 270mm |
| Kit contents | ARX-200N riveter, 4 nosepieces, replacement jaw case and valve and trigger assemblies, spanners, hex wrench, oiler, 10 rivets in each of 3/32", 1/8", 5/32" and 3/16" |
Choosing the right option
Also from Trax: Trax Air Hydraulic Riveter, Trax ARX-270N 3/16" Heavy Duty Air Hydraulic Riveter, Trax ARX-380 5/16" Heavy Duty Air Hydraulic Riveter, Trax ARX-0123A 7.5mm M4-M10 Air Nut Riveter.
