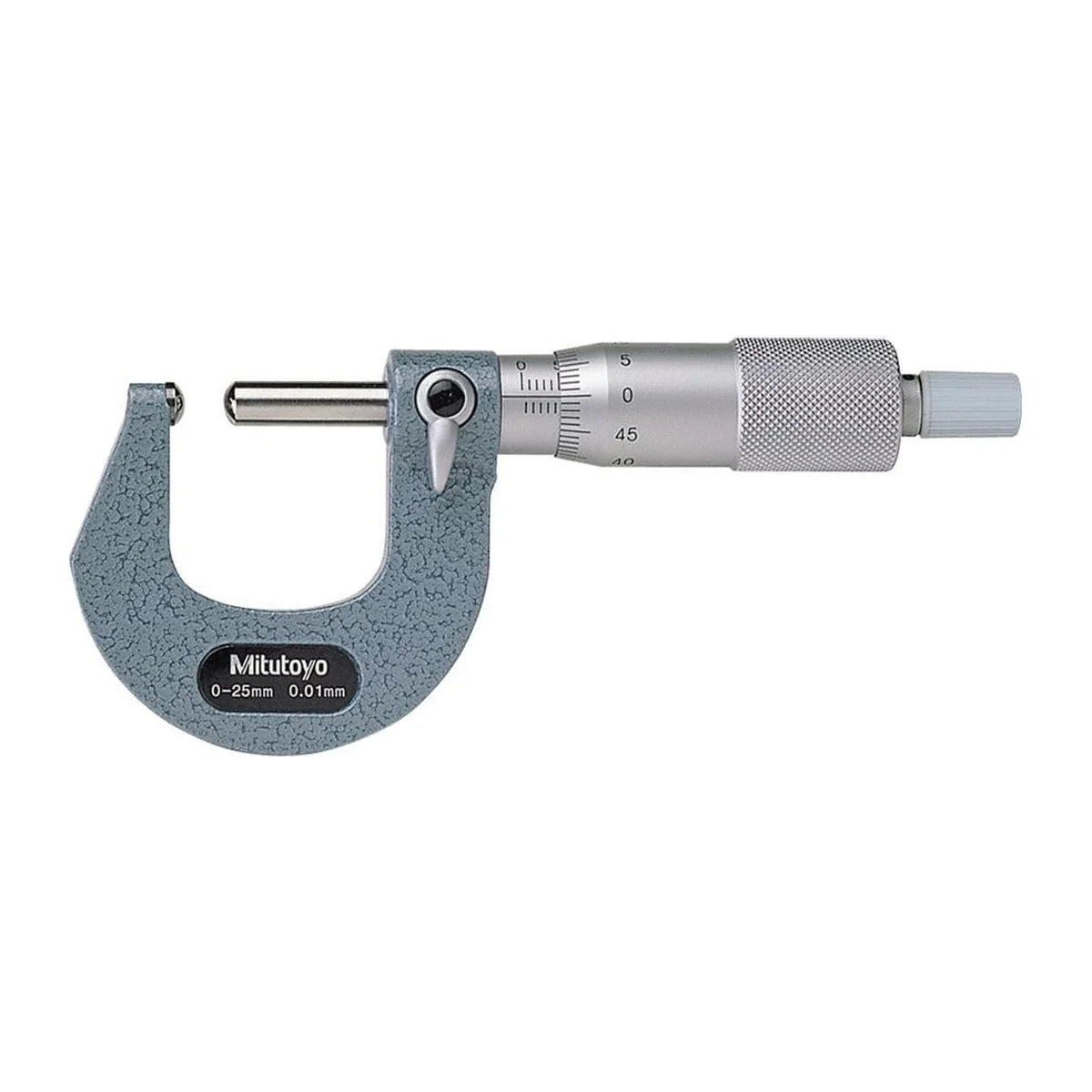

Mitutoyo 115-215 Tube Micrometer, 0 - 25mm

Mitutoyo Series 115 tube micrometers with a spherical anvil and spindle tip measure the wall thickness of tubes and pipes. The rounded faces on both ends sit well on the curved inside and outside of a tube. Fitters, toolrooms, quality control teams and machinists use them to check tube, pipe and ring wall thickness. They are analog, with a ratchet stop for constant force.

There are two models: an inch one that measures 0 - 1" and a metric one that measures 0 - 25mm. Graduation is the smallest step marked on the scale. Accuracy is a separate figure: it is the biggest error Mitutoyo allows, so do not read a fine graduation as a promise of that accuracy. Pick the unit you work in.

Where this product is used

• Measuring the wall thickness of tubes and pipes
• Quality control checks on tube and ring stock
• Toolroom and workshop inspection of curved parts

Features

• Spherical anvil and spindle tip for curved surfaces
• Inch model 0 - 1" and metric model 0 - 25mm
• Ratchet stop for constant measuring force of 5 - 10 N
• Carbide-tipped spindle and anvil with a micro-lap finish
• Spindle lock
• Supplied with a box and a spanner
• Satin chrome thimble and sleeve 18mm in diameter
• Light at 180 g

Key specifications

Choosing the right option
