3.2 mm White PVC Coated Wire Rope, 316 Stainless Steel - WROPVC7X7A4M32

Made in 316 (A4) stainless steel, the White PVC Wire Rope 7 x 7 Construction is stainless 7 x 7 wire rope with a white PVC coating. The coating makes the rope easier on the hands and protects against abrasion.

You can choose from 2 variants, covering sizes 3.2 mm to 4 mm.

Made from 316 (A4) stainless steel, the grade normally specified for chloride-exposed work such as coastal installations, swimming pools, marine fittings and food-processing plant.

Austenitic stainless steel is generally non-magnetic, although cold-worked parts can show weak magnetism. In wet conditions, keep stainless steel apart from aluminium and galvanised steel with a washer or sleeve, to reduce the risk of galvanic corrosion.

Where this product is used

• Chemical and washdown areas
• Guy lines and light tie-offs
• Garden, trellis and fencing wire
• Food and beverage processing equipment
• Boat covers and light marine lines

Features

• Choice of 2 sizes, 3.2 mm to 4 mm

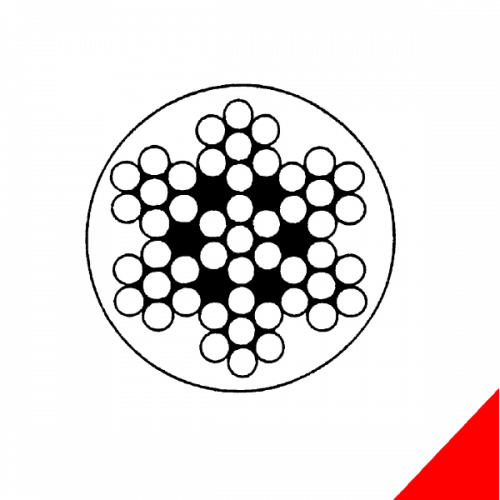

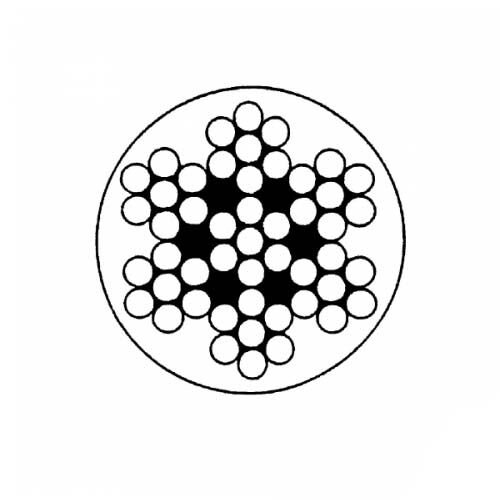

• 7 x 7 construction
• A4 (316) stainless steel with molybdenum, for coastal and chloride-exposed settings
• Supplied in coils
• White PVC coating over stainless wire

Key specifications

Selecting the right option

The coating adds to the overall diameter. Sizes are shown on the variant. Use fittings sized to the wire, not the coating, and strip the coating where a fitting is crimped or swaged.

Important

This product is not stated as lifting rated in the supplier data. Do not use it to lift or suspend people or loads unless it is marked with a working load limit (WLL). Rigging and lifting hardware should be selected, inspected and used in line with your site procedures and the relevant Australian Standards, and a qualified rigger should be consulted for any lift.
