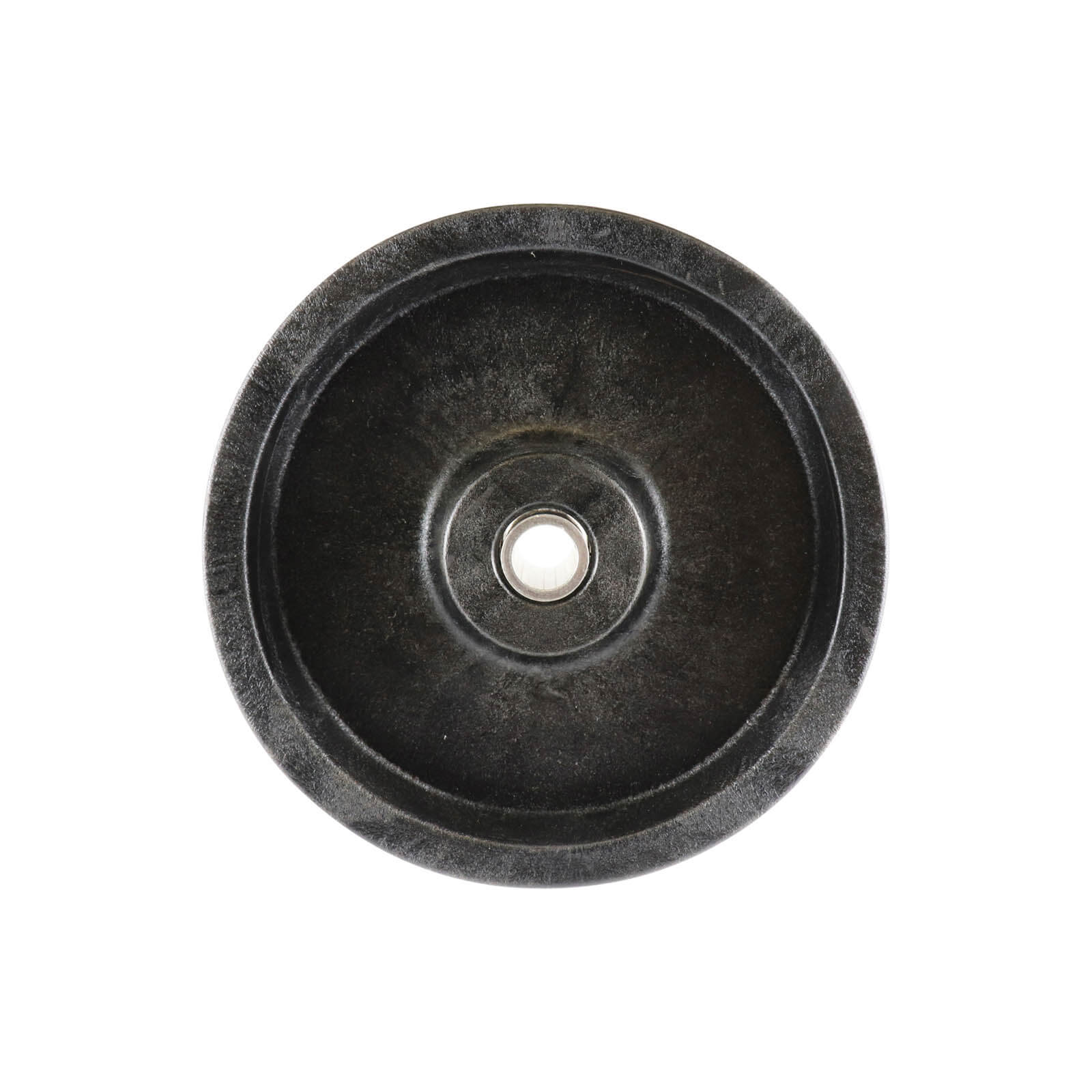

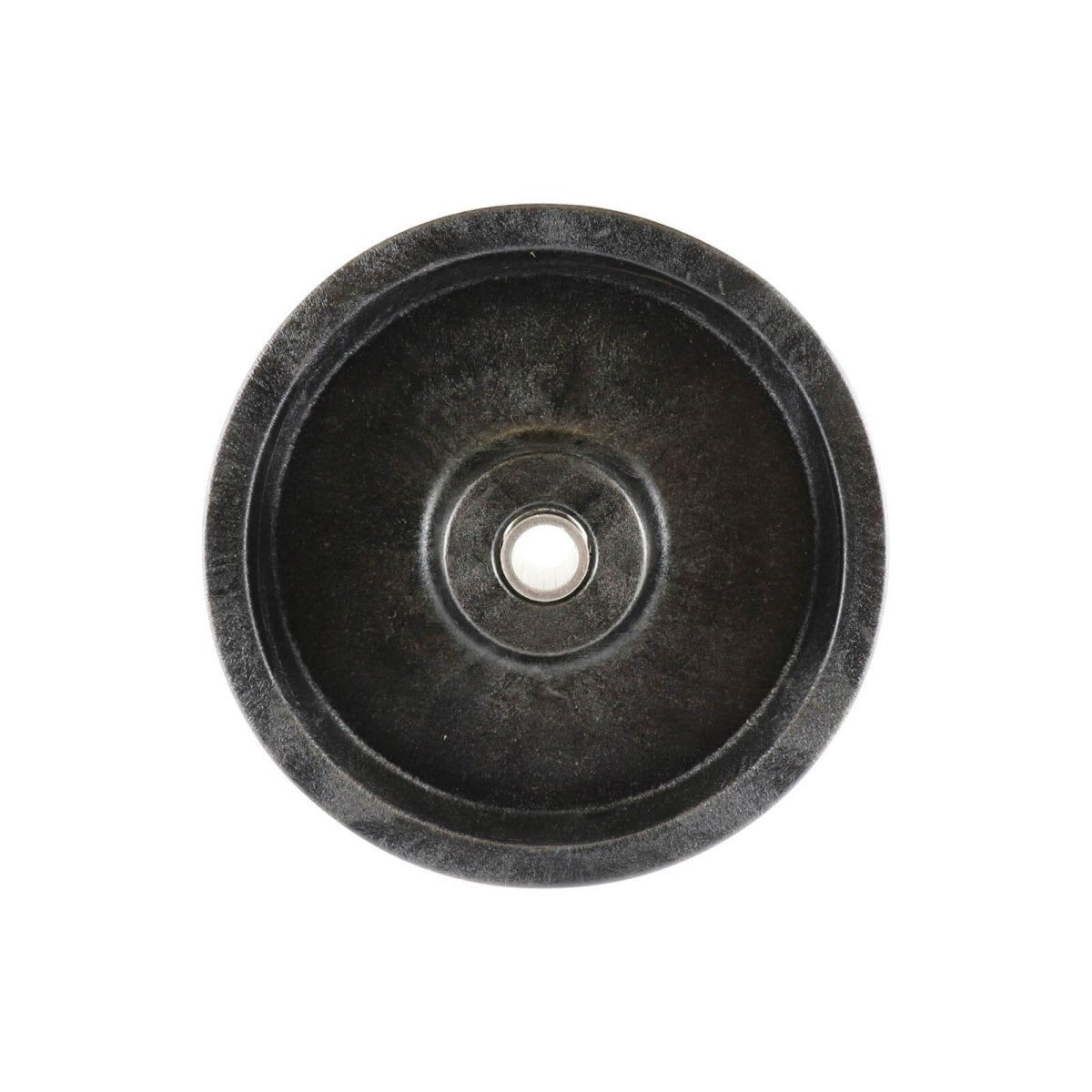

EasyRoll High Temperature Wheel with Axle Tube - Plain Bearing, 100 mm

The EasyRoll STW100 is a 100mm high temperature wheel with an axle tube and a plain bearing. It has a 35mm tread, a 12mm bore with an 8mm bush ID and a load capacity of 180kg per wheel.

It has the size, load and bearing for this wheel but does not state a temperature rating for the wheel on its own.

Where this product is used

• Replacement high temperature wheels

Features

• 100mm diameter, 35mm tread
• Load capacity 180kg per wheel
• Plain bearings
• Wheel type: High temperature

Key specifications

Choosing the right option

Work out the temperature at the wheel, and how long it stays at that temperature, before choosing it. Check the bore ID against your axle, the hub length against the space in your fork or frame, and the load capacity per wheel against the total load shared across all the wheels. Plain bearings consist of a bearing shell solidly connected with the wheel, which turns around an axle tube bolted to the housing. Under normal conditions they are maintenance free and corrosion resistant. Load capacity is shown per wheel. For castors on a four wheel trolley it is best that each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries.
