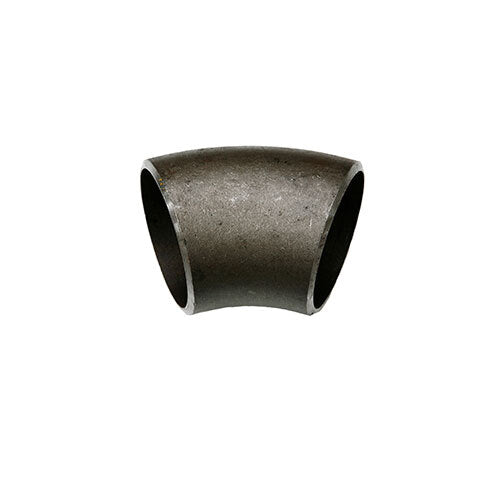

| The AAP 45deg Long Radius Elbow Buttweld Std by AAP is a Long Radius Elbow made from high-quality carbon alloy steel to ASTM A234. It provides a 45deg configuration and is suitable for Ducting & Fittings applications. |
Regular price
From $1.56
Sale price
From $1.56
Regular price
| AAP | Long Radius Elbow |
Pipe Size (inch)
1/2,3/4,1,1-1/4,1-1/2,2,2-1/2,3,4,5,6,8,10,12,14,16,18,20,24

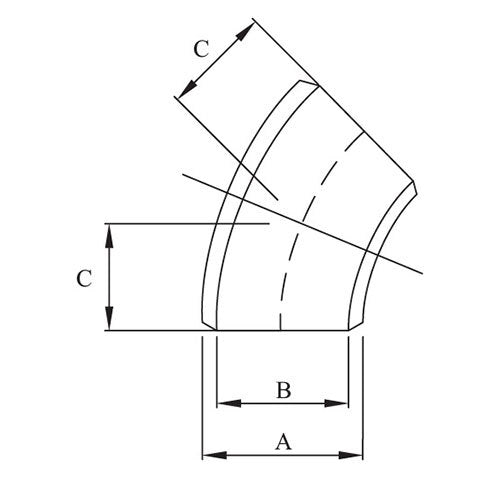

Outer Diameter (A) mm
21.3,26.7,33.4,42.2,48.3,60.3,73,88.9,114.3,141.3,168.3,219.1,273.1,323.9,355.6,406.4,457,508,610
Inner Diameter (B) mm
15.7,20.9,26.6,35,40.9,52.5,62.6,77.9,102.3,128.1,154.1,202.7,254.5,304.9,336.54,387.34,437.94,488.94,590.94
|
