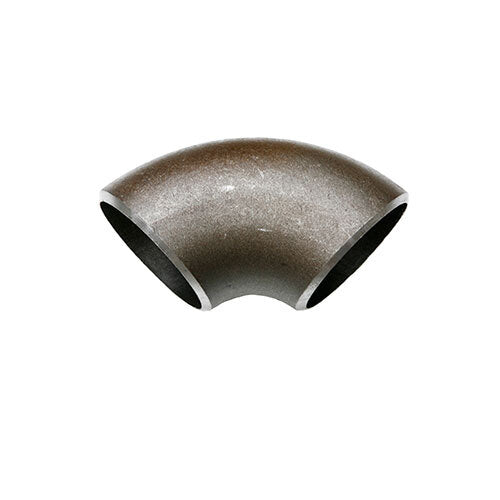

AAP 90° Short Radius Elbow Buttweld Std
The advantages of Buttweld include:
- Welding a fitting to the pipe means that is permanently leak
- The continuous metal structure formed between pipe and fitting adds strength to the system.
- The smoother inner surface and gradual direction flanges reduce the pressure losses and turbulence and minimises the action of corrosion and abrasion.
- A welded system utilizes a minimum of space.
Specifications
Specifications
Specification
- AAP stocks Buttweld made from high-quality carbon alloy steel to ASTM A234 which can be used in various piping systems.
Applications
Applications
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
AAP 90deg Short Radius Elbow Buttweld Std
AAP 90deg Short Radius Elbow Buttweld Std
SKU: A0078261
Type: Short Radius Elbow
- Wide Range
- Reliable Services
- Proven Trust
Available
The AAP 90deg Short Radius Elbow Buttweld Std by AAP is a Short Radius Elbow made from high-quality carbon alloy steel to ASTM A234 for use in various piping systems. It offers a 90deg bend and is suitable for Ducting & Fittings.
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Resources
Couldn't load pickup availability
Description
Description
AAP 90° Short Radius Elbow Buttweld Std
The advantages of Buttweld include:
- Welding a fitting to the pipe means that is permanently leak
- The continuous metal structure formed between pipe and fitting adds strength to the system.
- The smoother inner surface and gradual direction flanges reduce the pressure losses and turbulence and minimises the action of corrosion and abrasion.
- A welded system utilizes a minimum of space.
Specifications
Specifications
Specification
- AAP stocks Buttweld made from high-quality carbon alloy steel to ASTM A234 which can be used in various piping systems.
Applications
Applications
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
AAP 90deg Short Radius Elbow Buttweld Std
Customer Service
Mon-Fri, 08:00-05:00pm
Call Us
(02) 9773-0122
Talk to a Sales Engineer
sales@aimsindustrial.com.au
Warehouse Address
Milperra NSW 2214, Australia
Your cart
(0)
Your cart is currently empty.
Not sure where to start? Try these collections:
Order note
Estimate Shipping
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
|
| The AAP 90deg Short Radius Elbow Buttweld Std by AAP is a Short Radius Elbow made from high-quality carbon alloy steel to ASTM A234 for use in various piping systems. It offers a 90deg bend and is suitable for Ducting & Fittings. |
Regular price
From $4.55
Sale price
From $4.55
Regular price
Unit price
/per
| AAP | Short Radius Elbow |
Pipe Size (inch)
1,1-1/4,1-1/2,2,2-1/2,3,3-1/2,4,5,6,8,10,12

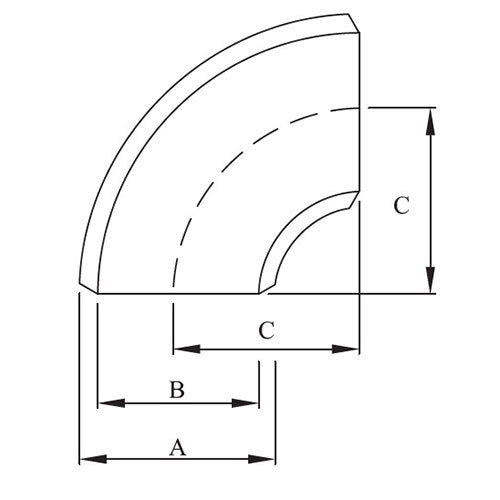

Outer Diameter (A) mm
33.4,42.2,48.3,60.3,73,88.9,101.6,114.3,141.3,168.3,219.1,273.1,323.9
Inner Diameter (B) mm
26.6,35,40.9,52.5,62.6,77.9,90.2,102.3,128.1,154.1,202.7,254.5,304.9
|
Choose your option
AAP 90deg Short Radius Elbow Buttweld Std
AAP 90deg Short Radius Elbow Buttweld Std
SKU: A0078261
Type: Short Radius Elbow
Hurry up, only 16 items left in stock.
The AAP 90deg Short Radius Elbow Buttweld Std by AAP is a Short Radius Elbow made from high-quality carbon alloy steel to ASTM A234 for use in various piping systems. It offers a 90deg bend and is suitable for Ducting & Fittings.
