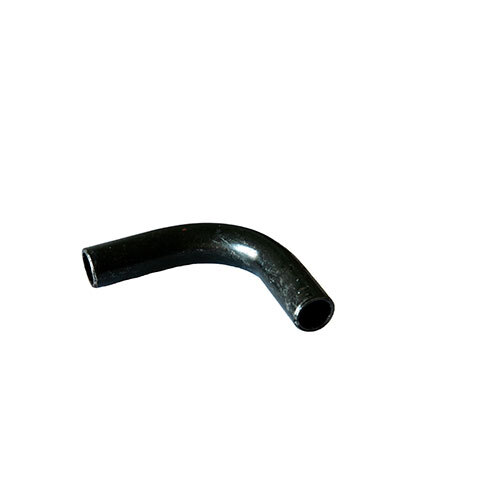

AAP Black Steel Bevel End 90 Degree Bend, 1/2"
Available

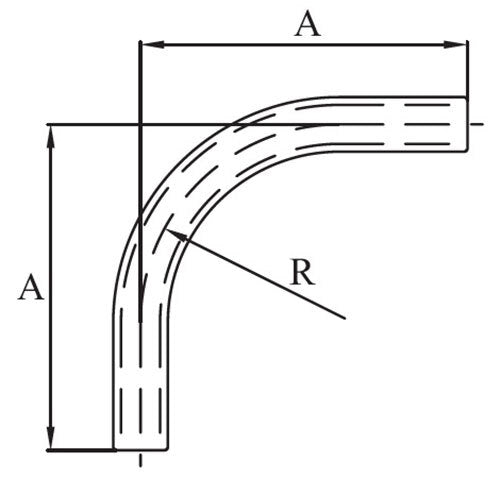

This AAP black bevel end 90° bend is a mild steel fitting. It is supplied in 10 sizes, 1/2" (15mm) to 6" (150mm). A bend turns a pipe run through an angle with a longer sweep than an elbow. This one turns it through 90° and has bevelled ends. A is the length and R the radius.
It has a black finish. All sizes other than unions are sample tested to 5.2 MPa. These are test pressures, not working pressures.
Where this product is used
- Turning steel pipework through 90° with a longer sweep
- Pipework where bevelled ends are needed
- General steel pipework
Features
- 10 sizes, 1/2" (15mm) to 6" (150mm)
- Mild steel, black
- Ends: Bevelled ends
- Test pressure: Sample tested to 5.2 MPa
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Black bevel end 90° bend, mild steel |
| Finish | Black |
| Ends | Bevelled ends |
| Test pressure | Sample tested to 5.2 MPa |
| Sizes | 1/2" (15mm) to 6" (150mm) (10 sizes) |
Choosing the right option
Choose the size to match your pipework.
Related AAP products: AAP Black Steel 90 Degree Bend, Male-Male, AAP Black Steel 45 Degree Bend, Male-Male, AAP Black Steel Barrel Nipple.
| Option | Part number | SKU |
|---|---|---|
| 1/2" | SBDW15 | A0075699 |
| 1" | SBDW25 | A0075701 |
| 1-1/4" | SBDW32 | A0075702 |
| 1-1/2" | SBDW40 | A0075703 |
| 2" | SBDW50 | A0075704 |
| 2-1/2" | SBDW65 | A0075705 |
| 3/4" | SBDW20 | A0075700 |
| 3" | SBDW80 | A0075706 |
| 4" | SBDW94 | A0075707 |
| 6" | SBDW96 | A0075708 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP Black Steel Bevel End 90 Degree Bend: 1/2"
SKU: A0075699 | Model: SBDW15
AAP SBDW15: AAP Black Steel Bevel End 90 Degree Bend, 1/2". Pipe Size (inch): 1/2. Pipe Size (mm): 15. Length (A): 86.
