AAP Black Steel 90 Degree Bend, 1/4"
Available

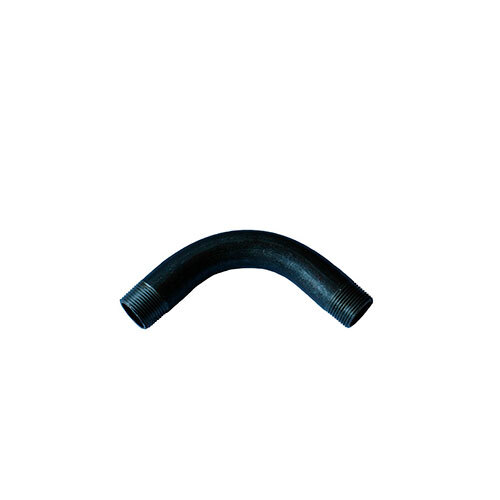

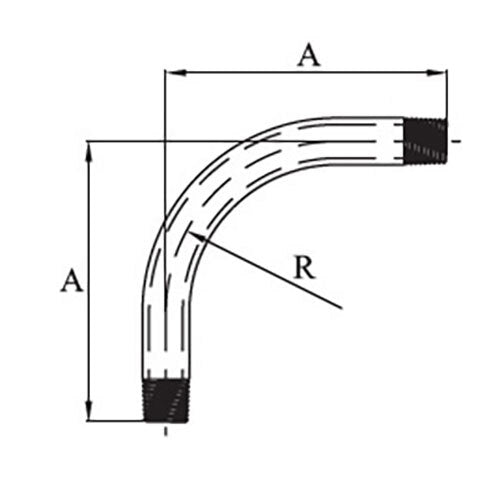

This AAP black 90° male-male bend is a mild steel fitting with BSP threads. It is supplied in 11 sizes, 1/4" (8mm) to 4" (100mm). A bend turns a pipe run through an angle with a longer sweep than an elbow. This one turns it through 90° and is threaded outside (male) at both ends. A is the length and R the radius.
It is made to BS EN 10241:2000, as a steel threaded pipe fitting. It has a black finish. All sizes other than unions are sample tested to 5.2 MPa. These are test pressures, not working pressures.
Where this product is used
- Turning threaded steel pipework through 90° with a longer sweep
- Joining two female threaded fittings at a right angle
- General threaded steel pipework
Features
- 11 sizes, 1/4" (8mm) to 4" (100mm)
- Mild steel, black, BS EN 10241:2000
- BSP threads
- Thread: BSP (British Standard Pipe) thread, ISO 7 and AS 1722 Part 1
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Black 90° male-male bend, mild steel |
| Finish | Black |
| Thread | BSP (British Standard Pipe) thread, ISO 7 and AS 1722 Part 1 |
| Ends | Male (external) thread at both ends |
| Applicable standard | BS EN 10241:2000, steel threaded pipe fittings |
| Test pressure | Sample tested to 5.2 MPa |
| Sizes | 1/4" (8mm) to 4" (100mm) (11 sizes) |
Choosing the right option
Choose the size to match your pipework. These fittings are BSP threaded, so check that your pipe or fitting is BSP and not NPT before you order.
Related AAP products: AAP Black Steel 45 Degree Bend, Male-Male, AAP Black Steel Barrel Nipple, AAP Black Steel 90 Degree Elbow, Female-Female, AAP Black Steel 90 Degree Elbow, Male-Female.
| Option | Part number | SKU |
|---|---|---|
| 1/4" | SBD08 | A0075679 |
| 3/8" | SBD10 | A0075680 |
| 1/2" | SBD15 | A0075681 |
| 3/4" | SBD20 | A0075682 |
| 1" | SBD25 | A0075683 |
| 1-1/4" | SBD32 | A0075684 |
| 1-1/2" | SBD40 | A0075685 |
| 2" | SBD50 | A0075686 |
| 2-1/2" | SBD65 | A0075687 |
| 3" | SBD80 | A0075688 |
| 4" | SBD94 | A0075689 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP Black Steel 90 Degree Bend, Male-Male: 1/4"
SKU: A0075679 | Model: SBD08
AAP SBD08: AAP Black Steel 90 Degree Bend, 1/4". Pipe Size (inch): 1/4. Pipe Size (mm): 8. Length (A): 64.
