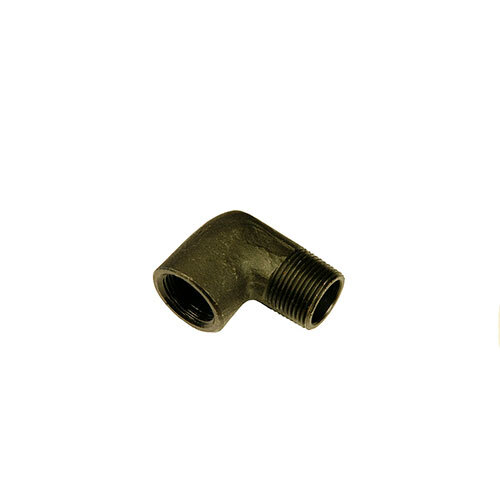

1/4 in (8 mm) Black 90 Degree Elbow, Male-Female | SEMF08
Available
This AAP black 90 degree male-female elbow is a mild steel fitting with BSP threads. It is supplied in 11 sizes, 1/4 in (8 mm) to 4 in (100 mm).
A 90 degree elbow turns a pipe run through a right angle. This one is threaded outside (male) at one end and inside (female) at the other, so it screws directly into a female port without a nipple.
AAP states that its steel threaded pipe fittings are made to BS EN 10241:2000 (manufacturer-stated). It has a black finish. AAP states that all sizes of its fittings other than unions are sample tested to 5.2 MPa (manufacturer-stated). These are test pressures, not working pressures, so confirm the pressure and temperature for your application with AIMS before you order.
Where this product is used
- Turning threaded steel pipework through 90 degrees at a female port
- Connecting a female threaded port to a male threaded pipe at a right angle
- General threaded steel pipework
Features
- 11 sizes, 1/4 in (8 mm) to 4 in (100 mm)
- Mild steel, black, BS EN 10241:2000 (manufacturer-stated)
- BSP threads
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Black 90 degree male-female elbow, mild steel |
| Finish | Black |
| Material | Mild steel. AAP lists carbon 0.25 per cent maximum and tensile strength 320 N/mm2 minimum for its steel fittings (manufacturer-stated) |
| Thread | BSP (British Standard Pipe) thread; AAP lists ISO 7 and AS 1722 Part 1 for its threads (manufacturer-stated) |
| Ends | Male (external) thread at one end, female (internal) thread at the other |
| Applicable standard (manufacturer-stated) | BS EN 10241:2000, steel threaded pipe fittings (manufacturer-stated) |
| Test pressure (manufacturer-stated) | Sample tested to 5.2 MPa |
| Sizes | 1/4 in (8 mm) to 4 in (100 mm) (11 sizes) |
Options and part numbers
| Size | Part number | Length A (mm) | Outside dia. C (mm) | Weight (kg) |
|---|---|---|---|---|
| 1/4 in (8 mm) | SEMF08 | 40 | 19 | 0.05 |
| 3/8 in (10 mm) | SEMF10 | 44 | 22 | 0.07 |
| 1/2 in (15 mm) | SEMF15 | 58 | 28 | 0.17 |
| 3/4 in (20 mm) | SEMF20 | 67 | 34 | 0.22 |
| 1 in (25 mm) | SEMF25 | 70 | 43 | 0.35 |
| 1-1/4 in (32 mm) | SEMF32 | 90 | 50 | 0.61 |
| 1-1/2 in (40 mm) | SEMF40 | 97 | 57 | 0.82 |
| 2 in (50 mm) | SEMF50 | 115 | 70 | 1.15 |
| 2-1/2 in (65 mm) | SEMF65 | 150 | 89 | 2.09 |
| 3 in (80 mm) | SEMF80 | 160 | 98 | 2.48 |
| 4 in (100 mm) | SEMF94 | 187 | 126 | 4.45 |

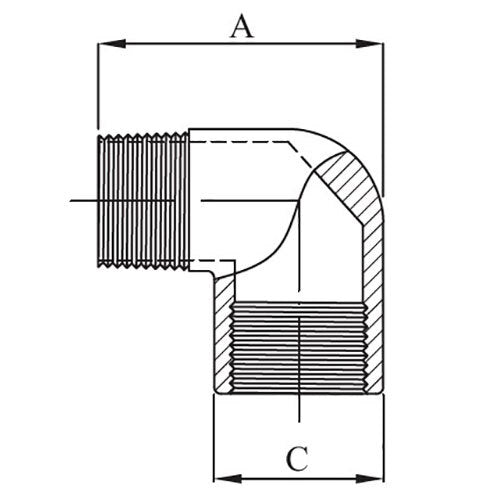

A is the length and C the outside diameter of the body, as lettered on the AAP drawing, in millimetres. Weights are approximate, in kilograms per piece.
Selecting the right option
Choose the size to match your pipework. These fittings are BSP threaded, so check that your pipe or fitting is BSP and not NPT before you order.
Related products
See also AAP Black Steel 90 Degree Elbow, Female-Female, AAP Black Steel 45 Degree Elbow, Female-Female, AAP Black Steel Equal Tee and AAP Black Steel Hexagon Nipple.
