AAP Barrel Nipple Black Steel
AAP Barrel Nipple Black Steel
AAP Barrel Nipple Black Steel
AAP Barrel Nipple Black Steel
AAP Barrel Nipple Black Steel
AAP Barrel Nipple Black Steel

1/8 in (6 mm) x 40 mm long Black Barrel Nipple | SPN0640

$2.12
$2.12
Inc. GST

Available

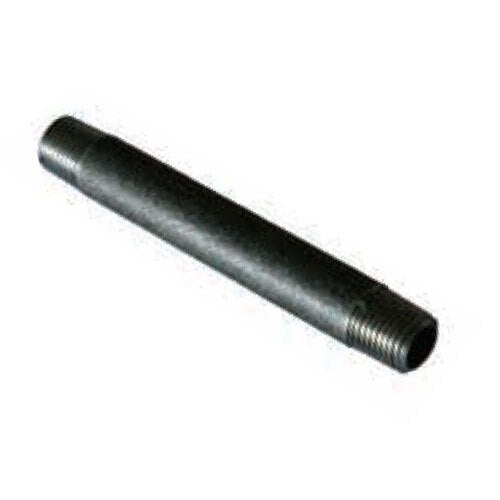

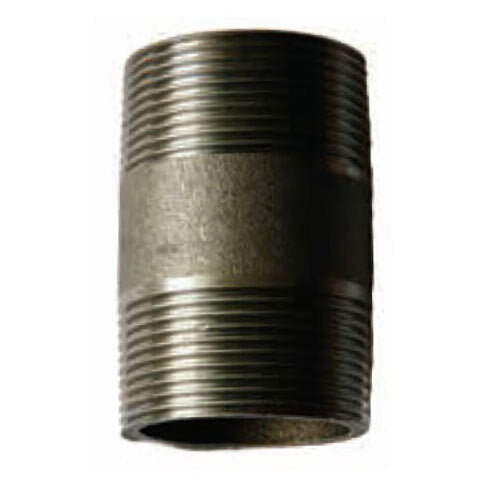

This AAP black barrel nipple is a mild steel fitting with BSP threads. It is supplied in 62 sizes, 1/8 in (6 mm) to 4 in (100 mm).

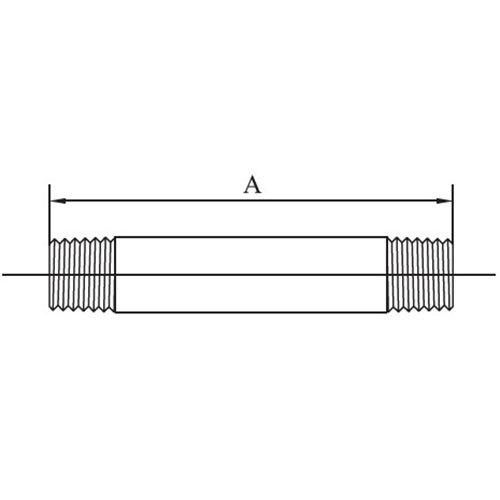

A barrel nipple is a length of pipe with a male thread at each end. It joins two female threaded fittings and gives a spacing set by its length. AAP lists it in heavy pipe, in several lengths per size. A is the overall length, as lettered on the AAP drawing.

AAP states that its steel threaded pipe fittings are made to BS EN 10241:2000 (manufacturer-stated). It has a black finish. AAP states that all sizes of its fittings other than unions are sample tested to 5.2 MPa (manufacturer-stated). These are test pressures, not working pressures, so confirm the pressure and temperature for your application with AIMS before you order.

Where this product is used

  • Joining two female threaded fittings with a set spacing
  • Extending a threaded steel pipe run by a short length
  • General threaded steel pipework

Features

  • 62 sizes, 1/8 in (6 mm) to 4 in (100 mm)
  • Mild steel, black, BS EN 10241:2000 (manufacturer-stated)
  • BSP threads

Key specifications

Specification Detail
Brand AAP
Product Black barrel nipple, mild steel
Finish Black
Material Mild steel. AAP lists carbon 0.25 per cent maximum and tensile strength 320 N/mm2 minimum for its steel fittings (manufacturer-stated)
Thread BSP (British Standard Pipe) thread; AAP lists ISO 7 and AS 1722 Part 1 for its threads (manufacturer-stated)
Ends Male (external) thread at both ends
Applicable standard (manufacturer-stated) BS EN 10241:2000, steel threaded pipe fittings (manufacturer-stated)
Test pressure (manufacturer-stated) Sample tested to 5.2 MPa
Sizes 1/8 in (6 mm) to 4 in (100 mm) (62 sizes)

Options and part numbers

Size Part number Length A (mm) Weight (kg)
1/8 in (6 mm) x 40 mm long SPN0640 40 0.03
1/8 in (6 mm) x 60 mm long SPN0660 60 0.04
1/8 in (6 mm) x 80 mm long SPN0680 80 0.06
1/4 in (8 mm) x 40 mm long SPN08 40 0.02
1/4 in (8 mm) x 60 mm long SPN0860 60 0.03
1/4 in (8 mm) x 80 mm long SPN0880 80 0.04
1/4 in (8 mm) x 100 mm long SPN0894 100 0.05
1/4 in (8 mm) x 120 mm long SPN08120 120 0.06
1/4 in (8 mm) x 140 mm long SPN08140 140 0.07
3/8 in (10 mm) x 40 mm long SPN10 40 0.03
3/8 in (10 mm) x 60 mm long SPN1060 60 0.05
3/8 in (10 mm) x 80 mm long SPN1080 80 0.06
3/8 in (10 mm) x 100 mm long SPN1094 100 0.08
3/8 in (10 mm) x 140 mm long SPN10140 140 0.11
1/2 in (15 mm) x 40 mm long SPN1540 40 0.03
1/2 in (15 mm) x 51 mm long SPN15 51 0.04
1/2 in (15 mm) x 60 mm long SPN1560 60 0.05
1/2 in (15 mm) x 80 mm long SPN1580 80 0.06
1/2 in (15 mm) x 100 mm long SPN1594 100 0.08
1/2 in (15 mm) x 120 mm long SPN15120 120 0.09
1/2 in (15 mm) x 140 mm long SPN15140 140 0.11
3/4 in (20 mm) x 54 mm long SPN20 54 0.08
3/4 in (20 mm) x 60 mm long SPN2060 60 0.09
3/4 in (20 mm) x 80 mm long SPN2080 80 0.12
3/4 in (20 mm) x 100 mm long SPN2094 100 0.15
3/4 in (20 mm) x 120 mm long SPN20120 120 0.18
3/4 in (20 mm) x 140 mm long SPN20140 140 0.21
1 in (25 mm) x 60 mm long SPN25 60 0.16
1 in (25 mm) x 80 mm long SPN2580 80 0.21
1 in (25 mm) x 100 mm long SPN2594 100 0.27
1 in (25 mm) x 120 mm long SPN25120 120 0.32
1 in (25 mm) x 140 mm long SPN25140 140 0.37
1-1/4 in (32 mm) x 60 mm long SPN3260 60 0.16
1-1/4 in (32 mm) x 70 mm long SPN32 70 0.19
1-1/4 in (32 mm) x 80 mm long SPN3280 80 0.22
1-1/4 in (32 mm) x 100 mm long SPN3294 100 0.27
1-1/4 in (32 mm) x 120 mm long SPN32120 120 0.33
1-1/4 in (32 mm) x 140 mm long SPN32140 140 0.38
1-1/2 in (40 mm) x 60 mm long SPN4060 60 0.22
1-1/2 in (40 mm) x 70 mm long SPN40 70 0.26
1-1/2 in (40 mm) x 80 mm long SPN4080 80 0.3
1-1/2 in (40 mm) x 100 mm long SPN4094 100 0.37
1-1/2 in (40 mm) x 120 mm long SPN40120 120 0.45
1-1/2 in (40 mm) x 140 mm long SPN40140 140 0.52
1-1/2 in (40 mm) x 200 mm long SPN4098 200 0.74
2 in (50 mm) x 80 mm long SPN50 80 0.4
2 in (50 mm) x 100 mm long SPN5094 100 0.5
2 in (50 mm) x 120 mm long SPN50120 120 0.6
2 in (50 mm) x 140 mm long SPN50140 140 0.7
2-1/2 in (65 mm) x 80 mm long SPN6580 80 0.5
2-1/2 in (65 mm) x 89 mm long SPN65 89 0.56
2-1/2 in (65 mm) x 100 mm long SPN6594 100 0.63
2-1/2 in (65 mm) x 120 mm long SPN65120 120 0.76
2-1/2 in (65 mm) x 140 mm long SPN65140 140 0.88
3 in (80 mm) x 80 mm long SPN8080 80 0.69
3 in (80 mm) x 100 mm long SPN80 100 0.86
3 in (80 mm) x 120 mm long SPN80120 120 1.03
3 in (80 mm) x 140 mm long SPN80140 140 1.2
4 in (100 mm) x 100 mm long SPN9494 100 1.32
4 in (100 mm) x 114 mm long SPN94 114 1.5
4 in (100 mm) x 120 mm long SPN94120 120 1.58
4 in (100 mm) x 140 mm long SPN94140 140 1.84

A is the overall length, as lettered on the AAP drawing, in millimetres. Weights are approximate, in kilograms per piece.

Selecting the right option

Choose the size to match your pipework. These fittings are BSP threaded, so check that your pipe or fitting is BSP and not NPT before you order. Each size is listed in the lengths AAP makes, so check the length (A) as well as the thread size. AAP also lists a size (SPN0694) in this range, which AIMS does not currently list. Ask if you need one.

Related products

See also AAP Black Steel Close Nipple, AAP Black Steel Hexagon Nipple, AAP Black Steel Socket, Heavy Type and AAP Black Steel 90 Degree Bend, Male-Male.
Product Highlights −

This AAP black barrel nipple is a mild steel fitting with BSP threads. It is supplied in 62 sizes, 1/8 in (6 mm) to 4 in (100 mm).

A barrel nipple is a length of pipe with a male thread at each end. It joins two female threaded fittings and gives a spacing set by its length. AAP lists it in heavy pipe, in several lengths per size. A is the overall length, as lettered on the AAP drawing.
