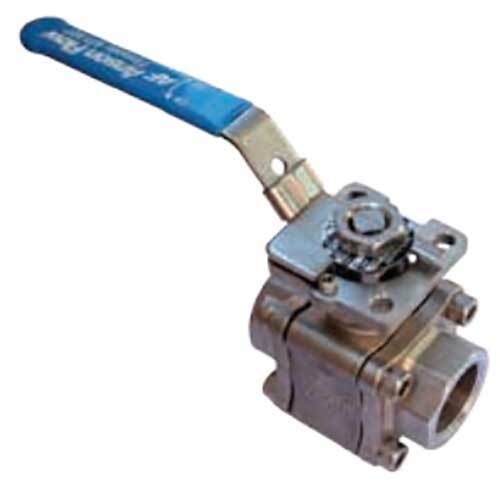

AAP Ball Valve 3-PCE Class 800 Fire Safe 1

Description

AAP Ball Valve Fire Safe

Thread (NPT)
ANSI B1.20.1
Cold Working Pressure
2000 PSI (13'789 kPa)
Max Working Temperature
200¬∞C
Mounting Pad *
ISO 5211
Inspection and Testing
API 598
Face to Face/End to End
ASME B16.10

* 1/4" - 1/2" Not Direct Mounting

Materials

PART
STAINLESS STEEL
Body
ASTM A351 CF8M
End Cap
ASTM A351 CF8M
Ball
ASTM A351 CF8M/316
Seat
PTFE
Gasket
PTFE
Thrust Washer
PTFE
Stem Packing
Graphite
Gland
AISI 304
Belleville Washer
AISI 304
Stem
ASTM A276 316
Packing Nut
AISI 304
Spring Washer
AISI 304
Handle Nut
AISI 304
Bolt
ASTM A193 B8
Handle
AISI 304
Handle Grip
Vinil Plastisol
Lock Saddle
AISI 304
O-Ring
Viton
Stopper Nut
AISI 304
Anti-Static Device
AISI 304

About Ball Valves:

A ball valve is a valve with a spherical ball with an orifice straight through mounted between teflon seats in either a screwed or flanged body in various materials.
When the orifice is in line with both ends of the valve flow will occur.
When the valve is closed the orifice is perpendicular to the ends of the valve.
The lever/handle will be in line with the orifice position, an indication of the valve position.

Specifications

Specifications

Applications

Applications: W.O.G.

Features & Benefits

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

AAP Ball Valve 3-PCE Class 800 Fire Safe

SKU: A0078700

Type: Ball Valve

$146.64

Tax included. Shipping calculated at checkout.

Wide Range
Reliable Services
Proven Trust

Available

The AAP Ball Valve 3-PCE Class 800 Fire Safe by AAP is a Ball Valve in stainless steel. It offers a Cold Working Pressure of 2000 PSI (13'789 kPa) and is for W.O.G.
