1/4 in (8 mm) Stainless Steel Ball Valve, 3-Piece | SS3BV08
Available

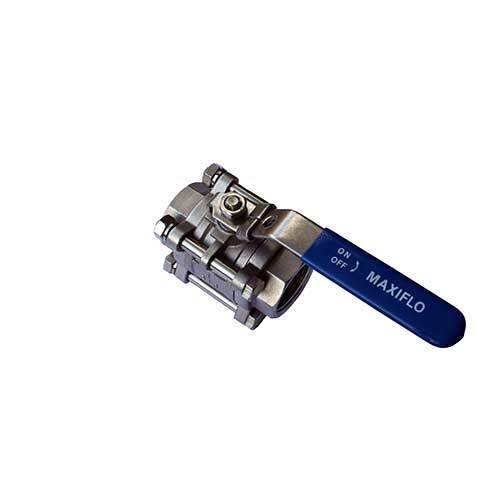

This AAP stainless steel ball valve is a 3-piece full bore valve with a 316 stainless steel lever with a locking device. It is supplied in 11 sizes from 1/4 in (8 mm) to 4 in (100 mm).
A ball valve turns a ball with a hole through it between sealing seats. When the lever or handle is in line with the pipe the hole lines up with the flow and the valve is open, and a quarter turn closes it. AAP notes that the handle sits in line with the port, so it shows the valve position.
AAP gives a maximum working temperature of 180 degrees C and a cold working pressure of 6,895 kPa (68.95 bar), with a body in CF8M, a 316 stainless steel ball and stem, and a PTFE (Teflon) seat (manufacturer-stated). It suits air, water and hot or cold corrosive fluids in harsh environments, per the manufacturer.
A 3-piece valve has a centre body held between two end pieces, so the centre section can be removed for servicing while the end pieces stay in the pipeline. It has a full bore, so flow is passed with little restriction.
Where this product is used
- Air, water and hot or cold corrosive fluid lines
- Chemical, food and process pipework in harsh environments
- Marine, coastal and washdown areas
- General industrial isolation where brass is not suitable
Features
- 11 sizes from 1/4 in (8 mm) to 4 in (100 mm)
- 3-piece body, full bore
- Stainless steel lever with a locking device
- 316 stainless steel ball and stem with a PTFE seat
- Thread to AS 1722.1 (manufacturer-stated)
- Cold working pressure 6,895 kPa (68.95 bar), maximum 180 degrees C (manufacturer-stated)
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | 3-piece full bore ball valve |
| Body | CF8M stainless steel |
| Ball and stem | 316 stainless steel |
| Seat | PTFE (Teflon) |
| Construction | 3-piece, full bore |
| Lever | 316 stainless steel with a locking device |
| Thread (manufacturer-stated) | AS 1722.1 |
| Cold working pressure (manufacturer-stated) | 6,895 kPa (68.95 bar) |
| Maximum temperature (manufacturer-stated) | 180 degrees C |
| Sizes | 1/4 in (8 mm) to 4 in (100 mm) (11 sizes) |
Options and part numbers

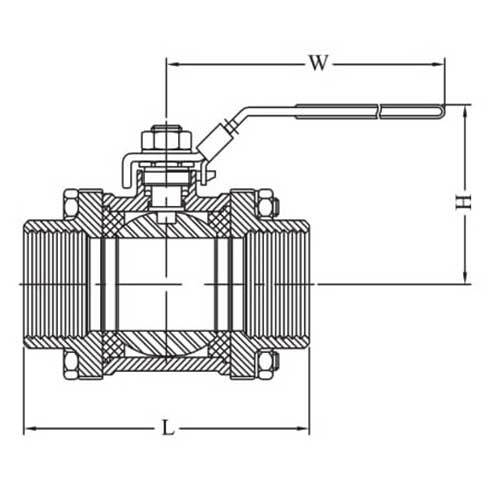

| Size | Part number | Length L (mm) | Handle height H (mm) | Handle length W (mm) | Torque (N.m) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1/4 in (8 mm) | SS3BV08 | 50 | 48 | 100 | 4.52 | 0.29 |
| 3/8 in (10 mm) | SS3BV10 | 50 | 48 | 100 | 4.52 | 0.29 |
| 1/2 in (15 mm) | SS3BV15 | 63.4 | 52 | 100 | 4.86 | 0.39 |
| 3/4 in (20 mm) | SS3BV20 | 71 | 61 | 127 | 7.34 | 0.61 |
| 1 in (25 mm) | SS3BV25 | 80.6 | 65 | 127 | 11.41 | 0.86 |
| 1-1/4 in (32 mm) | SS3BV32 | 94 | 79 | 154 | 17.85 | 1.37 |
| 1-1/2 in (40 mm) | SS3BV40 | 104 | 83 | 154 | 21.13 | 2.04 |
| 2 in (50 mm) | SS3BV50 | 126.4 | 97 | 192 | 25.99 | 3.74 |
| 2-1/2 in (65 mm) | SS3BV65 | 160 | 135 | 244 | 48.58 | 6.44 |
| 3 in (80 mm) | SS3BV80 | 179.5 | 144 | 244 | 155.92 | 10.2 |
| 4 in (100 mm) | SS3BV100 | 220 | 157 | 280 | 271.16 | 20.49 |
Torque is converted from the in-lb figures AAP lists (1 in-lb is 0.113 N.m).
Selecting the right option
Choose the size to match your pipe thread. The 3-piece valve suits lines that will need servicing, and AAP also lists a 3-piece version with an actuator mounting pad.
