1/2 in (15 mm) Stainless Steel Ball Valve, 3-Piece, Mounting Pad | SS3BV15MP
Available

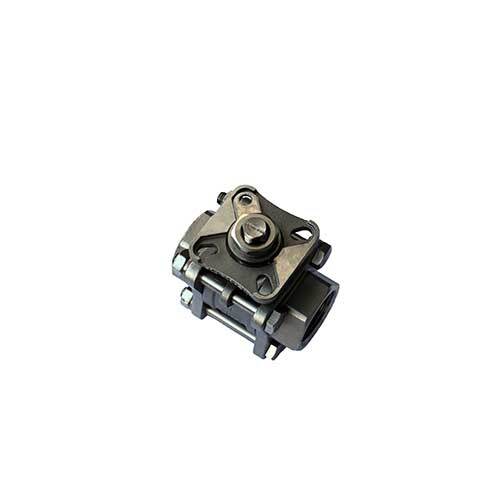

This AAP stainless steel ball valve is a 3-piece valve with an ISO 5211 actuator mounting pad. It is supplied in 9 sizes from 1/2 in (15 mm) to 4 in (100 mm).
A ball valve turns a ball with a hole through it between sealing seats. When the lever or handle is in line with the pipe the hole lines up with the flow and the valve is open, and a quarter turn closes it. AAP notes that the handle sits in line with the port, so it shows the valve position.
AAP gives a maximum working temperature of 180 degrees C and a cold working pressure of 6,895 kPa (68.95 bar), with a body in CF8M, a 316 stainless steel ball and stem, and a PTFE (Teflon) seat (manufacturer-stated). It suits air, water and hot or cold corrosive fluids in harsh environments, per the manufacturer.

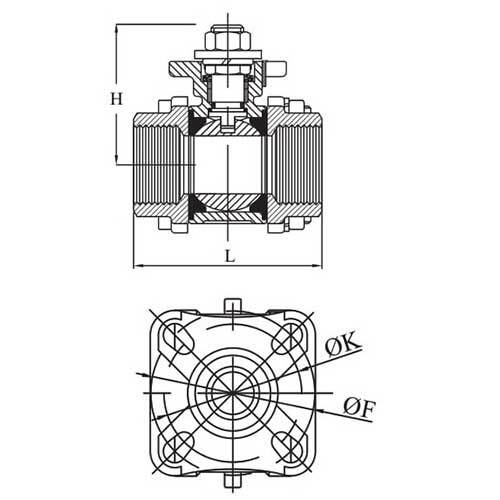

The ISO 5211 mounting pad lets a pneumatic or electric actuator be fitted directly in place of a lever, for remote or automated shut-off. The catalogue lists the pad dimensions K and F as diameters; check them against your actuator before you order.
Where this product is used
- Automated shut-off with pneumatic or electric actuators
- Process lines in food, chemical and marine duties
- Remote-operated isolation of air, water and corrosive fluids
- Skid and plant pipework designed around actuation
Features
- 9 sizes from 1/2 in (15 mm) to 4 in (100 mm)
- ISO 5211 actuator mounting pad (manufacturer-stated)
- 3-piece body
- 316 stainless steel ball and stem with a PTFE seat
- Thread to AS 1722.1 (manufacturer-stated)
- Cold working pressure 6,895 kPa (68.95 bar), maximum 180 degrees C (manufacturer-stated)
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | 3-piece ball valve with ISO 5211 mounting pad |
| Body | CF8M stainless steel |
| Ball and stem | 316 stainless steel |
| Seat | PTFE (Teflon) |
| Construction | 3-piece |
| Actuator mounting | ISO 5211 pad |
| Thread (manufacturer-stated) | AS 1722.1 |
| Cold working pressure (manufacturer-stated) | 6,895 kPa (68.95 bar) |
| Maximum temperature (manufacturer-stated) | 180 degrees C |
| Sizes | 1/2 in (15 mm) to 4 in (100 mm) (9 sizes) |
Options and part numbers
| Size | Part number | Length L (mm) | Handle height H (mm) | Diameter K (mm) | Diameter F (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1/2 in (15 mm) | SS3BV15MP | 55 | 58.8 | 42 | 42 | 0.44 |
| 3/4 in (20 mm) | SS3BV20MP | 73.6 | 64.7 | 42 | 50 | 0.83 |
| 1 in (25 mm) | SS3BV25MP | 81 | 67.4 | 42 | 50 | 1.04 |
| 1-1/4 in (32 mm) | SS3BV32MP | 91 | 80 | 50 | 70 | 1.84 |
| 1-1/2 in (40 mm) | SS3BV40MP | 103 | 95.5 | 50 | 70 | 2.48 |
| 2 in (50 mm) | SS3BV50MP | 120 | 93 | 50 | 70 | 3.57 |
| 2-1/2 in (65 mm) | SS3BV65MP | 155 | 140.4 | 70 | 102 | 8.67 |
| 3 in (80 mm) | SS3BV80MP | 182 | 151.5 | 70 | 102 | 12.6 |
| 4 in (100 mm) | SS3BV100MP | 218.4 | 165 | 70 | 102 | 19.65 |
Selecting the right option
Choose the size to match your pipe thread and check the pad dimensions K and F against your actuator mounting. The listing is for the valve body with mounting pad, and the catalogue does not list an actuator or a lever for it.
Related products
See also AAP Stainless Steel Ball Valve, 3-Piece, Full Bore, AAP Stainless Steel Ball Valve, 2-Piece, Full Bore and AAP Stainless Steel 3-Way Ball Valve, L-Port.
