AAP Black Steel Female Union, 1/4"
Available

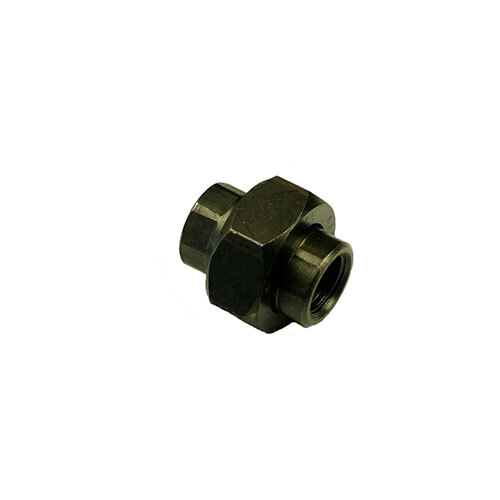

This AAP black female union is a mild steel fitting with BSP threads. It is supplied in 11 sizes, 1/4" (8mm) to 4" (100mm). A union joins two pipes with a joint that can be broken and made again without turning the pipework. This one is threaded inside (female) at both ends and has a ball to cone seat. This page covers the AAP Black Steel Female Union, Bronze-Bronze Seat, available in 11 thread & pipe size (inch) options: 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" and 3 more.
This one has a bronze-bronze seat. Bronze-bronze (BB) seats are recommended where corrosion from the fluid or condensation is a major factor and the union is disconnected constantly, and as well suited to steam lines. It is made to BS EN 10241:2000, as a steel threaded pipe fitting. It has a black finish. Unions up to 2" nominal bore are each tested to 13.8 MPa and sample tested to 20.7 MPa, and unions over 2" are each tested to 10.3 MPa. These are test pressures, not working pressures.
Where this product is used
- Make-and-break joints on filters, valves, hoses and machinery
- General piping that needs periodic disconnection
- Joining two male threaded pipes with a joint that can be taken apart
Features
- 11 sizes, 1/4" (8mm) to 4" (100mm)
- Mild steel, black, BS EN 10241:2000
- Bronze-Bronze seat
- BSP threads
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Black female union, mild steel |
| Finish | Black |
| Thread | BSP (British Standard Pipe) thread, ISO 7 and AS 1722 Part 1 |
| Ends | Female (internal) thread at both ends |
| Seat | Bronze-Bronze, ball to cone |
| Applicable standard | BS EN 10241:2000, steel threaded pipe fittings |
| Test pressure | Unions to 2": each 13.8 MPa, sample 20.7 MPa, over 2": each 10.3 MPa |
| Sizes | 1/4" (8mm) to 4" (100mm) (11 sizes) |
Choosing the right option
Choose the size to match your pipework. These fittings are BSP threaded, so check that your pipe or fitting is BSP and not NPT before you order.
Related AAP products: AAP Black Steel Female Union, Steel-Steel Seat, AAP Black Steel Male-Female Union, Bronze-Bronze Seat, AAP Black Steel Hexagon Nipple, AAP Black Steel Socket, Heavy Type.
| Option | Part number | SKU |
|---|---|---|
| 1/4" | SU08BB | A0075971 |
| 3/8" | SU10BB | A0075972 |
| 1/2" | SU15BB | A0075973 |
| 3/4" | SU20BB | A0075974 |
| 1" | SU25BB | A0075975 |
| 1-1/4" | SU32BB | A0075976 |
| 1-1/2" | SU40BB | A0075977 |
| 2" | SU50BB | A0075978 |
| 2-1/2" | SU65BB | A0075979 |
| 3" | SU80BB | A0075980 |
| 4" | SU94BB | A0075981 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP Black Steel Female Union, Bronze-Bronze Seat: 1/4"
SKU: A0075971 | Model: SU08BB

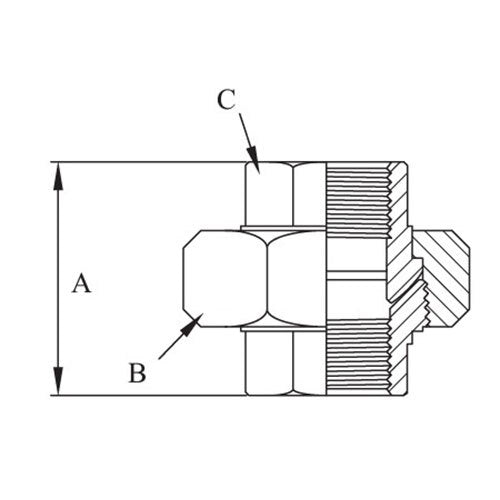

AAP SU08BB: AAP Black Steel Female Union, 1/4". Pipe Size (inch): 1/4. Pipe Size (mm): 8. Length (A): 42.
