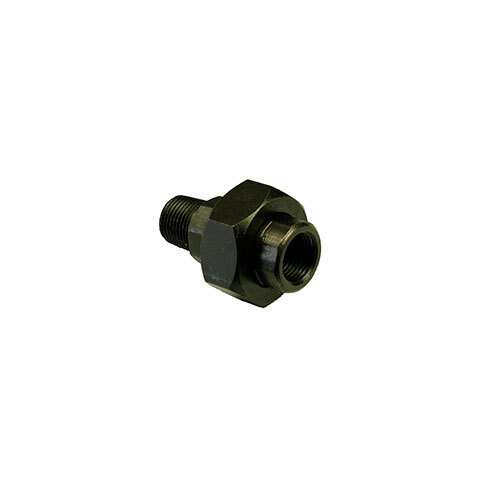

AAP Black Steel Male-Female Union, 1/4"
Available
This AAP black male-female union is a mild steel fitting with BSP threads. It is supplied in 10 sizes, 1/4" (8mm) to 3" (80mm). A union joins two pipes with a joint that can be broken and made again without turning the pipework. This page covers the AAP Black Steel Male-Female Union, Steel-Steel Seat, available in 10 thread & pipe size (inch) options: 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" and 2 more.
This one has a steel-steel seat. Steel-steel (SS) seats are a general purpose combination recommended where vibration is present, with integral seats. It is made to BS EN 10241:2000, as a steel threaded pipe fitting. It has a black finish. Unions up to 2" nominal bore are each tested to 13.8 MPa and sample tested to 20.7 MPa, and unions over 2" are each tested to 10.3 MPa. These are test pressures, not working pressures.
Where this product is used
- Make-and-break joints on filters, valves, hoses and machinery
- Connecting a female threaded port to a female threaded pipe with a joint that can be taken apart
- General piping that needs periodic disconnection
Features
- 10 sizes, 1/4" (8mm) to 3" (80mm)
- Mild steel, black, BS EN 10241:2000
- Steel-Steel seat
- BSP threads
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Black male-female union, mild steel |
| Finish | Black |
| Thread | BSP (British Standard Pipe) thread, ISO 7 and AS 1722 Part 1 |
| Ends | Male (external) thread at one end, female (internal) thread at the other |
| Seat | Steel-Steel, ball to cone |
| Applicable standard | BS EN 10241:2000, steel threaded pipe fittings |
| Test pressure | Unions to 2": each 13.8 MPa, sample 20.7 MPa, over 2": each 10.3 MPa |
| Sizes | 1/4" (8mm) to 3" (80mm) (10 sizes) |
Choosing the right option
Choose the size to match your pipework. These fittings are BSP threaded, so check that your pipe or fitting is BSP and not NPT before you order.
Related AAP products: AAP Black Steel Male-Female Union, Steel-Bronze Seat, AAP Black Steel Female Union, Steel-Steel Seat, AAP Black Steel Hexagon Nipple, AAP Black Steel Socket, Heavy Type.
| Option | Part number | SKU |
|---|---|---|
| 1/4" | SU08MFSS | A0075939 |
| 3/8" | SU10MFSS | A0075940 |
| 1/2" | SU15MFSS | A0075941 |
| 3/4" | SU20MFSS | A0075942 |
| 1" | SU25MFSS | A0075943 |
| 1-1/4" | SU32MFSS | A0075944 |
| 1-1/2" | SU40MFSS | A0075945 |
| 2" | SU50MFSS | A0075946 |
| 2-1/2" | SU65MFSS | A0075947 |
| 3" | SU80MFSS | A0075948 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP Black Steel Male-Female Union, Steel-Steel Seat: 1/4"
SKU: A0075939 | Model: SU08MFSS

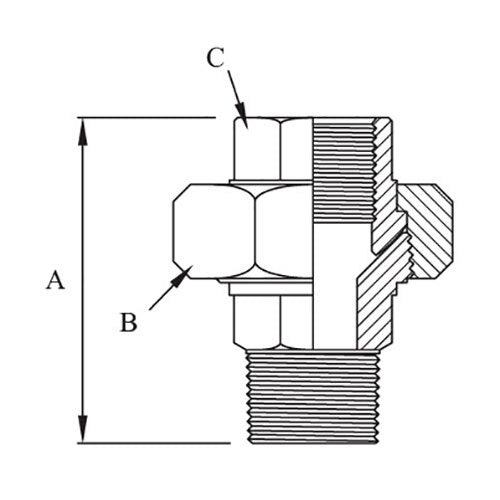

AAP SU08MFSS: AAP Black Steel Male-Female Union, 1/4". Pipe Size (inch): 1/4. Pipe Size (mm): 8. Length (A): 56.
