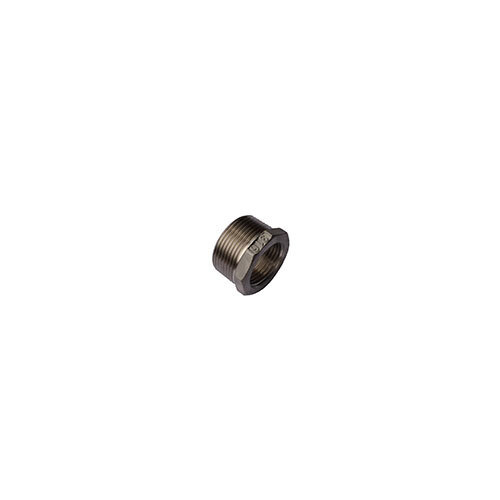

AAP 316 Stainless Steel Hex Bush, 1/4" x 1/8"
Available
This AAP hexagon head bush is grade 316 stainless steel with BSP threads. It is supplied in 28 sizes, 1/4 x 1/8" (8 x 6mm) to 4 x 3" (100 x 80mm). A bush reduces a threaded port from a larger size to a smaller one. The size is given as the larger thread first, then the smaller, for example 1/2 x 1/4. A threaded bush is normally male on the outside and female on the inside, and this one has a hexagon head for a spanner.
The 150 lb stainless steel fittings are made from grade 316 stainless steel. 150 lb refers to a maximum working pressure and temperature of 150 psi saturated steam, about 1,034 kPa.
Where this product is used
- Marine, pumping, commercial, chemical and irrigation pipework in stainless steel
- Reducing a female port to a smaller thread
- Stainless steel pipework where a spanner flat is needed to tighten the bush
Features
- 28 sizes, 1/4 x 1/8" (8 x 6mm) to 4 x 3" (100 x 80mm)
- Grade 316 stainless steel, 150 lb class
- Applicable standards include AS 1722.2 and ISO 4144
- Type: Hexagon head reducing bush
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Hexagon head bush, grade 316 stainless steel |
| Type | Hexagon head reducing bush |
| Material | Grade 316 stainless steel (316/316L composition) |
| Class | 150 lb (150 psi saturated steam) |
| Applicable standards | AS 1722.2, ISO 4144, ASTM A351, ASTM A182 |
| Mechanical properties | Tensile strength min 70,000 psi (483 MPa), yield strength min 25,000 psi (172 MPa), elongation min 35 per cent |
| Sizes | 1/4 x 1/8" (8 x 6mm) to 4 x 3" (100 x 80mm) (28 sizes) |
Choosing the right option
Choose the size to match your pipe threads, and check the thread gender at each end against the fitting it joins. Sizes are given as the larger thread first, then the smaller.
Related AAP products: AAP 316 Stainless Steel Reducing Socket, BSP Threaded, AAP 316 Stainless Steel Reducing Hex Nipple, BSP Threaded, AAP 316 Stainless Steel Coupling, BSP Threaded, AAP 316 Stainless Steel Plug, BSP Threaded.
| Option | Part number | SKU |
|---|---|---|
| 1/4" x 1/8" | SSB0806 | A0076284 |
| 1/2" x 1/4" | SSB1508 | A0076288 |
| 1/2" x 3/8" | SSB1510 | A0076289 |
| 1-1/2" x 1-1/4" | SSB4032 | A0076302 |
| 1" x 3/8" | SSB2510 | A0076294 |
| 1" x 1/2" | SSB2515 | A0076295 |
| 1" x 3/4" | SSB2520 | A0076296 |
| 1-1/4" x 1/2" | SSB3215 | A0076297 |
| 1-1/4" x 3/4" | SSB3220 | A0076298 |
| 1-1/4" x 1" | SSB3225 | A0076299 |
| 1-1/2" x 3/4" | SSB4020 | A0076300 |
| 1-1/2" x 1" | SSB4025 | A0076301 |
| 2" x 3/4" | SSB5020 | A0076303 |
| 2" x 1" | SSB5025 | A0076304 |
| 2" x 1-1/4" | SSB5032 | A0076305 |
| 2" x 1-1/2" | SSB5040 | A0076306 |
| 2-1/2" x 1-1/2" | SSB6540 | A0076307 |
| 2-1/2" x 2" | SSB6550 | A0076308 |
| 3/8" x 1/4" | SSB1008 | A0076286 |
| 3/4" x 1/4" | SSB2008 | A0076290 |
| 3/4" x 3/8" | SSB2010 | A0076291 |
| 3/4" x 1/2" | SSB2015 | A0076292 |
| 3" x 1-1/2" | SSB8040 | A0076309 |
| 3" x 2" | SSB8050 | A0076310 |
| 3" x 2-1/2" | SSB8065 | A0076311 |
| 4" x 2" | SSB10050 | A0076312 |
| 4" x 2-1/2" | SSB10065 | A0076313 |
| 4" x 3" | SSB10080 | A0076314 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP 316 Stainless Steel Hex Bush, BSP Threaded: 1/4" x 1/8"
SKU: A0076284 | Model: SSB0806

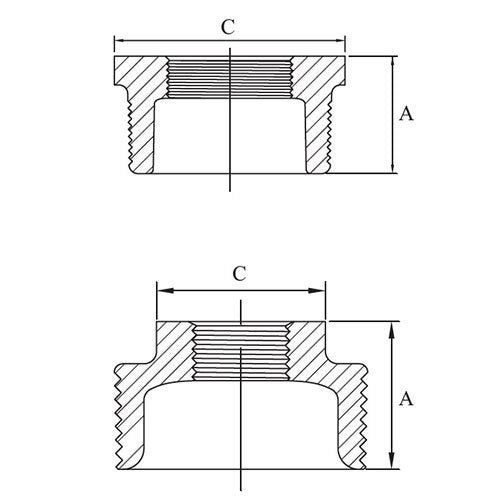

AAP SSB0806: AAP 316 Stainless Steel Hex Bush, 1/4" x 1/8". Pipe Size (inch): 1/4 x 1/8. Pipe Size (mm): 8 x 6. Length (A): 17.
