AAP 316 Stainless Steel Coupling, 1/8"
Available

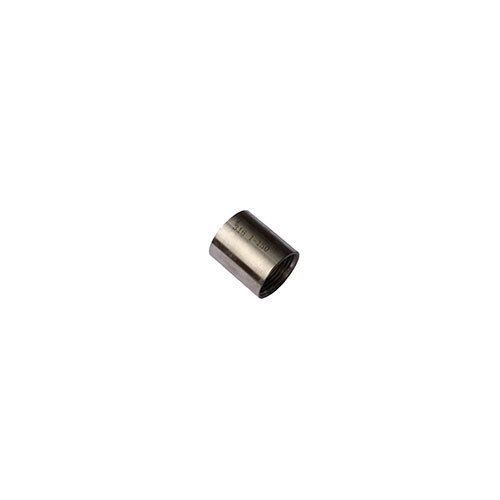

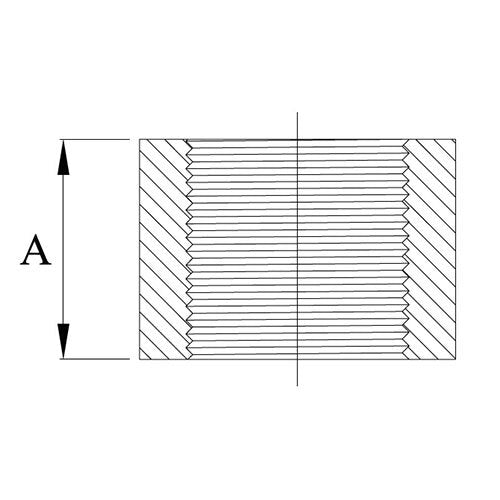

This AAP coupling is grade 316 stainless steel with BSP threads. It is supplied in 12 sizes, 1/8" (6mm) to 4" (100mm). A coupling joins two male threaded pipes or fittings of the same size. It is threaded inside at both ends. A is its overall length.
The 150 lb stainless steel fittings are made from grade 316 stainless steel. 150 lb refers to a maximum working pressure and temperature of 150 psi saturated steam, about 1,034 kPa.
Where this product is used
- Marine, pumping, commercial, chemical and irrigation pipework in stainless steel
- Joining two male threaded pipes of the same size
- Extending a threaded stainless steel pipe run
Features
- 12 sizes, 1/8" (6mm) to 4" (100mm)
- Grade 316 stainless steel, 150 lb class
- Applicable standards include AS 1722.2 and ISO 4144
- Type: Socket coupling, internal thread both ends
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Coupling, grade 316 stainless steel |
| Type | Socket coupling, internal thread both ends |
| Material | Grade 316 stainless steel (316/316L composition) |
| Class | 150 lb (150 psi saturated steam) |
| Applicable standards | AS 1722.2, ISO 4144, ASTM A351, ASTM A182 |
| Mechanical properties | Tensile strength min 70,000 psi (483 MPa), yield strength min 25,000 psi (172 MPa), elongation min 35 per cent |
| Sizes | 1/8" (6mm) to 4" (100mm) (12 sizes) |
Choosing the right option
Choose the size to match your pipe threads, and check the thread gender at each end against the fitting it joins.
Related AAP products: AAP 316 Stainless Steel Half Coupling, BSP Threaded, AAP 316 Stainless Steel Reducing Socket, BSP Threaded, AAP 316 Stainless Steel Barrel Nipple, BSP Threaded, AAP 316 Stainless Steel Union, Female x Female, BSP Threaded.
| Option | Part number | SKU |
|---|---|---|
| 1/8" | SSCP06 | A0076346 |
| 1/4" | SSCP08 | A0076347 |
| 1/2" | SSCP15 | A0076349 |
| 1" | SSCP25 | A0076351 |
| 1-1/4" | SSCP32 | A0076352 |
| 1-1/2" | SSCP40 | A0076353 |
| 2" | SSCP50 | A0076354 |
| 2-1/2" | SSCP65 | A0076355 |
| 3/8" | SSCP10 | A0076348 |
| 3/4" | SSCP20 | A0076350 |
| 3" | SSCP80 | A0076356 |
| 4" | SSCP100 | A0076357 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP 316 Stainless Steel Coupling, BSP Threaded: 1/8"
SKU: A0076346 | Model: SSCP06
AAP SSCP06: AAP 316 Stainless Steel Coupling, 1/8". Pipe Size (inch): 1/8. Pipe Size (mm): 6. Length (A): 16.
