AAP 316 Stainless Steel Reducing Socket, 8 x 6mm
Available

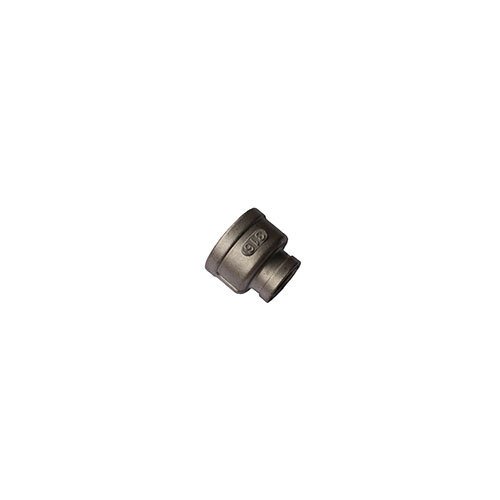

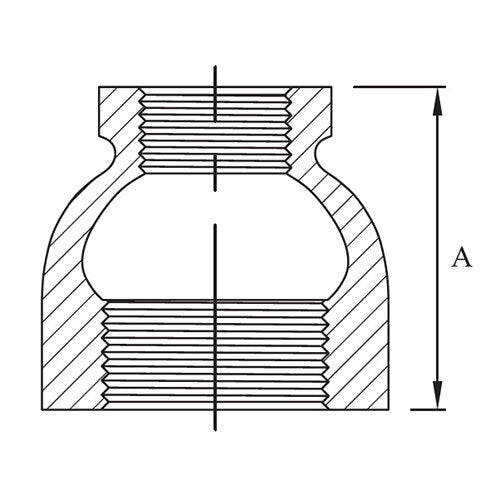

This AAP reducing socket is grade 316 stainless steel with BSP threads. It is supplied in 25 sizes, 1/4 x 1/8" (8 x 6mm) to 4 x 3" (100 x 80mm). A reducing socket joins two male threaded pipes of different sizes. It is threaded inside at both ends. The size is given as the larger thread first, then the smaller. A is its overall length.
The 150 lb stainless steel fittings are made from grade 316 stainless steel. 150 lb refers to a maximum working pressure and temperature of 150 psi saturated steam, about 1,034 kPa.
Where this product is used
- Marine, pumping, commercial, chemical and irrigation pipework in stainless steel
- Joining two male threaded pipes of different sizes
- Stepping a threaded stainless steel pipe run down in size
Features
- 25 sizes, 1/4 x 1/8" (8 x 6mm) to 4 x 3" (100 x 80mm)
- Grade 316 stainless steel, 150 lb class
- Applicable standards include AS 1722.2 and ISO 4144
- Type: Reducing socket, internal thread both ends
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Reducing socket, grade 316 stainless steel |
| Type | Reducing socket, internal thread both ends |
| Material | Grade 316 stainless steel (316/316L composition) |
| Class | 150 lb (150 psi saturated steam) |
| Applicable standards | AS 1722.2, ISO 4144, ASTM A351, ASTM A182 |
| Mechanical properties | Tensile strength min 70,000 psi (483 MPa), yield strength min 25,000 psi (172 MPa), elongation min 35 per cent |
| Sizes | 1/4 x 1/8" (8 x 6mm) to 4 x 3" (100 x 80mm) (25 sizes) |
Choosing the right option
Choose the size to match your pipe threads, and check the thread gender at each end against the fitting it joins. Sizes are given as the larger thread first, then the smaller.
Related AAP products: AAP 316 Stainless Steel Hex Bush, BSP Threaded, AAP 316 Stainless Steel Reducing Hex Nipple, BSP Threaded, AAP 316 Stainless Steel Coupling, BSP Threaded, AAP 316 Stainless Steel Half Coupling, BSP Threaded.
| Option | Part number | SKU |
|---|---|---|
| 8 x 6 | SSS0806 | A0076499 |
| 10 x 8 | SSS1008 | A0076500 |
| 15 x 8 | SSS1508 | A0076501 |
| 15 x 10 | SSS1510 | A0076502 |
| 20 x 10 | SSS2010 | A0076503 |
| 20 x 15 | SSS2015 | A0076504 |
| 25 x 10 | SSS2510 | A0076505 |
| 25 x 15 | SSS2515 | A0076506 |
| 25 x 20 | SSS2520 | A0076507 |
| 32 x 15 | SSS3215 | A0076508 |
| 32 x 20 | SSS3220 | A0076509 |
| 32 x 25 | SSS3225 | A0076510 |
| 40 x 25 | SSS4025 | A0076512 |
| 40 x 32 | SSS4032 | A0076513 |
| 50 x 25 | SSS5025 | A0076514 |
| 50 x 32 | SSS5032 | A0076515 |
| 50 x 40 | SSS5040 | A0076516 |
| 65 x 40 | SSS6540 | A0076517 |
| 65 x 50 | SSS6550 | A0076518 |
| 80 x 40 | SSS8040 | A0076519 |
| 80 x 50 | SSS8050 | A0076520 |
| 80 x 65 | SSS8065 | A0076521 |
| 100 x 50 | SSS10050 | A0076522 |
| 100 x 65 | SSS10065 | A0076523 |
| 100 x 80 | SSS10080 | A0076524 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP 316 Stainless Steel Reducing Socket, BSP Threaded: 8 x 6
SKU: A0076499 | Model: SSS0806
AAP SSS0806: AAP 316 Stainless Steel Reducing Socket, 8 x 6mm. Nominal Pipe Size (inch): 1/4 x 1/8. Nominal Pipe Size (mm): 8 x 6. Length (A): 26.
