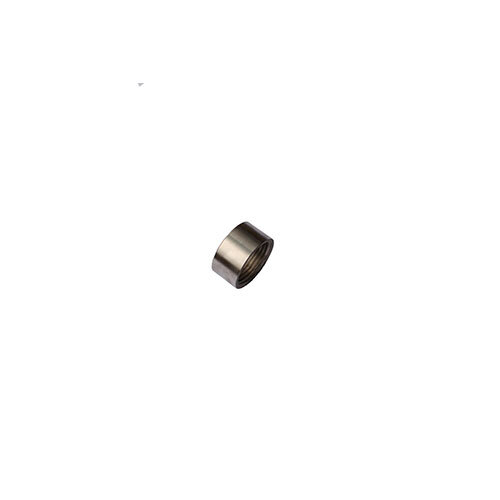

AAP 316 Stainless Steel Half Coupling, 1/2"
Available
This AAP half coupling is grade 316 stainless steel with BSP threads. It is supplied in 6 sizes, 1/2" (15mm) to 2" (50mm). A half coupling is a short fitting with an internal thread at one end. It is normally welded to a pipe or vessel at the other end to make a threaded outlet.
The 150 lb stainless steel fittings are made from grade 316 stainless steel. 150 lb refers to a maximum working pressure and temperature of 150 psi saturated steam, about 1,034 kPa.
Where this product is used
- Marine, pumping, commercial, chemical and irrigation pipework in stainless steel
- Making a threaded outlet on a pipe or vessel by welding
- Instrument and drain connections on stainless steel pipework
Features
- 6 sizes, 1/2" (15mm) to 2" (50mm)
- Grade 316 stainless steel, 150 lb class
- Applicable standards include AS 1722.2 and ISO 4144
- Type: Half coupling, internal thread one end
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Half coupling, grade 316 stainless steel |
| Type | Half coupling, internal thread one end |
| Material | Grade 316 stainless steel (316/316L composition) |
| Class | 150 lb (150 psi saturated steam) |
| Applicable standards | AS 1722.2, ISO 4144, ASTM A351, ASTM A182 |
| Mechanical properties | Tensile strength min 70,000 psi (483 MPa), yield strength min 25,000 psi (172 MPa), elongation min 35 per cent |
| Sizes | 1/2" (15mm) to 2" (50mm) (6 sizes) |
Choosing the right option
Choose the size to match the thread it screws onto or into, and check the thread gender against the fitting it joins.
Related AAP products: AAP 316 Stainless Steel Coupling, BSP Threaded, AAP 316 Stainless Steel Weld Nipple, BSP Threaded, AAP 316 Stainless Steel Plug, BSP Threaded, AAP 316 Stainless Steel Cap, BSP Threaded.
| Option | Part number | SKU |
|---|---|---|
| 1/2" | SSCH15 | A0076339 |
| 1" | SSCH25 | A0076341 |
| 1-1/4" | SSCH32 | A0076342 |
| 1-1/2" | SSCH40 | A0076343 |
| 2" | SSCH50 | A0076344 |
| 3/4" | SSCH20 | A0076340 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP 316 Stainless Steel Half Coupling, BSP Threaded: 1/2"
SKU: A0076339 | Model: SSCH15

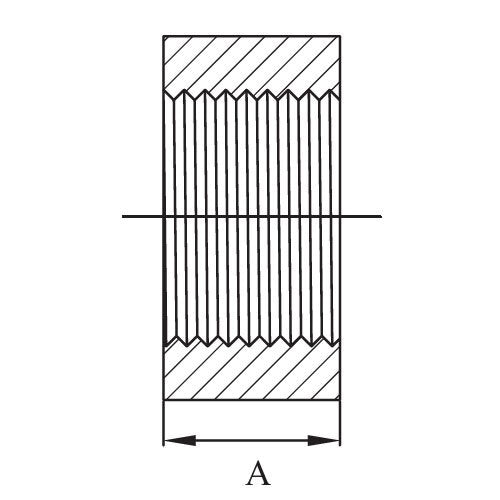

AAP SSCH15: AAP 316 Stainless Steel Half Coupling, 1/2". Pipe Size (inch): 1/2. Pipe Size (mm): 15. Length (A): 15.
