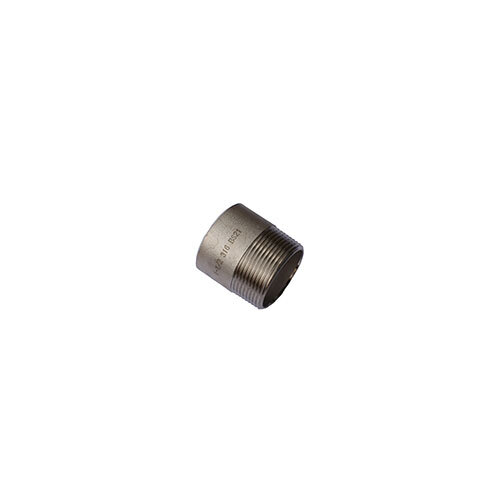

AAP 316 Stainless Steel Weld Nipple, 1/4"
Available

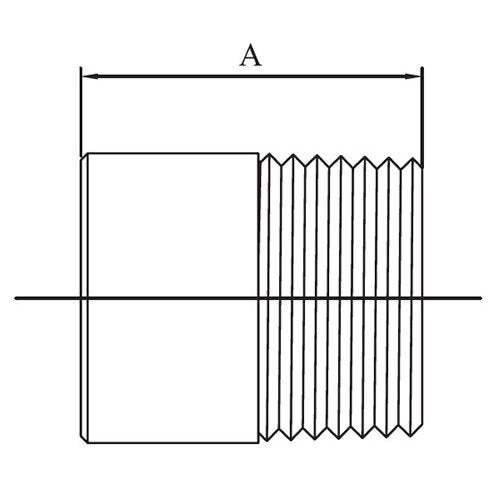

This AAP weld nipple is grade 316 stainless steel with BSP threads. It is supplied in 11 sizes, 1/4" (8mm) to 4" (100mm). A weld nipple has a thread at one end and is normally welded to a pipe or vessel at the other end to make a threaded connection. A is its overall length.
The 150 lb stainless steel fittings are made from grade 316 stainless steel. 150 lb refers to a maximum working pressure and temperature of 150 psi saturated steam, about 1,034 kPa.
Where this product is used
- Marine, pumping, commercial, chemical and irrigation pipework in stainless steel
- Making a threaded connection on a pipe or vessel by welding
- Adding a threaded outlet to stainless steel tanks and pipework
Features
- 11 sizes, 1/4" (8mm) to 4" (100mm)
- Grade 316 stainless steel, 150 lb class
- Applicable standards include AS 1722.2 and ISO 4144
- Type: Weld nipple, thread one end
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Weld nipple, grade 316 stainless steel |
| Type | Weld nipple, thread one end |
| Material | Grade 316 stainless steel (316/316L composition) |
| Class | 150 lb (150 psi saturated steam) |
| Applicable standards | AS 1722.2, ISO 4144, ASTM A351, ASTM A182 |
| Mechanical properties | Tensile strength min 70,000 psi (483 MPa), yield strength min 25,000 psi (172 MPa), elongation min 35 per cent |
| Sizes | 1/4" (8mm) to 4" (100mm) (11 sizes) |
Choosing the right option
Choose the size to match the thread it screws onto or into, and check the thread gender against the fitting it joins.
Related AAP products: AAP 316 Stainless Steel Half Coupling, BSP Threaded, AAP 316 Stainless Steel Hex Nipple, BSP Threaded, AAP 316 Stainless Steel Barrel Nipple, BSP Threaded, AAP 316 Stainless Steel Welded Pipe Piece, Sched 40, BSP Taper.
| Option | Part number | SKU |
|---|---|---|
| 1/4" | SSWN08 | A0076565 |
| 1/2" | SSWN15 | A0076567 |
| 1" | SSWN25 | A0076569 |
| 1-1/4" | SSWN32 | A0076570 |
| 1-1/2" | SSWN40 | A0076571 |
| 2" | SSWN50 | A0076572 |
| 2-1/2" | SSWN65 | A0076573 |
| 3/8" | SSWN10 | A0076566 |
| 3/4" | SSWN20 | A0076568 |
| 3" | SSWN80 | A0076574 |
| 4" | SSWN100 | A0076575 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP 316 Stainless Steel Weld Nipple, BSP Threaded: 1/4"
SKU: A0076565 | Model: SSWN08
AAP SSWN08: AAP 316 Stainless Steel Weld Nipple, 1/4". Pipe Size (inch): 1/4. Pipe Size (mm): 8. Length (A): 30.
