AAP 316 Stainless Steel Welded Pipe Piece, 1/2", 100mm long
Available

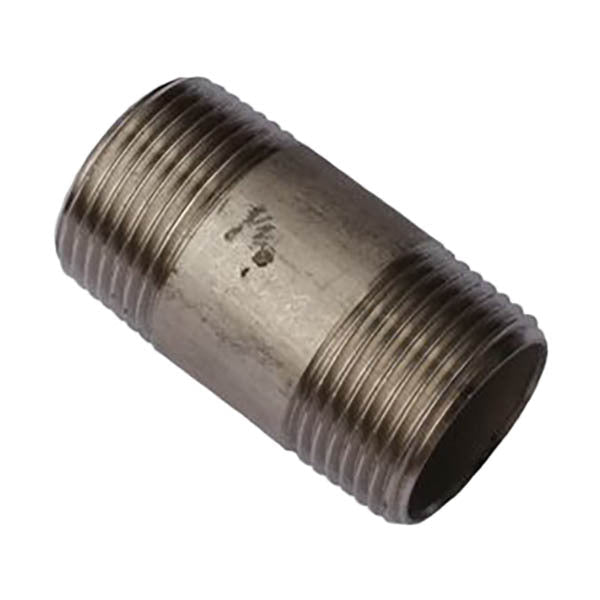

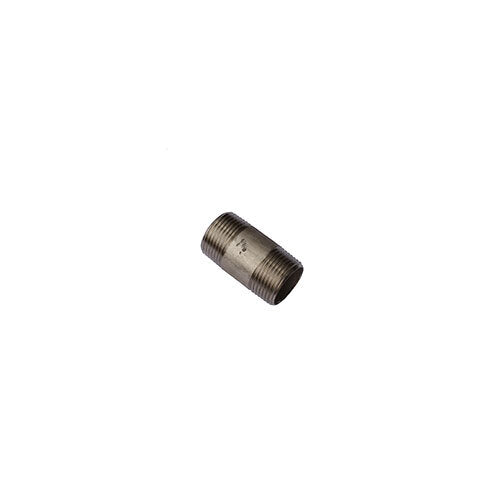

This AAP stainless steel 316 welded pipe piece is Schedule 40 pipe with BSP taper threads at both ends. It is supplied in 29 size and length combinations, from 1/2" (15mm), 100mm long to 2" (50mm), 600mm long. A pipe piece is a length of pipe threaded at both ends, used where a nipple would be too short. The pipe is welded (made from welded pipe) and the threads as BSP taper at both ends.
The 150 lb stainless steel fittings are made from grade 316 stainless steel. 150 lb refers to a maximum working pressure and temperature of 150 psi saturated steam, about 1,034 kPa.
Where this product is used
- Marine, pumping, commercial, chemical and irrigation pipework in stainless steel
- Cut length threaded pipe pieces between fittings
- Spacing valves and fittings apart in threaded pipework
Features
- 29 size and length combinations
- Schedule 40 welded pipe, grade 316 stainless steel
- BSP taper threads at both ends
- Lengths 100, 150, 200, 300 and 600mm
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Welded pipe piece, grade 316 stainless steel |
| Schedule | 40 |
| Threads | BSP taper, both ends |
| Lengths | 100, 150, 200, 300 and 600mm |
| Pipe sizes | 1/2 to 2" |
| Material | Grade 316 stainless steel (316/316L composition) |
| Class | 150 lb (150 psi saturated steam) |
| Applicable standards | AS 1722.2, ISO 4144, ASTM A351, ASTM A182 |
| Mechanical properties | Tensile strength min 70,000 psi (483 MPa), yield strength min 25,000 psi (172 MPa), elongation min 35 per cent |
| Sizes | 29 size and length combinations |
Choosing the right option

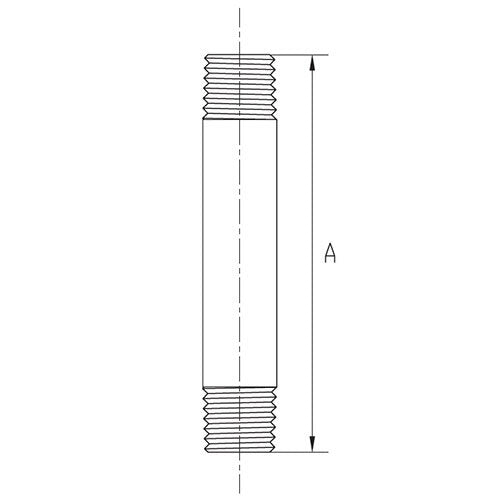

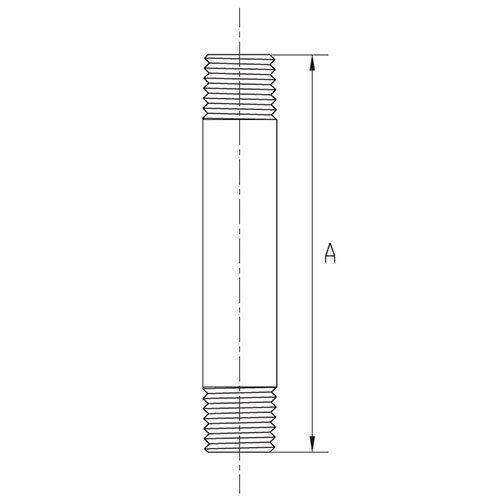

Choose the pipe size to match your threads and the length to suit the gap. Weights are for the whole piece.
Related AAP products: AAP 316 Stainless Steel Barrel Nipple, BSP Threaded, AAP 316 Stainless Steel Hex Nipple, BSP Threaded, AAP 316 Stainless Steel Weld Nipple, BSP Threaded, AAP 316 Stainless Steel Coupling, BSP Threaded.
| Option | Part number | SKU |
|---|---|---|
| 1/2" / 100 | SSPN1594 | A0076466 |
| 1/2" / 150 | SSPN1596 | A0076467 |
| 1/2" / 200 | SSPN1598 | A0076468 |
| 1/2" / 300 | SSPN15X30 | A0076469 |
| 1/2" / 600 | SSPN15X60 | A0076470 |
| 1" / 100 | SSPN2594 | A0076476 |
| 1" / 150 | SSPN2596 | A0076477 |
| 1" / 200 | SSPN2598 | A0076478 |
| 1" / 300 | SSPN25X30 | A0076479 |
| 1" / 600 | SSPN25X60 | A0076480 |
| 1-1/4" / 100 | SSPN3294 | A0076481 |
| 1-1/4" / 150 | SSPN3296 | A0076482 |
| 1-1/4" / 200 | SSPN3298 | A0076483 |
| 1-1/4" / 300 | SSPN32X30 | A0076484 |
| 1-1/4" / 600 | SSPN32X60 | A0076485 |
| 1-1/2" / 100 | SSPN4094 | A0076486 |
| 1-1/2" / 150 | SSPN4096 | A0076487 |
| 1-1/2" / 200 | SSPN4098 | A0076488 |
| 1-1/2" / 300 | SSPN40X30 | A0076489 |
| 1-1/2" / 600 | SSPN40X60 | A0076491 |
| 2" / 100 | SSPN5094 | A0076492 |
| 2" / 150 | SSPN5096 | A0076493 |
| 2" / 300 | SSPN50X30 | A0076495 |
| 2" / 600 | SSPN50X60 | A0076497 |
| 3/4" / 100 | SSPN2094 | A0076471 |
| 3/4" / 150 | SSPN2096 | A0076472 |
| 3/4" / 200 | SSPN2098 | A0076473 |
| 3/4" / 300 | SSPN20X30 | A0076474 |
| 3/4" / 600 | SSPN20X60 | A0076475 |
