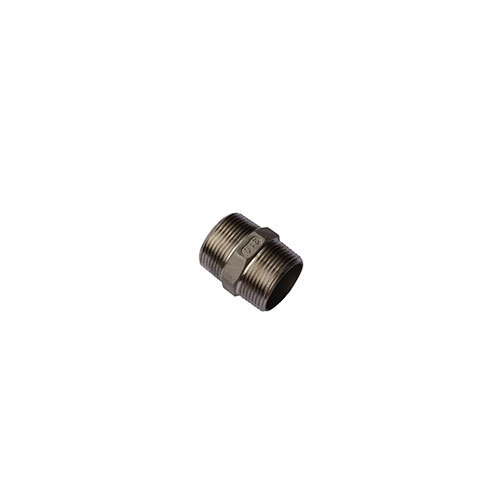

AAP 316 Stainless Steel Hex Nipple, 1/8"
Available

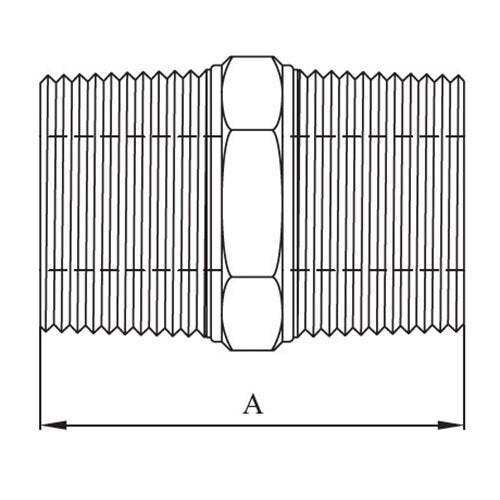

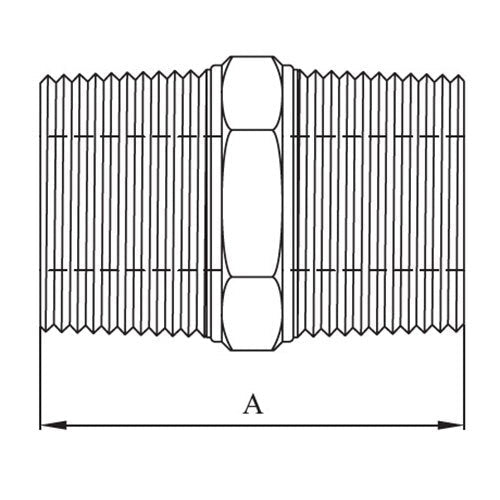

This AAP hexagon nipple is grade 316 stainless steel with BSP threads. It is supplied in 12 sizes, 1/8" (6mm) to 4" (100mm). A hexagon nipple has a thread at each end and a hexagon in the middle for a spanner. It joins two female threaded fittings of the same size. A is its overall length.
The 150 lb stainless steel fittings are made from grade 316 stainless steel. 150 lb refers to a maximum working pressure and temperature of 150 psi saturated steam, about 1,034 kPa.
Where this product is used
- Marine, pumping, commercial, chemical and irrigation pipework in stainless steel
- Joining two female threaded fittings that need a spanner flat
- Close coupling valves and fittings in stainless steel pipework
Features
- 12 sizes, 1/8" (6mm) to 4" (100mm)
- Grade 316 stainless steel, 150 lb class
- Applicable standards include AS 1722.2 and ISO 4144
- Type: Hexagon nipple, threaded both ends
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Hexagon nipple, grade 316 stainless steel |
| Type | Hexagon nipple, threaded both ends |
| Material | Grade 316 stainless steel (316/316L composition) |
| Class | 150 lb (150 psi saturated steam) |
| Applicable standards | AS 1722.2, ISO 4144, ASTM A351, ASTM A182 |
| Mechanical properties | Tensile strength min 70,000 psi (483 MPa), yield strength min 25,000 psi (172 MPa), elongation min 35 per cent |
| Sizes | 1/8" (6mm) to 4" (100mm) (12 sizes) |
Choosing the right option
Choose the size to match your pipe threads, and check the thread gender at each end against the fitting it joins.
Related AAP products: AAP 316 Stainless Steel Reducing Hex Nipple, BSP Threaded, AAP 316 Stainless Steel Barrel Nipple, BSP Threaded, AAP 316 Stainless Steel Coupling, BSP Threaded, AAP 316 Stainless Steel Weld Nipple, BSP Threaded.
| Option | Part number | SKU |
|---|---|---|
| 1/8" | SSN06 | A0076416 |
| 1/4" | SSN08 | A0076417 |
| 1/2" | SSN15 | A0076419 |
| 1" | SSN25 | A0076421 |
| 1-1/4" | SSN32 | A0076422 |
| 1-1/2" | SSN40 | A0076423 |
| 2" | SSN50 | A0076424 |
| 2-1/2" | SSN65 | A0076425 |
| 3/8" | SSN10 | A0076418 |
| 3/4" | SSN20 | A0076420 |
| 3" | SSN80 | A0076426 |
| 4" | SSN100 | A0076427 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP 316 Stainless Steel Hex Nipple, BSP Threaded: 1/8"
SKU: A0076416 | Model: SSN06
AAP SSN06: AAP 316 Stainless Steel Hex Nipple, 1/8". Pipe Size (inch): 1/8. Pipe Size (mm): 6. Length (A): 28.
