AAP Polypropylene Camlock Type E, 1"

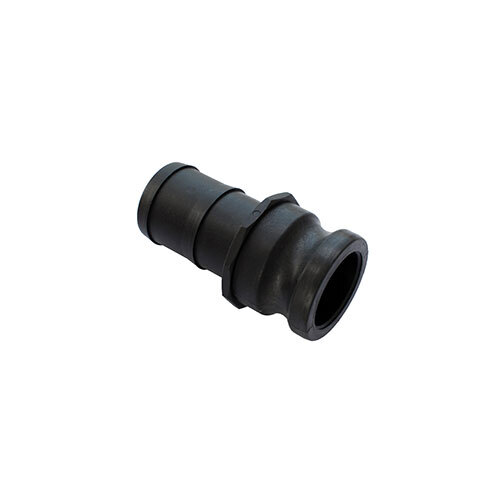

This AAP polypropylene camlock adaptor is a Type E: a male camlock end and a male hosebarb. It is supplied in 6 sizes from 3/4" (20mm) to 3" (80mm). Camlocks, also known as cam and groove fittings, give a quick connection and disconnection of hose and piping. The male camlock end locks onto a female camlock end of the same size, and the hosebarb takes a hose, which should be secured with a suitable clamp.

It is black polypropylene (30% glass filled), which is used extensively in the chemical and agricultural sectors, including spraying equipment. The camlocks are made to interchange with products made to Mil Spec A-A 59326.

Where this product is used

• Agricultural spraying equipment
• Chemical industry transfer hose connections
• Irrigation and farm water hose lines
• Hose distributor and general industry connections

Features

• 6 sizes from 3/4" (20mm) to 3" (80mm)
• Type E: Male Camlock x Male Hosebarb
• Black polypropylene, 30% glass filled
• Working pressure 517 kPa (5.17 bar) to 862 kPa (8.62 bar) by size
• Interchanges with Mil Spec A-A 59326 products
• Maximum temperature 100°C with an NBR (Buna) gasket

Key specifications

Choosing the right option

Choose the size to match the hose or pipe thread you are connecting, and pair it with a female camlock of the same size (Types B, C or D). It suits water, oil, powders and some hydrocarbons and chemicals, so check chemical compatibility before use. Spare parts for these camlocks: brass handles (code CBH), handle pins (code CP) and NBR gaskets (code CGN).

Related AAP products: AAP Polypropylene Camlock Coupler, Type B, Female Camlock x Male BSP, AAP Polypropylene Camlock Coupler, Type D, Female Camlock x Female BSP, AAP Polypropylene Camlock Coupler, Type C, Female Camlock x Male Hosebarb, AAP Polypropylene Camlock Dust Cap, Type DC.
