1 in (25 mm) Polypropylene Camlock Dust Cap | CPP25DC
Available

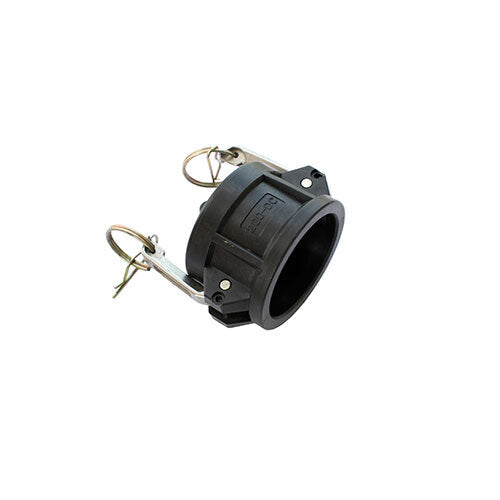

This AAP polypropylene camlock dust cap is a Type DC: a dust cap that closes off a male camlock end. It is supplied in 6 sizes from 3/4 in (20 mm) to 3 in (80 mm).
This is the dust cap: it has cam arms and fits over a male camlock end (Types A, E and F) to keep dirt and debris out when the line is not connected.
It is black polypropylene (30% glass filled), which AAP says is used extensively in the chemical and agricultural sectors, including spraying equipment (manufacturer-stated).
AAP makes its camlocks to interchange with products made to Mil Spec A-A 59326 (manufacturer-stated). Dimension letters in the table follow the AAP catalogue drawings.
Where this product is used
- Capping off the male camlock end of an adaptor when it is not connected
- Protecting hose and tanker ends in storage and transport
- Agricultural spraying equipment
- Chemical industry transfer hose connections
Features
- 6 sizes from 3/4 in (20 mm) to 3 in (80 mm)
- Type DC: closes off a male camlock end
- Black polypropylene, 30% glass filled
- Cam arms lock the cap onto the male end
- Interchanges with Mil Spec A-A 59326 products (manufacturer-stated)
- Spare handles, handle pins and NBR gaskets available for AAP camlocks
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Camlock dust cap, Type DC |
| Material | Polypropylene (30% glass filled), black |
| Connection | Fits over a male camlock end (Types A, E and F) |
| Interchange (manufacturer-stated) | Mil Spec A-A 59326 |
| Sizes | 3/4 in (20 mm) to 3 in (80 mm) (6 sizes) |
Options and part numbers
| Size | Part number | B (mm) | E (mm) | G (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 3/4 in (20 mm) | CPP20DC | 45 | 32 | 53 | 0.08 |
| 1 in (25 mm) | CPP25DC | 57 | 40 | 60 | 0.11 |
| 1-1/4 in (32 mm) | CPP32DC | 65 | 48 | 78 | 0.16 |
| 1-1/2 in (40 mm) | CPP40DC | 65 | 49 | 85 | 0.18 |
| 2 in (50 mm) | CPP50DC | 70 | 54 | 96 | 0.22 |
| 3 in (80 mm) | CPP80DC | 80 | 60 | 127 | 0.36 |
Selecting the right option
Choose the size to match the hose or pipe thread you are connecting, and pair it with a male camlock end of the same size (Types A, E or F). AAP gives the media as water, oil, powders and some hydrocarbons and chemicals, so check chemical compatibility before use. AAP also lists spare parts for its camlocks: brass handles (code CBH), handle pins (code CP) and NBR gaskets (code CGN), so contact AIMS if you need them.
Related products
See also AAP Polypropylene Camlock Adaptor, Type A, Male Camlock x Female BSP, AAP Polypropylene Camlock Adaptor, Type E, Male Camlock x Male Hosebarb, AAP Polypropylene Camlock Adaptor, Type F, Male Camlock x Male BSP and AAP Nyglass Camlock Dust Cap, Type DC.
