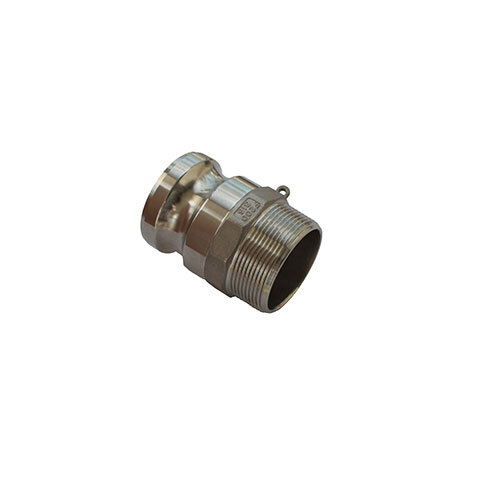

1/2 in (15 mm) Stainless Steel Camlock Adaptor Type F | CSS15F
Available
This AAP stainless steel camlock adaptor is a Type F: a male camlock end and a male BSP thread. It is supplied in 10 sizes from 1/2 in (15 mm) to 6 in (150 mm).
Camlocks, also known as cam and groove fittings, give a quick connection and disconnection of hose and piping. The male camlock end locks onto a female camlock end of the same size, and the male BSP thread screws into a female threaded port.
It is sand-cast 316 stainless steel, which AAP describes as fully weldable, for the food industry, offshore and chemical work (manufacturer-stated).

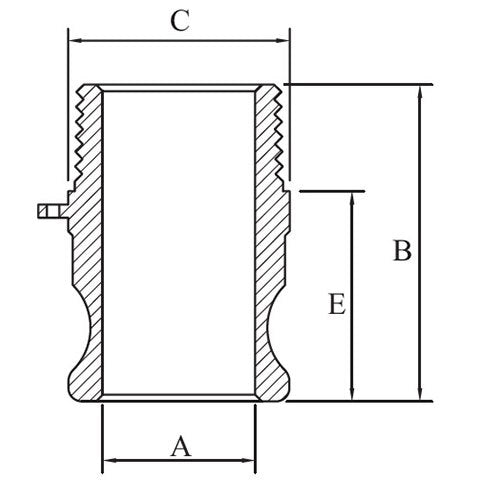

AAP makes its camlocks to interchange with products made to Mil Spec A-A 59326 (manufacturer-stated). The 1/2 in (15 mm) size is outside that specification and is made to AAP's own specification only. AAP states that the threads are cut to ISO 228. Dimension letters in the table follow the AAP catalogue drawings.
Where this product is used
- Food industry hose transfer
- Offshore and marine hose connections
- Chemical industry transfer lines
- Pumping, bulk tanker and water carrier connections
Features
- 10 sizes from 1/2 in (15 mm) to 6 in (150 mm)
- Type F: Male Camlock x Male BSP
- Sand-cast 316 stainless steel, fully weldable
- Working pressure 517 kPa (5.17 bar) to 1,724 kPa (17.24 bar) by size (manufacturer-stated)
- Interchanges with Mil Spec A-A 59326 products (manufacturer-stated)
- Maximum temperature 100 degrees C with an NBR (Buna) gasket (manufacturer-stated)
Working pressure by size
| Nominal size | Working pressure (kPa) | Working pressure (bar) |
|---|---|---|
| 1/2 in (15 mm) | 1,034 | 10.34 |
| 3/4 in (20 mm) | 1,724 | 17.24 |
| 1 in (25 mm) | 1,724 | 17.24 |
| 1-1/4 in (32 mm) | 1,724 | 17.24 |
| 1-1/2 in (40 mm) | 1,724 | 17.24 |
| 2 in (50 mm) | 1,724 | 17.24 |
| 2-1/2 in (65 mm) | 1,034 | 10.34 |
| 3 in (80 mm) | 862 | 8.62 |
| 4 in (100 mm) | 690 | 6.9 |
| 6 in (150 mm) | 517 | 5.17 |
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Camlock adaptor, Type F |
| Material | 316 stainless steel, sand cast |
| Connection | Male Camlock x Male BSP |
| Thread (manufacturer-stated) | BSP, cut to ISO 228 |
| Working pressure (manufacturer-stated) | 517 kPa (5.17 bar) to 1,724 kPa (17.24 bar) |
| Maximum temperature (manufacturer-stated) | 100 degrees C with NBR (Buna) gasket |
| Interchange (manufacturer-stated) | Mil Spec A-A 59326 |
| Sizes | 1/2 in (15 mm) to 6 in (150 mm) (10 sizes) |
Options and part numbers
| Size | Part number | A (mm) | B (mm) | C (mm) | E (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1/2 in (15 mm) | CSS15F | 21 | 60 | 32 | 39 | 0.06 |
| 3/4 in (20 mm) | CSS20F | 21 | 61 | 32 | 39 | 0.13 |
| 1 in (25 mm) | CSS25F | 24 | 71 | 40 | 48 | 0.19 |
| 1-1/4 in (32 mm) | CSS32F | 28.5 | 81 | 48 | 56 | 0.32 |
| 1-1/2 in (40 mm) | CSS40F | 36 | 79 | 56 | 61 | 0.43 |
| 2 in (50 mm) | CSS50F | 45 | 87 | 67 | 62 | 0.57 |
| 2-1/2 in (65 mm) | CSS65F | 56.5 | 97 | 83 | 69 | 0.69 |
| 3 in (80 mm) | CSS80F | 73 | 100 | 96 | 74 | 1.19 |
| 4 in (100 mm) | CSS100F | 98 | 114 | 127 | 79 | 1.84 |
| 6 in (150 mm) | CSS150F | 150 | 118 | 175 | 77 | 2.98 |
Selecting the right option
Choose the size to match the hose or pipe thread you are connecting, and pair it with a female camlock of the same size (Types B, C or D). Check the mating thread is BSP, because AAP cuts these threads to ISO 228. AAP gives the media as water, oil, powders and some hydrocarbons and chemicals, so check chemical compatibility before use. AAP also lists spare parts for its camlocks: brass handles (code CBH), handle pins (code CP) and NBR gaskets (code CGN), so contact AIMS if you need them.
