1/2 in (15 mm) Stainless Steel Camlock Dust Cap | CSS15DC
Available

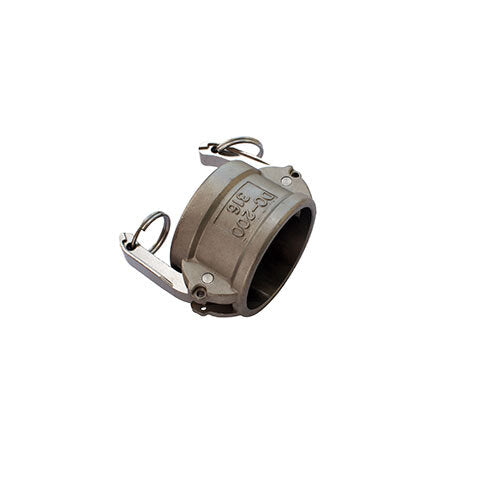

This AAP stainless steel camlock dust cap is a Type DC: a dust cap that closes off a male camlock end. It is supplied in 10 sizes from 1/2 in (15 mm) to 6 in (150 mm).
This is the dust cap: it has cam arms and fits over a male camlock end (Types A, E and F) to keep dirt and debris out when the line is not connected.
It is sand-cast 316 stainless steel, which AAP describes as fully weldable, for the food industry, offshore and chemical work (manufacturer-stated).

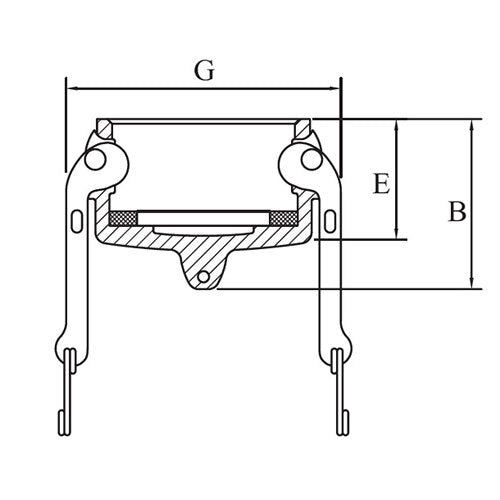

AAP makes its camlocks to interchange with products made to Mil Spec A-A 59326 (manufacturer-stated). The 1/2 in (15 mm) size is outside that specification and is made to AAP's own specification only. Dimension letters in the table follow the AAP catalogue drawings.
Where this product is used
- Capping off the male camlock end of an adaptor when it is not connected
- Protecting hose and tanker ends in storage and transport
- Food industry hose transfer
- Offshore and marine hose connections
Features
- 10 sizes from 1/2 in (15 mm) to 6 in (150 mm)
- Type DC: closes off a male camlock end
- Sand-cast 316 stainless steel, fully weldable
- Cam arms lock the cap onto the male end
- Interchanges with Mil Spec A-A 59326 products (manufacturer-stated)
- Spare handles, handle pins and NBR gaskets available for AAP camlocks
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Camlock dust cap, Type DC |
| Material | 316 stainless steel, sand cast |
| Connection | Fits over a male camlock end (Types A, E and F) |
| Interchange (manufacturer-stated) | Mil Spec A-A 59326 |
| Sizes | 1/2 in (15 mm) to 6 in (150 mm) (10 sizes) |
Options and part numbers
| Size | Part number | B (mm) | E (mm) | G (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 1/2 in (15 mm) | CSS15DC | 37 | 32 | 53 | 0.13 |
| 3/4 in (20 mm) | CSS20DC | 45 | 32 | 53 | 0.18 |
| 1 in (25 mm) | CSS25DC | 57 | 40 | 60 | 0.23 |
| 1-1/4 in (32 mm) | CSS32DC | 65 | 48 | 78 | - |
| 1-1/2 in (40 mm) | CSS40DC | 65 | 49 | 85 | 0.41 |
| 2 in (50 mm) | CSS50DC | 70 | 54 | 96 | 0.53 |
| 2-1/2 in (65 mm) | CSS65DC | 74 | 59 | 110 | 0.69 |
| 3 in (80 mm) | CSS80DC | 80 | 60 | 127 | 1 |
| 4 in (100 mm) | CSS100DC | 80 | 62 | 156 | 1.42 |
| 6 in (150 mm) | CSS150DC | 90 | 62 | 240 | 2.7 |
Selecting the right option
Choose the size to match the hose or pipe thread you are connecting, and pair it with a male camlock end of the same size (Types A, E or F). AAP gives the media as water, oil, powders and some hydrocarbons and chemicals, so check chemical compatibility before use. AAP also lists spare parts for its camlocks: brass handles (code CBH), handle pins (code CP) and NBR gaskets (code CGN), so contact AIMS if you need them.
Related products
See also AAP Stainless Steel Camlock Adaptor, Type A, Male Camlock x Female BSP, AAP Stainless Steel Camlock Adaptor, Type E, Male Camlock x Male Hosebarb, AAP Stainless Steel Camlock Adaptor, Type F, Male Camlock x Male BSP and AAP Aluminium Camlock Dust Cap, Type DC.
