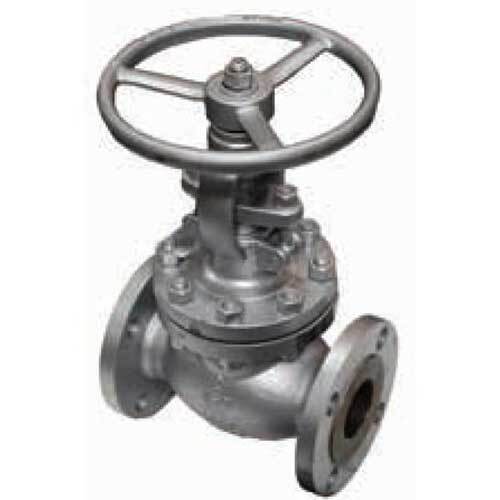

AAP Cast Steel Flanged Globe Valve, 2"

This AAP cast steel flanged globe valve has an ASTM A216 WCB body, a Stellite faced seat ring and ANSI Class 150 flanges. It is supplied in 5 sizes from 2" (50mm) to 6" (150mm). A globe valve regulates flow with a movable disc that closes down onto a stationary ring seat inside a roughly spherical body. Flow turns through the body, so a globe valve has a higher pressure drop than a gate valve of the same size.

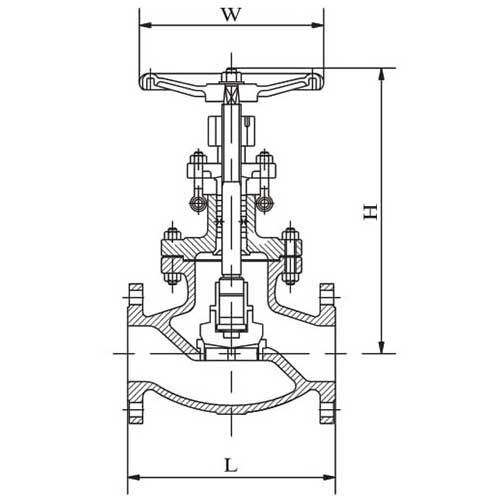

The maximum working temperature is 300°C and the cold working pressure is 1,960 kPa (19.6 bar), with design to ANSI B16.34, flange dimensions to ANSI B16.5 and face-to-face dimensions to ANSI B16.10. The pressure figure is the cold working pressure, so the allowable pressure falls as the temperature rises. The body is ASTM A216 WCB, the seat ring is A105 with an ER CoCr-A (Stellite) hard facing, the bonnet gasket is 13Cr and graphite, the packing is graphite and the handwheel is ASTM A356.

Where this product is used

• Steam service
• Oil and petrochemical process pipework
• Hot flanged lines needing throttling or frequent operation
• Plant and utility flow regulation

Features

• 5 sizes from 2" (50mm) to 6" (150mm)
• ASTM A216 WCB body with a Stellite faced seat ring
• Graphite packing, 13Cr and graphite bonnet gasket
• ANSI Class 150 flanges to ANSI B16.5
• Cold working pressure 1,960 kPa (19.6 bar), maximum 300°C
• Design to ANSI B16.34, face to face to ANSI B16.10

Key specifications

Choosing the right option

Choose the size to match your ANSI Class 150 flanges, and check the hole count and hole diameter against your mating flange.
