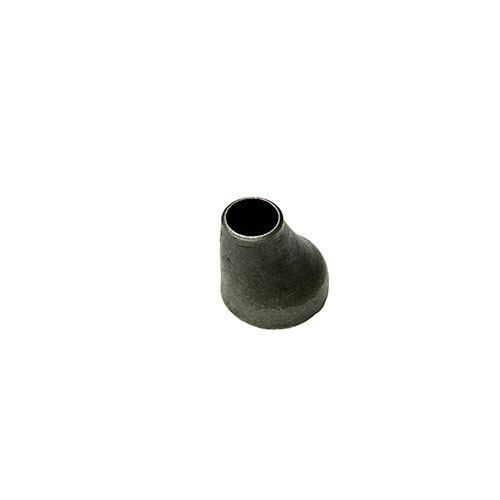

AAP Buttweld Eccentric Reducer, 3" x 2-1/2"

This AAP buttweld eccentric reducer is made to JIS B 2311 (SGP). It is supplied in 3 sizes, 3 x 2-1/2" (80 x 65mm) to 6 x 4" (150 x 100mm). An eccentric reducer steps a pipe run from one size down to a smaller size, with the two ends offset so that one side of the pipe stays flat through the change. It is made to JIS B 2311 (SGP). Sizes are given as the larger size first, then the smaller.

The buttweld range is carbon alloy steel to ASTM A234 for use in various piping systems. Advantages of buttweld: a welded fitting is permanently leak proof, the continuous metal between pipe and fitting adds strength, the smoother inner surface and gradual direction changes reduce pressure loss, turbulence, corrosion and abrasion, and a welded system uses a minimum of space.

Where this product is used

• Pipework where a welded, permanently leak proof joint is wanted
• Reducing a welded pipe run from a larger size to a smaller one
• Pipework made to JIS B 2311 dimensions

Features

• 3 sizes, 3 x 2-1/2" (80 x 65mm) to 6 x 4" (150 x 100mm)
• Butt weld ends, JIS B 2311
• Wall thickness given for every size
• Weight class: SGP

Key specifications

Choosing the right option

Match the wall thickness to the pipe you are welding to.
