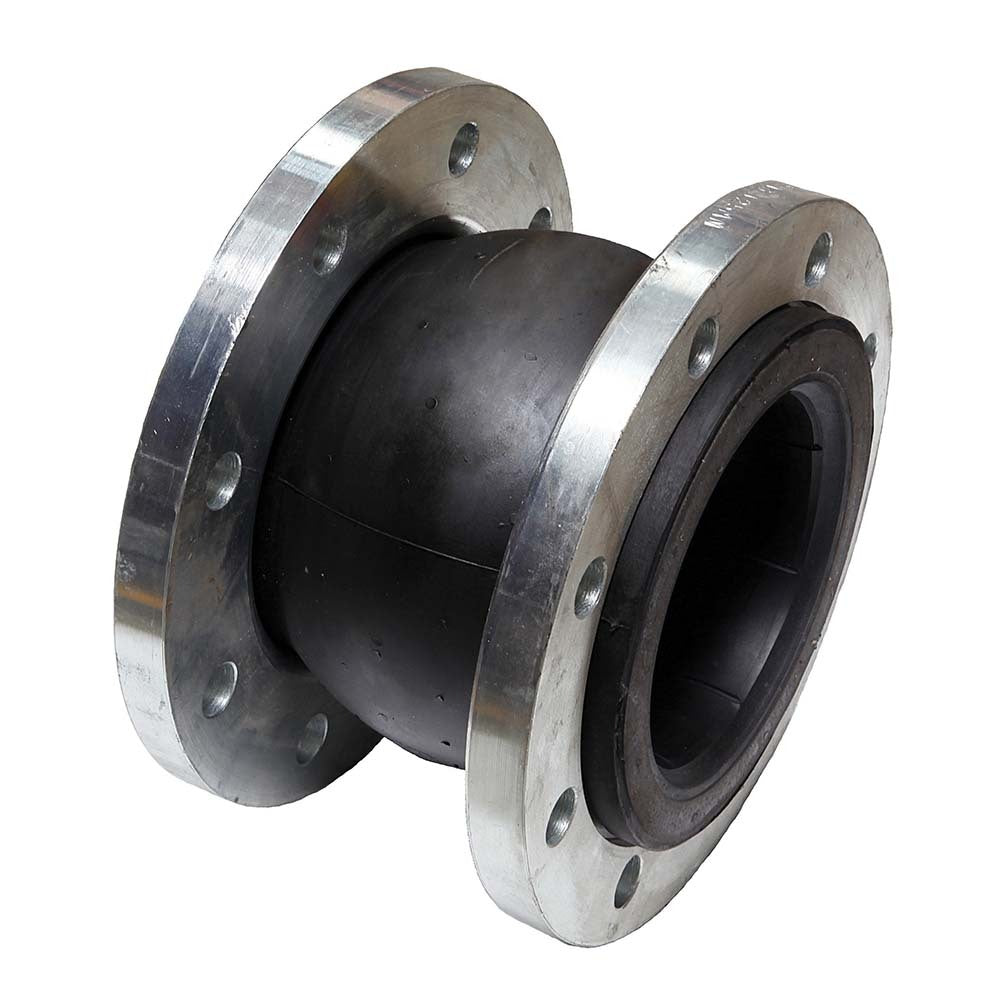

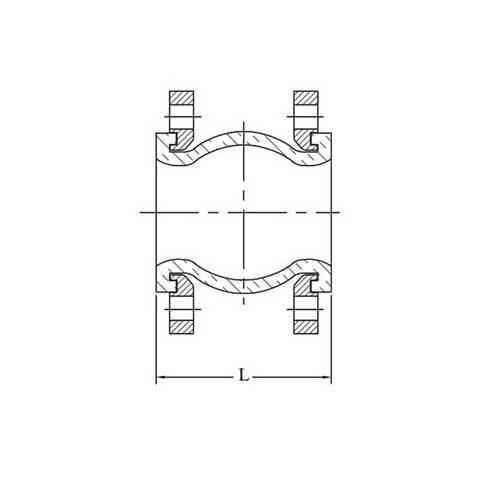

AAP EPDM rubber bellow, 1-1/4"

This AAP EPDM rubber bellow is made with AAP's combined BS4504 PN16 and Table E flange drilling. It is supplied in 9 sizes from 1-1/4" (32mm) to 8" (200mm).

A rubber bellow is a flexible joint moulded in a spherical shape from heat-resisting synthetic elastomer, with metal floating flanges. Installed in a piping system, it absorbs movement in three directions: axial (elongation and compression along the centre line), lateral (offset from the centre line) and angular (bending about the centre line). The body is EPDM, rated -30 to +120 °C, with a nylon cord fabric lining and a hard steel wire frame. Applications: air, compressed air, water, sea water, hot water and weak acid.

Where this product is used

• Absorbing axial, lateral and angular pipe movement
• Flexible connections at pumps and other equipment
• Compressed air, water, sea water and hot water lines
• Weak acid duties, subject to chemical resistance

Features

• 9 sizes from 1-1/4" (32mm) to 8" (200mm)
• EPDM body, -30 to +120 °C
• Flange drilling: BS4504 x AS2129 Table E combination
• Absorbs axial, lateral and angular movement, with 15° angular deflection on all sizes
• Bursting pressure 6,000 kPa and vacuum rating 86.7 kPa
• Moulded spherical body with nylon cord lining, steel wire frame and metal floating flanges
• EPDM resists animal and vegetable oils, ozone and strong oxidising chemicals

Key specifications

Choosing the right option

Match the flange drilling to the flanges on your pipework: this bellow uses AAP's combined BS4504 PN16 and AS2129 Table E drilling, so check it against both flanges. EPDM is not suited to mineral oils, solvents or aromatic hydrocarbons, so choose an NBR bellow for those duties.
