Description
Description
AAP NBR Rubber Bellow ANSI 150
- Flange Standard: ANSIB16.5
- Temperature: -25°C + 100°C
- Composition:Nitrile Butadiene
- Generally Resistant: Many Hydrocarbons, fats, oils, greases, hydraulic Fluids, and chemical
- Generally affected or attacked: Ozone's, keystones, esters, aldehydes, chlorinated and nitro hydrocarbons
- Applications:Air, Compressed Air, Water, Sea Water, Hot Water, Weak Acid
- Bursting Pressure: 6000kPa
- Vacuity: 86.7 kPa
About Rubber Bellows:

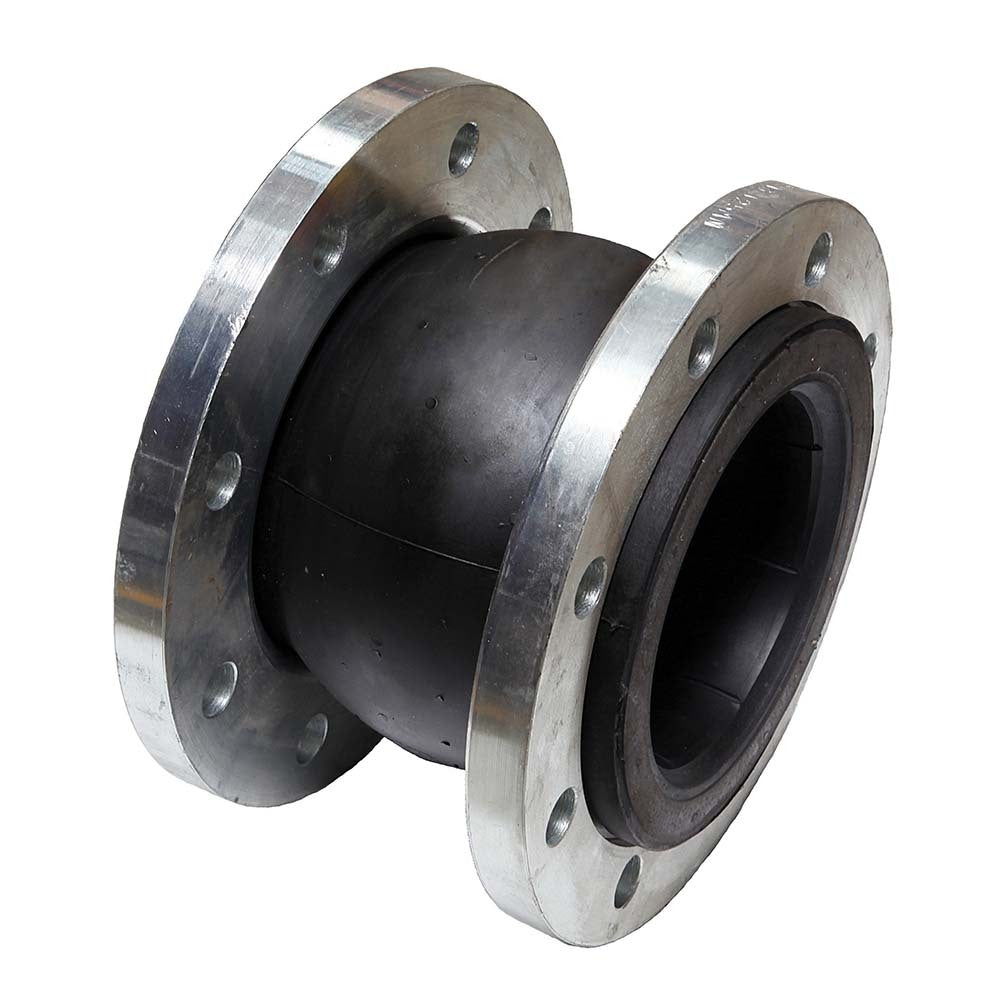

- A Rubber bellow is a flexible jointmade from heat-resisting synthetic elastomers and molded in a spherical shape with metal floating flanges.
- Rubber Bellows (Flexible Rubber Joints) are installed in piping systems to absorb movements in three directions:
- Axial - the movement of elongation and compression along the centre line
- Lateral - offset movement from the centre line
- Angular - offset bending about the centre line
Specifications
Specifications
Applications
Applications
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
AAP NBR Rubber Bellow ANSI 150
AAP NBR Rubber Bellow ANSI 150
SKU: A0081303
Type: Rubber Bellow
- Wide Range
- Reliable Services
- Proven Trust
Available
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Couldn't load pickup availability
Description
Description
AAP NBR Rubber Bellow ANSI 150
- Flange Standard: ANSIB16.5
- Temperature: -25°C + 100°C
- Composition:Nitrile Butadiene
- Generally Resistant: Many Hydrocarbons, fats, oils, greases, hydraulic Fluids, and chemical
- Generally affected or attacked: Ozone's, keystones, esters, aldehydes, chlorinated and nitro hydrocarbons
- Applications:Air, Compressed Air, Water, Sea Water, Hot Water, Weak Acid
- Bursting Pressure: 6000kPa
- Vacuity: 86.7 kPa
About Rubber Bellows:
- A Rubber bellow is a flexible jointmade from heat-resisting synthetic elastomers and molded in a spherical shape with metal floating flanges.
- Rubber Bellows (Flexible Rubber Joints) are installed in piping systems to absorb movements in three directions:
- Axial - the movement of elongation and compression along the centre line
- Lateral - offset movement from the centre line
- Angular - offset bending about the centre line
Specifications
Specifications
Applications
Applications
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
AAP NBR Rubber Bellow ANSI 150
Customer Service
Mon-Fri, 08:00-05:00pm
Call Us
(02) 9773-0122
Talk to a Sales Engineer
sales@aimsindustrial.com.au
Warehouse Address
Milperra NSW 2214, Australia
Your cart
(0)
Your cart is currently empty.
Not sure where to start? Try these collections:
Order note
Estimate Shipping
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
|
|
Regular price
From $60.49
Sale price
From $60.49
Regular price
Unit price
/per
| AAP | Rubber Bellow |
Pipe Size (inch)
2,2-1/2,3,4,5
Pipe Size (mm)
50,65,80,100,125

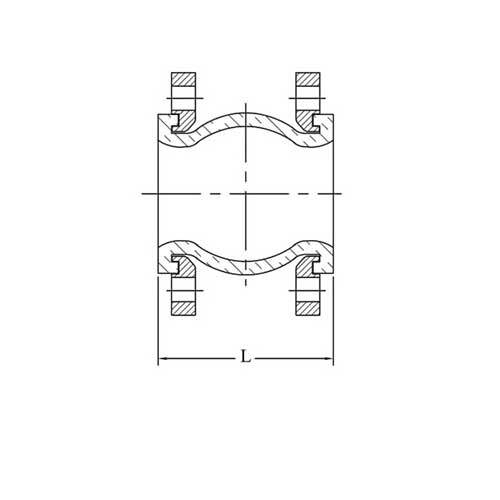

Length
105,115,135,150,165
|
Choose your option
AAP NBR Rubber Bellow ANSI 150
AAP NBR Rubber Bellow ANSI 150
SKU: A0081303
Type: Rubber Bellow
Hurry up, only 16 items left in stock.
