Lead time is 20 Weeks from receipt of the order. Contact AIMS for further assistance.
AAP NBR Rubber Bellow Table E
- Flange Standard:AS2129 E
- Temperature: -25°C + 100°C
- Composition:Nitrile Butadiene
- Generally Resistant:Many Hydrocarbons, fats, oils, greases, hydraulic Fluids, and chemical
- Generally affected or attacked: Ozone's, keystones, esters, aldehydes, chlorinated and nitro hydrocarbons
- Applications:Air, Compressed Air, Water, Sea Water, Hot Water, Weak Acid
- Bursting Pressure: 6000kPa
- Vacuity: 86.7 kPa
About Rubber Bellows

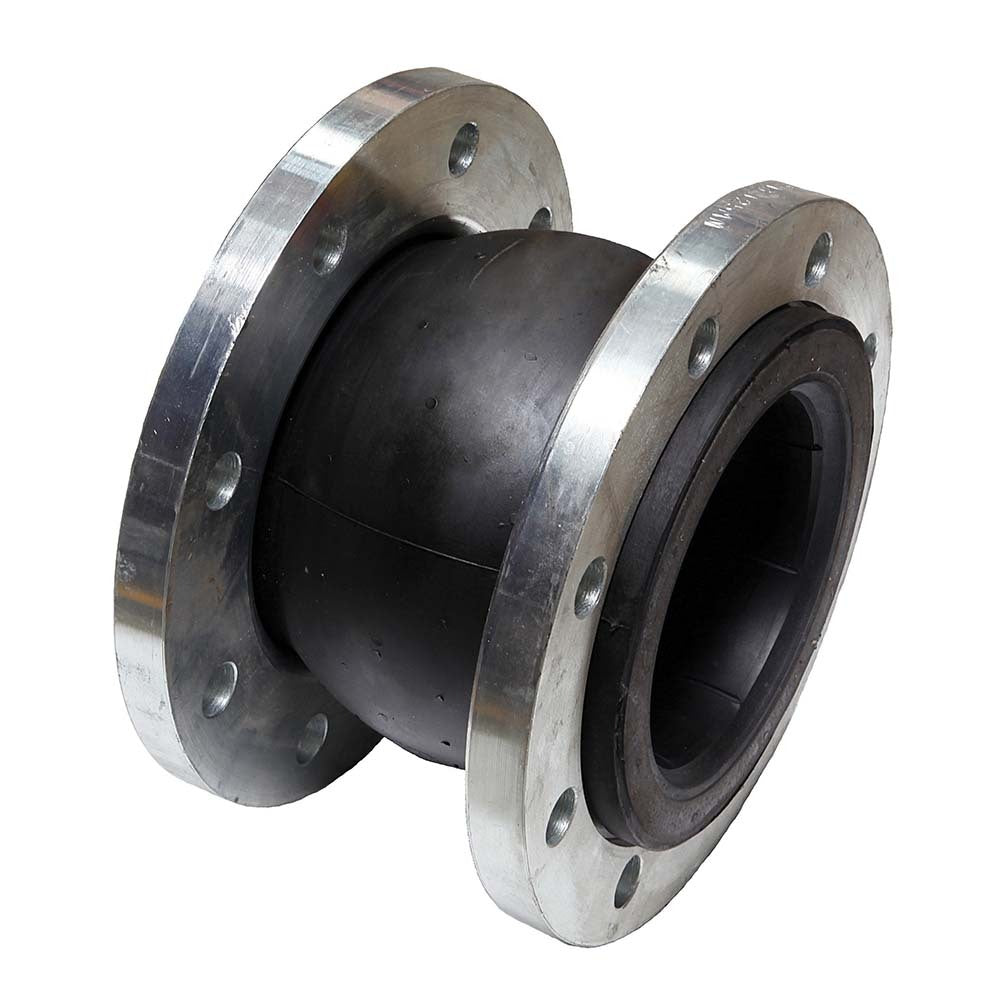

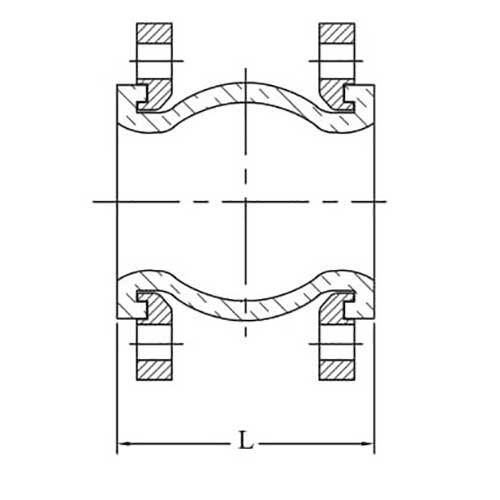

- A Rubber bellow is a flexible jointmade from heat-resisting synthetic elastomers and molded in a spherical shape with metal floating flanges.
- Rubber Bellows (Flexible Rubber Joints) are installed in piping systems to absorb movements in three directions:
- Axial - the movement of elongation and compression along the centre line
- Lateral - offset movement from the centre line
- Angular - offset bending about the centre line
Specifications
Specifications
Applications
Applications
Features & Benefits
Features & Benefits
