AAP 3000lb 316 Stainless Socket Weld Equal Tee, 1/2"

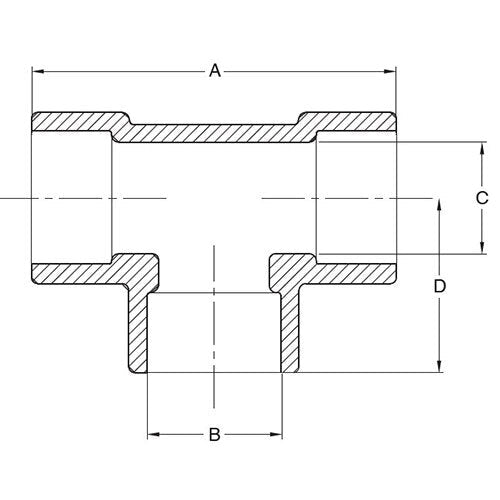

This AAP socket weld equal tee is a 316/316L stainless steel forged fitting. It is supplied in 6 sizes, 1/2" (15mm) to 2" (50mm). An equal tee has three ports of the same size, so a pipe run can branch in one direction. This one has a socket at each port for the pipe to be welded into. A is the overall length of the run, D the centre to end dimension, B the socket bore diameter and C the bore of the fitting.

The stainless steel high pressure fittings are rated at 3000 lb.

Where this product is used

• High pressure stainless steel pipework
• Branching a welded stainless steel pipe run
• Taking an equal size branch off a main

Features

• 6 sizes, 1/2" (15mm) to 2" (50mm)
• 316/316L stainless steel, ASME B16.11-2009
• 3000 lb rating
• Ends: Socket weld

Key specifications

Choosing the right option

Choose the size to match your pipe, and weld the pipe into the socket in line with your site welding procedure.

Related AAP products: AAP 3000lb 316 Stainless Socket Weld 90 Degree Elbow, AAP 3000lb 316 Stainless Socket Weld Coupling, AAP 3000lb 316 Stainless Threaded Equal Tee, NPT, AAP 3000lb 316 Stainless 90 Degree Threaded Elbow, NPT.
