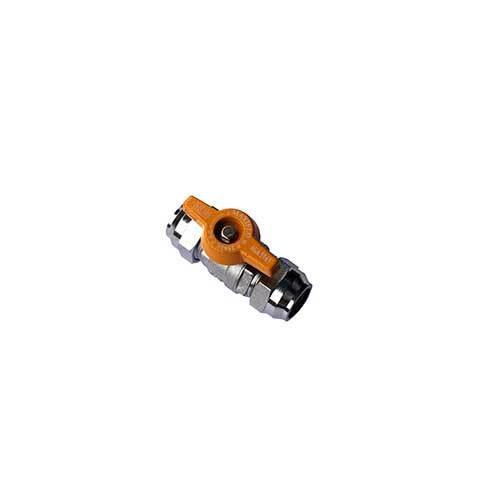

1/2 in (15 mm) Gas Brass Ball Valve, Flared | VF15

This AAP flared gas brass ball valve has flared connections. It is supplied in 3 sizes from 3/8 in (10 mm) to 3/4 in (20 mm).

A ball valve turns a ball with a hole through it between sealing seats. When the lever or handle is in line with the pipe the hole lines up with the flow and the valve is open, and a quarter turn closes it. AAP notes that the handle sits in line with the port, so it shows the valve position.

AAP lists the flared valve in its AGA approved gas ball valve section, but gives no separate pressure, temperature or flare specification for it, so confirm those with AIMS before you order. Gas fitting work must be done by a licensed gasfitter, so check the approval and the gas pressure limits against the rules for your job before you install it.

Where this product is used

• Isolating gas appliances and gas lines in low to medium gas applications
• Shut-off ahead of gas regulators and fittings
• Gas supply to workshop and plant equipment

Features

• 3 sizes from 3/8 in (10 mm) to 3/4 in (20 mm)
• AAP lists it in its AGA approved gas ball valve section (manufacturer-stated)
• Flared connections
• Brass construction
• Lever operator

Key specifications

Options and part numbers

Selecting the right option

Choose the size to match the flared connection on your tube or fitting. AAP does not state the flare form or a pressure rating for this valve, so confirm both with AIMS, and have the work done by a licensed gasfitter. Gas fitting work must be done by a licensed gasfitter, so check the approval and the gas pressure limits against the rules for your job before you install it.

Related products

See also AAP Gas Brass Ball Valve, Stainless Steel Lever, AAP Gas Brass Ball Valve, Lockable Lever and AAP Gas Brass Ball Valve, T-Handle.
