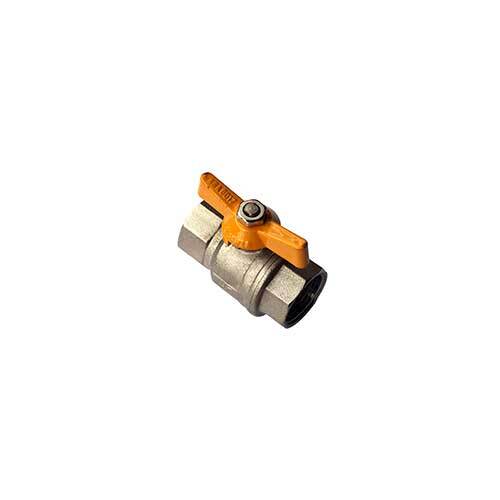

AAP Gas Ball Valve w/ T-Handle

• For flow to medium gas applications. Can also be used for certain chemicals and oils

SPECIFICATIONS
Thread
AS1722.1
Max Working Temperature
60°C
Cold Working Pressure
2500kPa

MATERIALS
PART
MATERIAL
Body
Brass (Nickel Plated)
Seat Retainer
Brass (Nickel Plated)
Seat
P.T.F.E.
Ball
Brass (Chromium plated)
Stem
Brass
Gland
Brass
Packing
Viton (Double O-Ring)
Lever
Stainless Steel (Plastic Coated)
Lever Retaining Nut
Brass (Nickel Plated)

About Ball Valves:

• A ball valve is a valve with a spherical ball with an orifice straight through mounted between teflon seats in either a screwed or flanged body in various materials.
• When the orifice is in line with both ends of the valve fflow will occur.
• When the valve is closed the orifice is perpendicular to the ends of the valve.
• The lever/handle will be in line with the orifice position, an indication of the valve position.
