AAP Gas Brass Ball Valve, 1/2"

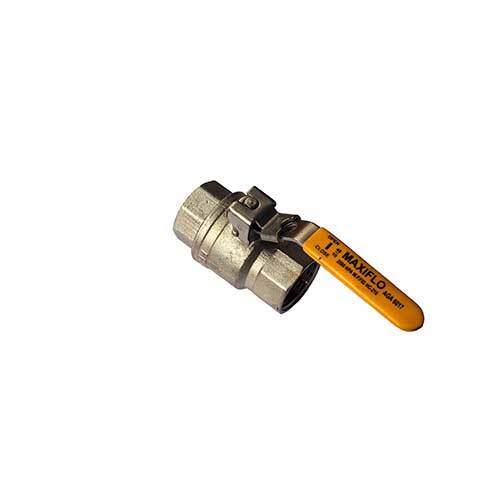

This AAP gas brass ball valve has a lockable, plastic-coated stainless steel lever and female threaded ends. It is supplied in 6 sizes from 1/2" (15mm) to 2" (50mm). A ball valve turns a ball with a hole through it between sealing seats. When the lever or handle is in line with the pipe the hole lines up with the flow and the valve is open, and a quarter turn closes it. The handle sits in line with the port, so it shows the valve position.

The body and seat retainer are nickel-plated brass, the ball is chromium-plated brass, the seat is PTFE and the stem packing is a double Viton O-ring. Gas fitting work must be done by a licensed gasfitter, so check the approval and the gas pressure limits against the rules for your job before you install it.

Where this product is used

• Isolating gas appliances and gas lines in low to medium gas applications
• Shut-off ahead of gas regulators and fittings
• Gas supply to workshop and plant equipment
• Certain chemical and oil lines

Features

• 6 sizes from 1/2" (15mm) to 2" (50mm)
• AGA approved gas ball valve, licence AGA 6017
• Lockable plastic-coated stainless steel lever
• Cold working pressure 2,500 kPa (25 bar), maximum 60°C
• Nickel-plated brass body with a chromium-plated brass ball
• Thread to AS 1722.1
• PTFE seat with double Viton O-ring stem packing

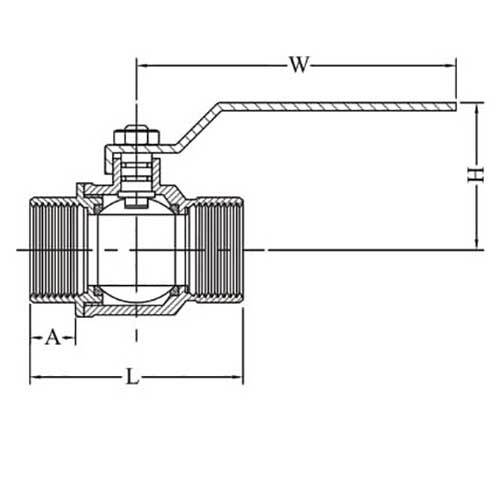

Key specifications

Choosing the right option

Choose the size to match your pipe thread. The lockable lever suits installations where the valve should not be operated by accident. Gas fitting work must be done by a licensed gasfitter, so check the approval and the gas pressure limits against the rules for your job before you install it.
