AAP 3000lb Socket Weld Half Coupling, 2-1/2"

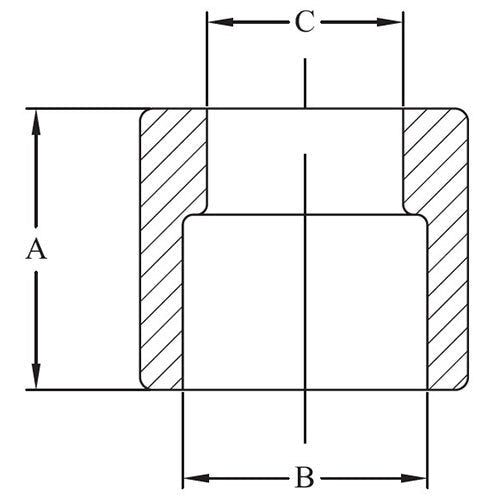

This AAP socket weld half coupling is a forged carbon steel fitting. It is supplied in 7 sizes, 1/4" (8mm) to 2-1/2" (65mm). A half coupling is a short socket weld fitting with a socket at one end. The other end is plain and is normally welded onto a pipe or vessel to make an outlet. A is its length, B the socket bore diameter and C the bore of the fitting.

The socket weld high pressure fittings are rated at 3000 lb. Standards for the range include ASTM A105 carbon steel forgings.

Where this product is used

• High pressure socket weld pipework in carbon steel
• Making a socket weld outlet on a pipe or vessel
• Instrument and drain connections on carbon steel pipework

Features

• 7 sizes, 1/4" (8mm) to 2-1/2" (65mm)
• Forged carbon steel, ASME B16.11-2009
• 3000 lb rating
• Rating: 3000 lb, socket weld ends

Key specifications

Choosing the right option

Choose the size to match your pipe, and weld the pipe into the socket in line with your site welding procedure.
