AAP 3000lb 316 Stainless Cross Over Hex Nipple, 1/2"
Available

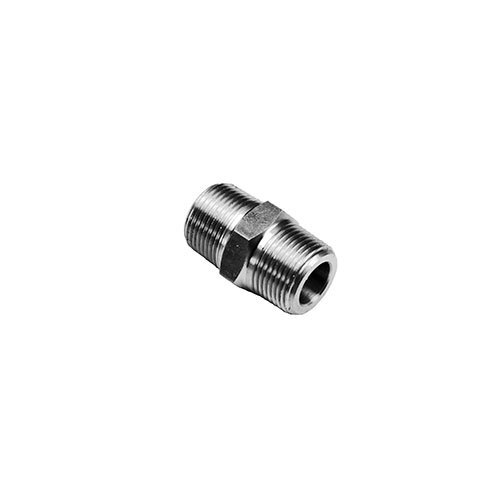

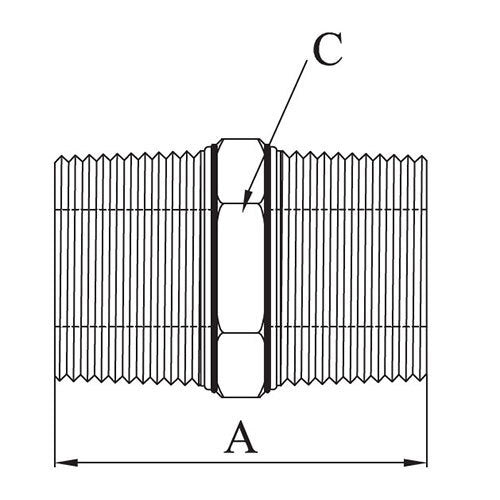

This AAP cross over hexagon nipple is a 316/316L stainless steel forged fitting. It is supplied in 5 sizes, 1/2" (15mm) to 2" (50mm). A is its overall length and C is the width of the hexagon. The stainless steel high pressure fittings are rated at 3000 lb.
Where this product is used
- High pressure stainless steel pipework
- Joining a BSPT threaded port to an NPT threaded port
- Connecting imported NPT equipment to BSPT pipework
Features
- 5 sizes, 1/2" (15mm) to 2" (50mm)
- 316/316L stainless steel, BS 3799-1974
- 3000 lb rating
- BSPT x NPT
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Cross over hexagon nipple, 316/316L stainless steel forged |
| Thread | BSPT thread (AS 1722.1 / ISO 7) at one end and NPT thread (ANSI B1.20.1) at the other |
| Rating | 3000 lb, threaded end |
| Applicable standard | BS 3799-1974 |
| Material | 316/316L stainless steel forging (ASTM A182) |
| Marking | Sizes 3/8" and under: brand only. 1/2" to 4": brand, material, heat number, B16, pressure and size |
| Sizes | 1/2" (15mm) to 2" (50mm) (5 sizes) |
Choosing the right option
Related AAP products: AAP 3000lb 316 Stainless Hexagon Nipple, NPT, AAP 3000lb 316 Stainless Hexagon Head Bush, NPT, AAP 3000lb 316 Stainless Hexagon Plug, NPT, AAP 3000lb 316 Stainless Threaded Coupling, NPT.
| Option | Part number | SKU |
|---|---|---|
| 1/2" | PSTN15BN | A0079923 |
| 1" | PSTN25BN | A0079925 |
| 1-1/2" | PSTN40BN | A0079926 |
| 2" | PSTN50BN | A0079927 |
| 3/4" | PSTN20BN | A0079924 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP 3000lb 316 Stainless Cross Over Hex Nipple, BSPT x NPT: 1/2"
SKU: A0079923 | Model: PSTN15BN
AAP PSTN15BN: AAP 3000lb 316 Stainless Cross Over Hex Nipple, 1/2". Pipe Size (inch): 1/2. Pipe Size (mm): 15. Length (A): 47.
