1/2 x 1/4 in (15 x 8 mm) Hexagon Head Bush, NPT, 316 SS | PSTB1508
Available

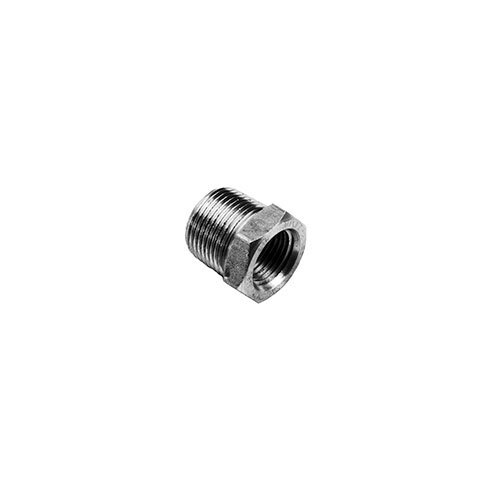

This AAP hexagon head bush is a 316/316L stainless steel forged fitting with NPT thread. It is supplied in 9 sizes, 1/2 x 1/4 in (15 x 8 mm) to 2 x 1-1/2 in (50 x 40 mm).
A bush reduces a threaded port from a larger size to a smaller one. The size is given as the larger thread first, then the smaller, for example 1/2 x 1/4. A threaded bush is normally male on the outside and female on the inside, and this one has a hexagon head for a spanner. AAP does not state the thread gender, so confirm it with AIMS if it matters. A is its length and B is the width of the hexagon head, as lettered on the AAP drawing.
AAP rates its stainless steel high pressure fittings at 3000 lb (manufacturer-stated) and lists them as 316/316L stainless steel to ASTM A182. AAP does not say which material its pressure and temperature chart covers, so AIMS does not quote it for stainless steel. Confirm the pressure rating at your operating temperature with AIMS before you order.
Where this product is used
- High pressure stainless steel pipework, as listed by AAP for the 3000 lb range
- Reducing a female threaded port to a smaller thread
- Stainless steel pipework where a spanner flat is needed to tighten the bush
Features
- 9 sizes, 1/2 x 1/4 in (15 x 8 mm) to 2 x 1-1/2 in (50 x 40 mm)
- 316/316L stainless steel, ASME B16.11-2009 (manufacturer-stated)
- 3000 lb rating (manufacturer-stated)
- NPT
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Hexagon head bush, 316/316L stainless steel forged |
| Thread | NPT taper threads to ANSI B1.20.1 (manufacturer-stated) |
| Rating (manufacturer-stated) | 3000 lb, threaded end |
| Applicable standard (manufacturer-stated) | ASME B16.11-2009 |
| Material | 316/316L stainless steel forging (AAP lists ASTM A182, manufacturer-stated) |
| Marking (manufacturer-stated) | Sizes 3/8 in and under: brand only. 1/2 in to 4 in: brand, material, heat number, B16, pressure and size |
| Sizes | 1/2 x 1/4 in (15 x 8 mm) to 2 x 1-1/2 in (50 x 40 mm) (9 sizes) |
Options and part numbers
| Size | Part number | Length A (mm) | Hex width B (mm) | Weight (kg) |
|---|---|---|---|---|
| 1/2 x 1/4 in (15 x 8 mm) | PSTB1508 | 19 | 22 | 0.05 |
| 1/2 x 3/8 in (15 x 10 mm) | PSTB1510 | 19 | 22 | 0.03 |
| 3/4 x 1/4 in (20 x 8 mm) | PSTB2008 | 22 | 27 | 0.1 |
| 3/4 x 1/2 in (20 x 15 mm) | PSTB2015 | 22 | 27 | 0.06 |
| 1 x 1/2 in (25 x 15 mm) | PSTB2515 | 25 | 35 | 0.15 |
| 1 x 3/4 in (25 x 20 mm) | PSTB2520 | 25 | 35 | 0.11 |
| 1-1/2 x 1 in (40 x 25 mm) | PSTB4025 | 29 | 50 | 0.33 |
| 2 x 1 in (50 x 25 mm) | PSTB5025 | 31 | 65 | 0.7 |
| 2 x 1-1/2 in (50 x 40 mm) | PSTB5040 | 31 | 65 | 0.43 |

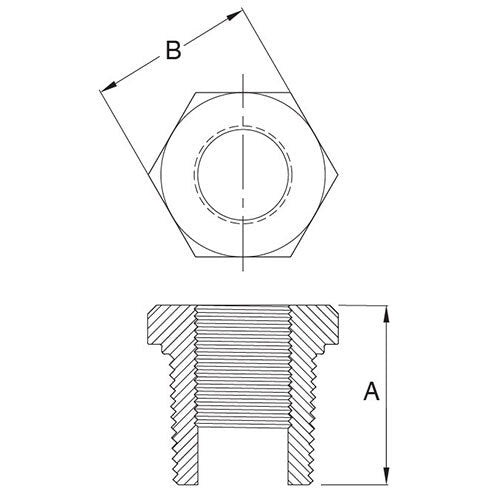

A is the length and B the width of the hexagon head, as lettered on the AAP drawing, in millimetres.
Selecting the right option
Choose the size and thread to match your pipework (NPT or BSPT cannot be mixed), and check the thread gender at each end against the fitting it joins. Sizes are listed as the larger thread first, then the smaller.
Related products
See also AAP 3000lb 316 Stainless Hexagon Plug, NPT, AAP 3000lb 316 Stainless Hexagon Nipple, NPT, AAP 3000lb 316 Stainless Threaded Coupling, NPT and AAP 3000lb 316 Stainless 90 Degree Threaded Elbow, NPT.
