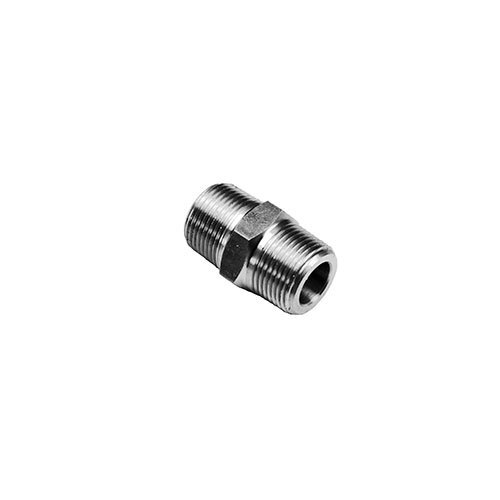

AAP 1/4", 8 mm High Pressure Hexagon | AIMS Industrial

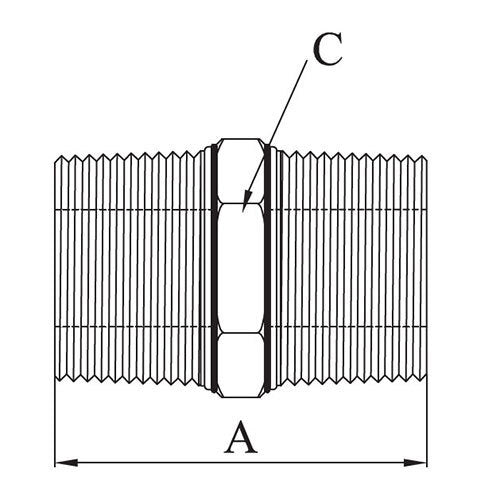

AAP Hexagon Nipple - NPT Stainless 316

(High-Pressure Fittings)

• Rating:Threaded End 3000lbs
• Standards:
• ANSI B16.11 (2009) - Forged Steel Fittings, Socket - Welding and Threaded
• ASTM A182/A182M-12a - Standard specification for Forged or Rolled Alloy and Stainless Steel Forged Fittings
• Threads:ANSI B1.20.1 American National Standard Taper Thread (NPT)
• Marking:
• Carbon and Alloy Steel Market by Stamping
• 3/8" and under: Brand only
• 1/2" to 4": marked brand, material, heat number, B16 (to state that its an ANSI B16 product), pressure and size
