AAP 3000lb Hexagon Plug, 1/8"
Available

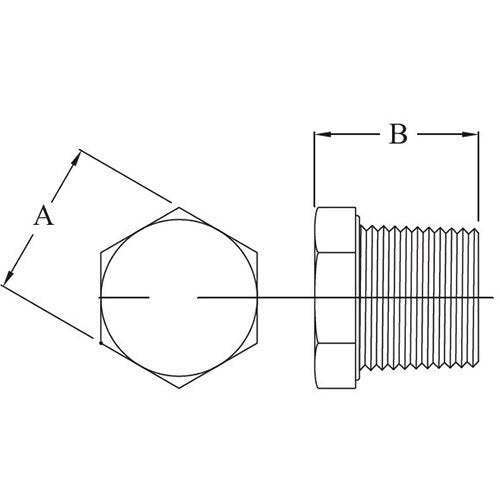

This AAP hexagon plug is a forged carbon steel fitting with BSPT thread and a black finish. It is supplied in 10 sizes, 1/8" (6mm) to 4" (100mm). A plug closes a female threaded port or the open end of a fitting. It is threaded on the outside and has a hexagon head for a spanner. A is the width of the hexagon head and B is the length.
The threaded high pressure fittings are rated at 3000 lb. Standards for the range include ASTM A105 carbon steel forgings.
Where this product is used
- High pressure threaded pipework in carbon steel
- Closing an unused female threaded port
- Blanking off the end of a threaded fitting
Features
- 10 sizes, 1/8" (6mm) to 4" (100mm)
- 3000 lb forged carbon steel, ASME B16.11-2009
- BSPT, black
- Thread: BSPT taper threads to AS 1722.1 / ISO 7
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Hexagon plug, forged carbon steel |
| Thread | BSPT taper threads to AS 1722.1 / ISO 7 |
| Finish | Black |
| Rating | 3000 lb, threaded end |
| Applicable standard | ASME B16.11-2009 |
| Material | Carbon steel forging (ASTM A105) |
| Marking | Sizes 3/8" and under: brand only. 1/2" to 4": brand, material, heat number, B16, pressure and size |
| Sizes | 1/8" (6mm) to 4" (100mm) (10 sizes) |
Choosing the right option
Choose the size and thread to match your pipework (NPT or BSPT cannot be mixed), and check the thread gender at each end against the fitting it joins.
Related AAP products: AAP 3000lb Hexagon Head Bush, BSPT, Black, AAP 3000lb Hexagon Nipple, BSPT, Black, AAP 3000lb Reducing Hexagon Nipple, BSPT, Black, AAP 3000lb 90 Degree Male-Female Threaded Elbow, NPT, Black.
| Option | Part number | SKU |
|---|---|---|
| 1/8" | PP06B | A0079620 |
| 1/4" | PP08B | A0079621 |
| 1/2" | PP15B | A0079623 |
| 1" | PP25B | A0079625 |
| 1-1/4" | PP32B | A0079626 |
| 1-1/2" | PP40B | A0079627 |
| 2" | PP50B | A0079628 |
| 3/8" | PP10B | A0079622 |
| 3/4" | PP20B | A0079624 |
| 4" | PP94 | A0079613 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP 3000lb Hexagon Plug, BSPT, Black: 1/8"
SKU: A0079620 | Model: PP06B
AAP PP06B: AAP 3000lb Hexagon Plug, 1/8". Pipe Size (inch): 1/8. Pipe Size (mm): 6. Hex Head Width Flat (A): 11.
