AAP Galvanised Steel Hexagon Plug, 1-1/2"
Available

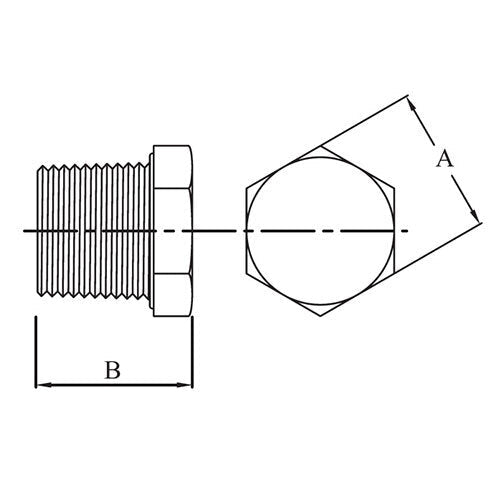

This AAP galvanised hexagon plug is a mild steel fitting with BSP threads. It is supplied in 12 sizes, 1/8" (6mm) to 4" (100mm). A plug closes a female threaded port. This one is threaded on the outside (male) and has a hexagon head for a spanner. A is the hexagon across flats and B the length.
It is made to BS EN 10241:2000, as a steel threaded pipe fitting. It is galvanised. All sizes other than unions are sample tested to 5.2 MPa. These are test pressures, not working pressures.
Where this product is used
- Closing an unused female threaded port
- Blanking off the end of a threaded fitting
- General threaded steel pipework
Features
- 12 sizes, 1/8" (6mm) to 4" (100mm)
- Mild steel, galvanised, BS EN 10241:2000
- BSP threads
- Thread: BSP (British Standard Pipe) thread, ISO 7 and AS 1722 Part 1
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Galvanised hexagon plug, mild steel |
| Finish | Galvanised |
| Thread | BSP (British Standard Pipe) thread, ISO 7 and AS 1722 Part 1 |
| Ends | Male (external) thread, hexagon head |
| Applicable standard | BS EN 10241:2000, steel threaded pipe fittings |
| Test pressure | Sample tested to 5.2 MPa |
| Sizes | 1/8" (6mm) to 4" (100mm) (12 sizes) |
Choosing the right option
Choose the size to match your pipework. These fittings are BSP threaded, so check that your pipe or fitting is BSP and not NPT before you order.
Related AAP products: AAP Galvanised Steel Square Head Plug, AAP Galvanised Steel Cap, AAP Galvanised Steel Hexagon Bush, AAP Galvanised Steel Socket, Heavy Type.
| Option | Part number | SKU |
|---|---|---|
| 1/8" | SP06G | A0076140 |
| 1/4" | SP08G | A0076141 |
| 1/2" | SP15G | A0076143 |
| 1" | SP25G | A0076145 |
| 1-1/4" | SP32G | A0076146 |
| 1-1/2" | SP40G | A0076147 |
| 2" | SP50G | A0076148 |
| 2-1/2" | SP65G | A0076149 |
| 3/8" | SP10G | A0076142 |
| 3/4" | SP20G | A0076144 |
| 3" | SP80G | A0076150 |
| 4" | SP94G | A0076151 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP Galvanised Steel Hexagon Plug: 1-1/2"
SKU: A0076147 | Model: SP40G
AAP SP40G: AAP Galvanised Steel Hexagon Plug, 1-1/2". Pipe Size (inch): 1-1/2. Pipe Size (mm): 40. Across Flats (A): 52.1.
