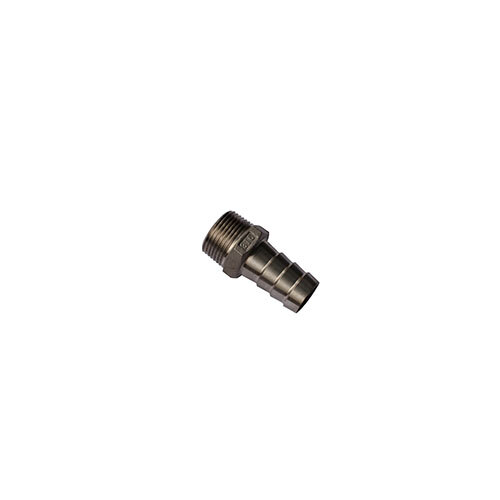

AAP 316 Stainless Steel Hose Nipple, 1/4"
Available

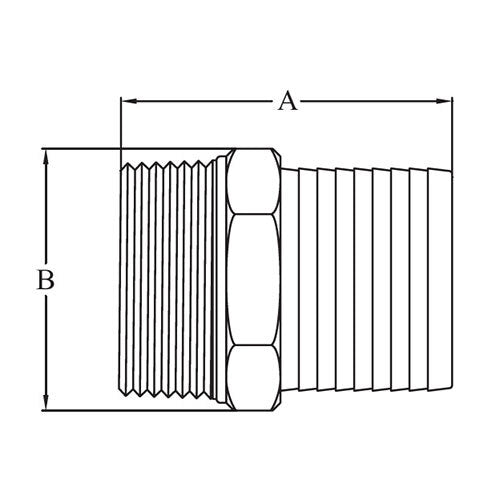

This AAP hose nipple is grade 316 stainless steel with BSP threads. It is supplied in 17 sizes, 1/4" (8mm) to 4" (100mm). A hose nipple has a threaded end and a barbed tail so a hose can be clamped to a threaded port. A is the overall length and B is the width of the body.
The 150 lb stainless steel fittings are made from grade 316 stainless steel. 150 lb refers to a maximum working pressure and temperature of 150 psi saturated steam, about 1,034 kPa.
Where this product is used
- Marine, pumping, commercial, chemical and irrigation pipework in stainless steel
- Connecting a hose to a threaded stainless steel port
- Transfer and wash down lines where a hose tail is needed
Features
- 17 sizes, 1/4" (8mm) to 4" (100mm)
- Grade 316 stainless steel, 150 lb class
- Applicable standards include AS 1722.2 and ISO 4144
- Type: Hose nipple, thread and hose tail
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Hose nipple, grade 316 stainless steel |
| Type | Hose nipple, thread and hose tail |
| Material | Grade 316 stainless steel (316/316L composition) |
| Class | 150 lb (150 psi saturated steam) |
| Applicable standards | AS 1722.2, ISO 4144, ASTM A351, ASTM A182 |
| Mechanical properties | Tensile strength min 70,000 psi (483 MPa), yield strength min 25,000 psi (172 MPa), elongation min 35 per cent |
| Sizes | 1/4" (8mm) to 4" (100mm) (17 sizes) |
Choosing the right option
Choose the size to match your pipe thread and hose.
Related AAP products: AAP 316 Stainless Steel Hex Nipple, BSP Threaded, AAP 316 Stainless Steel Barrel Nipple, BSP Threaded, AAP 316 Stainless Steel Coupling, BSP Threaded, AAP 316 Stainless Steel 90 Degree Elbow, Male x Female, BSP Threaded.
| Option | Part number | SKU |
|---|---|---|
| 1/4" | SSHN08 | A0076399 |
| 1/2" | SSHN15 | A0076402 |
| 1/2" x 3/8" | SSHN1510 | A0076403 |
| 1/2" x 3/4" | SSHN1520 | A0076404 |
| 1" | SSHN25 | A0076408 |
| 1" x 3/4" | SSHN2520 | A0076409 |
| 1-1/4" | SSHN32 | A0076410 |
| 1-1/2" | SSHN40 | A0076411 |
| 2" | SSHN50 | A0076412 |
| 2-1/2" | SSHN65 | A0076413 |
| 3/8" | SSHN10 | A0076400 |
| 3/8" x 1/2" | SSHN1015 | A0076401 |
| 3/4" | SSHN20 | A0076405 |
| 3/4" x 1/2" | SSHN2015 | A0076406 |
| 3/4" x 1" | SSHN2025 | A0076407 |
| 3" | SSHN80 | A0076414 |
| 4" | SSHN100 | A0076415 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP 316 Stainless Steel Hose Nipple, BSP Threaded: 1/4"
SKU: A0076399 | Model: SSHN08
AAP SSHN08: AAP 316 Stainless Steel Hose Nipple, 1/4". Pipe Size (inch): 1/4. Pipe Size (mm): 8. Length (A): 43.
