AAP Insertion Gasket - Compressed Fiber Table-E1

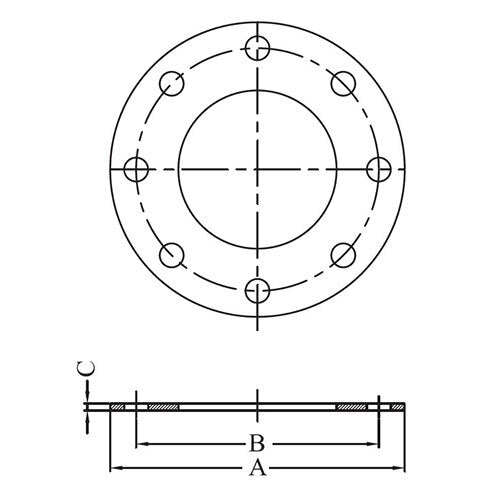

AAP Insertion Gasket - Compressed Fiber Table-E2

AAP 1/2" x 95mm Fiber Gasket Table-E LGE15

AAP 3/4" x 102mm Fiber Gasket Table-E LGE20

AAP 1" x 114mm Fiber Gasket Table-E LGE25

AAP 1-1/4" x 121mm Fiber Gasket Table-E LGE32

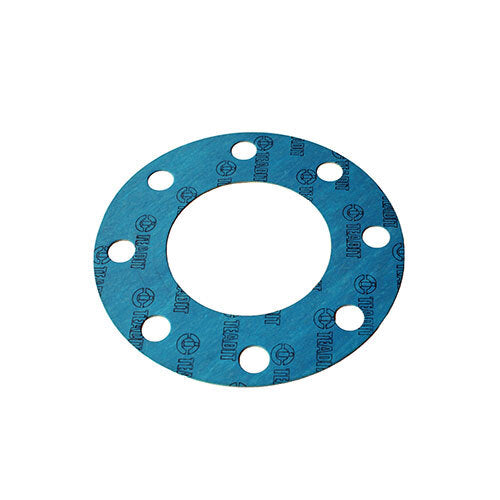

AAP 1-1/2" x 133mm Fiber Gasket Table-E LGE40

AAP 2" x 152mm Fiber Gasket Table-E LGE50

AAP 2-1/2" x 165mm Fiber Gasket Table-E LGE65

AAP 3" x 184mm Fiber Gasket Table-E LGE80

AAP 4" x 216mm Fiber Gasket Table-E LGE94

AAP 5" x 254mm Fiber Gasket Table-E LGE95

AAP 6" x 279mm Fiber Gasket Table-E LGE96

AAP 8" x 337mm Fiber Gasket Table-E LGE98

AAP 10" x 406mm Fiber Gasket Table-E LGEX25

AAP 12" x 457mm Fiber Gasket Table-E LGEX30

Description +

***Size 8" x 337mm has a lead time 3-4 Weeks. Contact AIMS for assistance***

Fiber Gaskets

AAP supplies compressed ffibregaskets made from Aramid fibres, bonded with Nitrile Rubber (NBR).
It is manufactured by means of a hot calendar process under rigorous quality control standards that are registered under ISO 9001 certifcation.

Working Conditions

Peak Temperature - + 400°C
Constant Temperature - + 240°C
Peak Pressure - up to 11000 kPa
Constant Working Pressure - 5000 kPa

Application +

Applications:

Air, Water, Low-pressure steam, petroleum derivatives, oil, gas, and general chemical products.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

AAP Insertion Gasket - Compressed Fiber Table-E

SKU: A0081512

Type: Fiber Gasket

$2.45

Inc. GST

Available

The AAP Insertion Gasket by AAP is a Fiber Gasket made from compressed Aramid fibres bonded with Nitrile Rubber (NBR) and manufactured by a hot calendar process under ISO 9001. It provides peak pressure up to 11000 kPa and is suitable for general chemical products.
