AAP Insertion Gasket - Compressed Fiber Ring1

AAP Insertion Gasket - Compressed Fiber Ring2

AAP 1/2" x 48mm Fiber Ring Gasket Class 150 LGR15

AAP 3/4" x 57mm Fiber Ring Gasket Class 150 LGR20

AAP 1" x 67mm Fiber Ring Gasket Class 150 LGR25

AAP 1-1/4" x 77mm Fiber Ring Gasket Class 150 LGR32

AAP 1-1/2" x 85mm Fiber Ring Gasket Class 150 LGR40

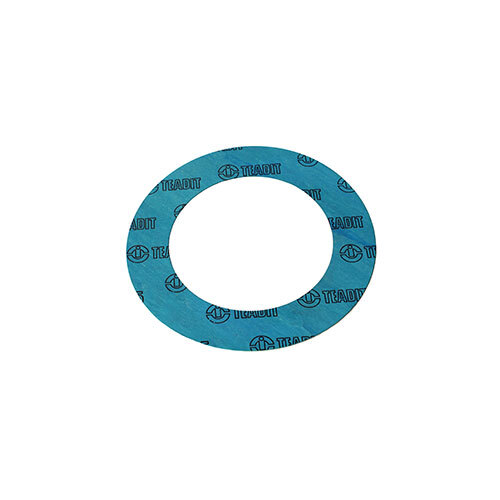

AAP 2" x 104mm Fiber Ring Gasket Class 150 LGR50

AAP 2-1/2" x 125mm Fiber Ring Gasket Class 150 LGR65

AAP 3" x 136mm Fiber Ring Gasket Class 150 LGR80

AAP 4" x 173mm Fiber Ring Gasket Class 150 LGR94

AAP 5" x 188mm Fiber Ring Gasket Class 150 LGR95

AAP 6" x 220mm Fiber Ring Gasket Class 150 LGR96

AAP 8" x 277mm Fiber Ring Gasket Class 150 LGR98

AAP 10" x 340mm Fiber Ring Gasket Class 150 LGRX25

AAP 12" x 410mm Fiber Ring Gasket Class 150 LGRX30

Description +

Fiber Gaskets

AAP supplies compressed ffibregaskets made from Aramid fibres, bonded with Nitrile Rubber (NBR). It is manufactured by means of a hot calendar process under rigorous quality control standards that are registered under ISO 9001 certi?cation.

Working Conditions

Peak Temperature - + 400°C
Constant Temperature - + 240°C
Peak Pressure - up to 11000 kPa
Constant Working Pressure - 5000 kPa

Applications:

Air, Water, Low-pressure steam, petroleum derivatives, oil, gas, and general chemical products

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

AAP Insertion Gasket - Compressed Fiber Ring

SKU: A0081541

Type: Fiber Ring Gasket

$1.47

Inc. GST

Available

The AAP Insertion Gasket by AAP is a Fiber Ring Gasket made from Aramid fibres bonded with Nitrile Rubber (NBR), manufactured by a hot calendar process. It provides a peak pressure of up to 11000 kPa and is suitable for Pipes, Tubes & Fittings.

Buy Now

FREE SHIPPING OVER $299*
RETURN AND EXCHANGE POLICY

Resources

AAP-S5-Gaskets
