1 in (25 mm) Spiral Wound Gasket, Class 150 | LGSW15025
Available

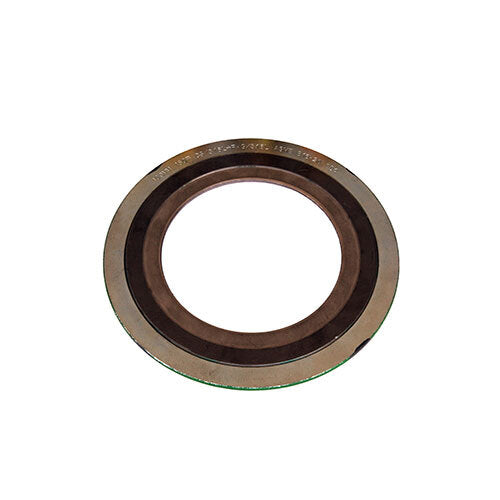

This AAP spiral wound gasket is made for Class 150 flanges (manufacturer-stated) and is supplied in 6 sizes from 1 in (25 mm) to 6 in (150 mm).
AAP describes spiral wound gaskets as a preformed metallic strip and a softer filler material, wound together under pressure, optionally with an outer guide ring. The metal strip holds the filler, which gives excellent mechanical resistance, resilience and recovery.
The stock configuration is an SS316 spiral with graphite filler, and AAP gives a maximum working temperature of 450 °C because graphite is the filler. Other material and class combinations are available on request.
Where this product is used
- Class 150 flanged joints in higher-temperature pipework
- Process plant and higher-temperature lines where a soft gasket is not suitable
- Joints that see pressure and temperature cycling
- Flanged connections on valves, pumps and vessels
Features
- 6 sizes from 1 in (25 mm) to 6 in (150 mm)
- Made for Class 150 flanges (manufacturer-stated)
- Stock configuration: SS316 spiral with graphite filler
- Maximum working temperature 450 °C, per the manufacturer
- Other materials and classes available on request
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Gasket type | Spiral wound gasket |
| Standard (manufacturer-stated) | Class 150 |
| Material (stock configuration) | SS316 spiral with graphite filler |
| Construction | Preformed metallic strip wound with a softer filler, optional outer guide ring |
| Maximum working temperature | 450 °C (graphite filler) |
| Other configurations | Other material and class combinations available on request |
| Sizes | 1 in (25 mm) to 6 in (150 mm) (6 sizes) |
| Thickness | 3 mm to 4.85 mm |
Options and part numbers

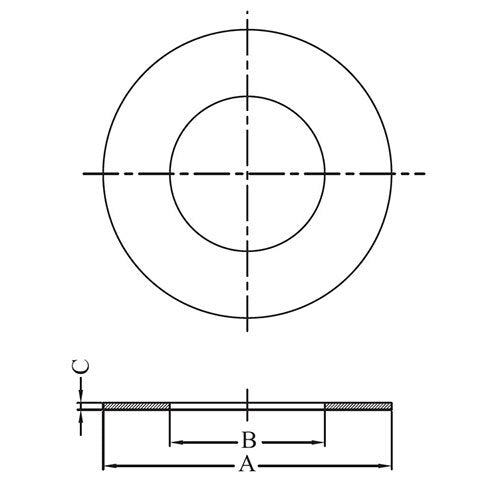

| Size | Part number | OD A (mm) | ID B (mm) | Thickness C (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 1 in (25 mm) | LGSW15025 | 66.5 | 32.5 | 3 | 0.06 |
| 1-1/2 in (40 mm) | LGSW15040 | 86 | 54.5 | 3 | 0.07 |
| 2 in (50 mm) | LGSW15050 | 105 | 70 | 3 | 0.1 |
| 3 in (80 mm) | LGSW15080 | 136 | 101 | 3 | 0.12 |
| 4 in (100 mm) | LGSW15094 | 174 | 106 | 3 | - |
| 6 in (150 mm) | LGSW15096 | 220 | 182 | 4.85 | 0.23 |
Selecting the right option
AAP's catalogue does not give a pressure rating for these gaskets, and does not say which stock sizes include an outer guide ring, so contact AIMS if you need either. The 6 in size is 4.85 mm thick and the other sizes are 3 mm, so check the flange face and the compression you are designing for. The 4 in dimensions are out of line with the neighbouring sizes, so confirm them with AIMS before ordering. For a different winding, filler or class, contact AIMS.
Related products
See also AAP Fibre Ring Gasket, Class 150, AAP Compressed Fibre Gasket, Table E, AAP Weld Neck Flange, ANSI B16.5 Class 150 and AAP Slip-On Weld Flange, ANSI B16.5 Class 150.
