AAP loose flanged 45° elbow, 3"

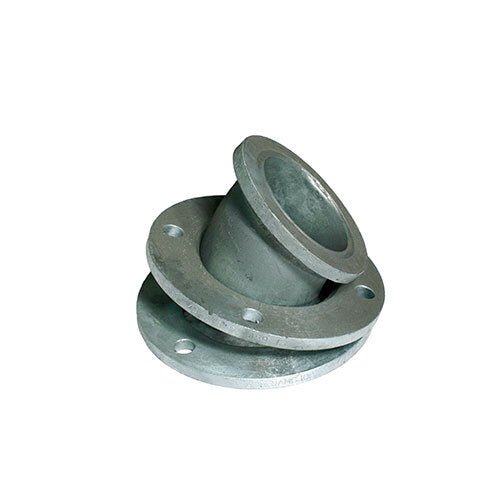

This AAP galvanised loose flanged 45° elbow has a Table D flange on each end and turns a line through 45°. It is supplied in 5 sizes from 3" (80mm) to 8" (200mm). The flanges are loose (not fixed to the elbow), so the flange can be turned to line up the bolt holes with the mating flange. It is general purpose (SGP), in its galvanised flanged irrigation range, with a wall thickness of 4.2mm (3") to 5.8mm (8").

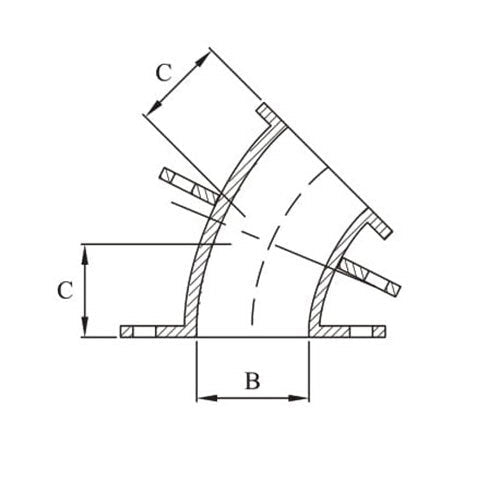

Dimension B is the bore of the fitting, which works out from the wall thickness, and C is the distance from the centre to the face of the flange.

Where this product is used

• Changing direction in flanged irrigation and water lines
• Pump station and manifold pipework
• Connecting flanged pumps, valves and tanks to a pipeline
• Dewatering and process water lines

Features

• 5 sizes from 3" (80mm) to 8" (200mm)
• Table D flange on each end
• Galvanised steel construction, general purpose (SGP)
• Wall thickness 4.2mm (3") to 5.8mm (8")
• Loose flanges, fastener from M16 x 60 to M16 x 65

Key specifications

Choosing the right option

Choose the weight to suit the wall thickness your pipework needs: this elbow comes in both SGP and STD weight, and STD is the heavier wall.
