AAP 3" Fixed Flanged 90° Elbow Type-D (SGP) Galvanised IEF90-80

AAP 4" Fixed Flanged 90° Elbow Type-D (SGP) Galvanised IEF90-100

AAP 5" Fixed Flanged 90° Elbow Type-D (SGP) Galvanised IEF90-125

AAP 6" Fixed Flanged 90° Elbow Type-D (SGP) Galvanised IEF90-150

AAP 8" Fixed Flanged 90° Elbow Type-D (SGP) Galvanised IEF90-200

Description

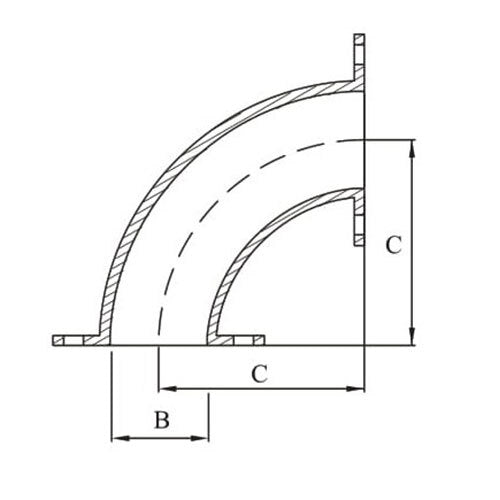

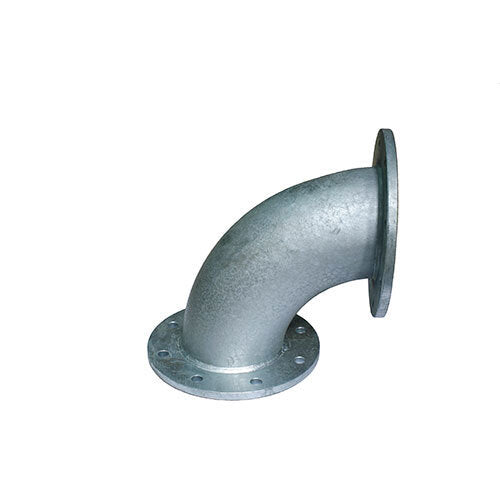

AAP Fixed flange 90deg Elbow SGP

Galvanised flanged Irrigation Fittings
WALL THICKNESS FOR Fittings
3" - 80mm
4" - 100mm
5" - 125mm
6" - 150mm
8" - 200mm
10" - 250mm
12" - 300mm
14" - 350mm
16" - 400mm
18" - 450mm
GENERAL PURPOSE - SGP
4.2mm
4.5mm
4.5mm
5.0mm
5.8mm
-
-
-
-
-
HEAVY DUTY - STD WGT
5.5mm
6.0mm
6.5mm
7.1mm
8.1mm
9.3mm
9.5mm
9.5mm
9.5mm
9.5mm
flange - TAB D
12mm
12mm
13mm
13mm
13mm
16mm
19mm
22mm
22mm
25mm
TABLE D flange BOLTING DETAILS
NUMBER OF HOLES
4
4
8
8
8
8
12
12
12
12
DIAMETER OF BOLT HOLES
18mm
18mm
18mm
18mm
18mm
22mm
22mm
26mm
26mm
26mm
FIXED flange FASTENER SIZE & THREAD
M16 x 45
M16 x 45
M16 x 45
M16 x 45
M16 x 50
M20 x 50
M20 x 50
M24 x 60
M24 x 60
M24 x 75
LOOSE flange FASTENER SIZE & THREAD
M16 x 60
M16 x 60
M16 x 60
M16 x 60
M16 x 65
M20 x 65
M20 x 65
M24 x 80
M24 x 80
M24 x 100

Specifications

Material Specifications

Applications

Features & Benefits

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

AAP Fixed Flange 90deg Elbow SGP

SKU: A0077940

Type: Flanged Elbow

$152.27

Tax included. Shipping calculated at checkout.

Wide Range
Reliable Services
Proven Trust

Available

The AAP Fixed Flange 90deg Elbow SGP by AAP is a galvanised Flanged Elbow suitable for irrigation and ducting installations. It provides 4.2mm wall thickness and is for Flanged Fittings and Pipe Fittings in general purpose applications

Buy Now

FREE SHIPPING OVER $299*
RETURN AND EXCHANGE POLICY

Resources

AAP-S11-Galvanised-Flanged-Fittings
